Apply Adhesive Material To Rear Window - AR67.20-P-3000-05MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3/6, 177, 243, 247
The bonding area must be free of dust and grease.
Otherwise the adhesive force of the adhesive material starts to decrease.
Use only the repair kit specified in the EPC.

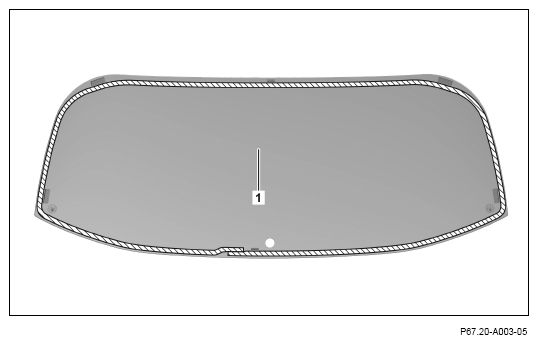

Shown on model 118.6

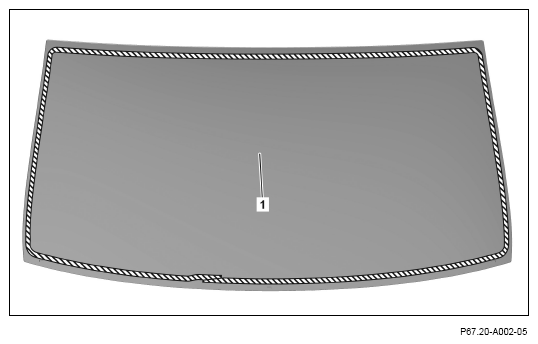

Shown on model 118.3 and 177.1/9

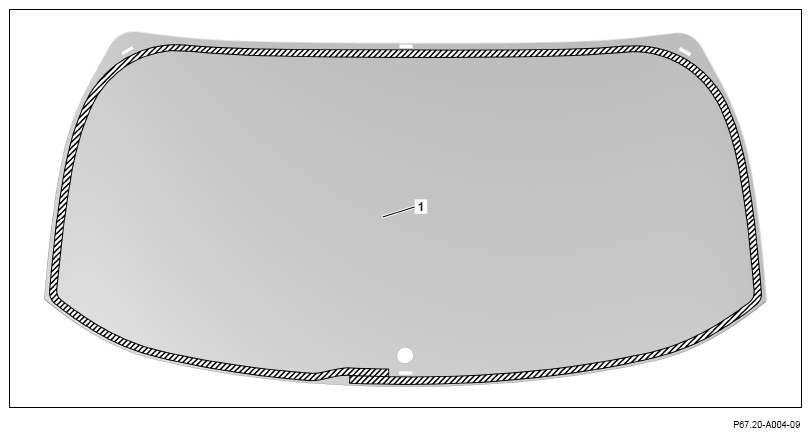

Shown on model 177.0

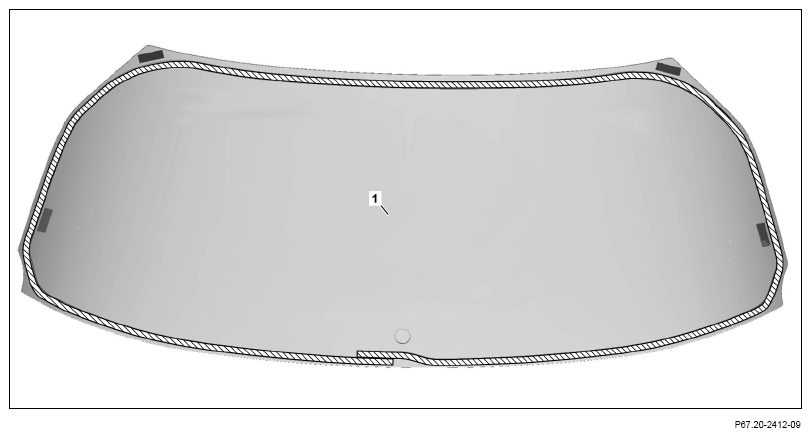

Shown on models 247.0 and 243
- Guide application nozzle (13 mm) along the rear window (1) and in doing so apply adhesive material evenly along the markings (hatched area).
Install rear window (1) within 10 min of applying the adhesive material.
Otherwise the adhesive force of the adhesive material starts to decrease.
The height of the adhesive bead must be approx 13 mm.
- Completely press out and dispose of adhesive material that is not needed.
Use
adapter to completely press out 1-component adhesive Insert it between the cartridge piston and the plate on the push rod of the squeeze gun.
