Remove/Install Front Door Side Window - AR67.30-P-0008MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3/6
| Risk of injury from contusions to hands if window glass is not secured | Secure window to prevent it from falling down. | AS67.00-Z-0002-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||

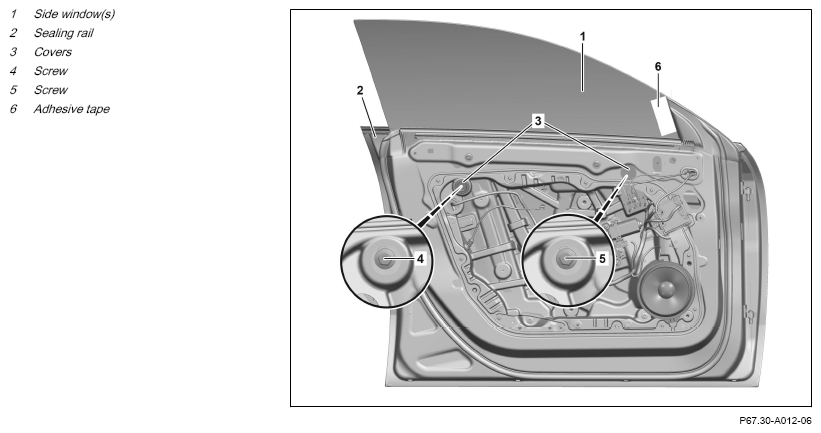

| 1 | Affix tape (6), as shown, so that it is flush with the sealing rail (2) on the side window (1). | If the side window (1) is reused. | |
| 2 | Remove sealing rail (2). | AR72.10-P-1610MFC | |
| 3 | Remove covers (3). | ||
| 4 | Raise side window (1) to topmost position so that screws (4, 5) can be accessed through access openings. | ||
| 5 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 6 | Release electrical connectors from the front door control unit and remove door trim. | ||
| 7 | Unscrew bolt (4). | ||
| 8 | Loosen bolt (5). | ||
| 9 | Remove side window (1) from front door. | ||

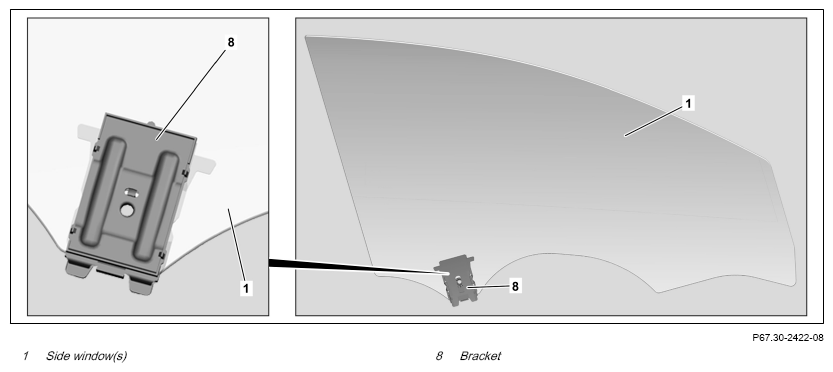

| 10 | Unclip bracket (8) at side window (1) and remove. | When replacing side window (1). | |
| Install | |||
| 11 | Attach bracket (8) to side window (1). | When replacing side window (1). | |
| 12 | Insert side window (1) into window channel. | ||
| 13 | Tighten screws (4, 5) slightly by hand. | ||
| 14 | Install sealing rail (2). | AR72.10-P-1610MFC | |
| 15 | Push side window (1) forward until the tape (6) is flush with the sealing rail (2) as shown. | If the side window (1) is reused. | |
| 16 | Adjust side window (1). | AR67.30-P-0100MFC | |
| 17 | Remove tape (6). | If the side window (1) is reused. |
