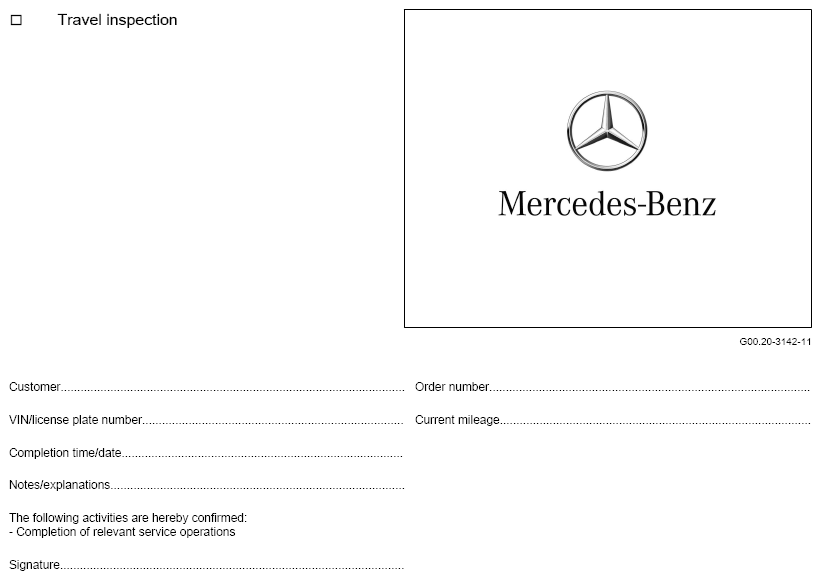

Travel Inspection - AP00.20-P-0080A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 463

Courtesy of MERCEDES-BENZ USA

T Completed [X]		Input condition not OK:	ⓧ

	Brake system
□	Perform brake test and enter result in table.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 463	◦
		Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of model year 2019		AP42.00-P-4290BA
		Model 243		AP42.00-P-4290EQ
		Model 463 up to model year 2019		AP42.00-P-4290G
□	Vehicle exterior Check condition of vehicle exterior.		◦	AP60.00-P-6048U
□	Check condition of windshield.		◦	AP67.10-P-6750A
□	Check condition of wiper blades.		◦	AP82.30-P-8253G
□	Check exterior lighting for proper operation.		◦
	Battery
□	Check condition of battery.	Only on customer request. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293, 463 After obtaining special order.	◦	AP54.10-P-5449U
	Vehicle interior
□	Check windshield wipers, windshield washer system and, if necessary, headlamp cleaning system for proper operation.		◦	AP82.30-P-8249U
	Engine compartment
□	Check all visible parts in engine compartment for damage and leaks.	Model 117, 156, 169, 176, 242, 245, 246	◦	AP00.20-P-0055AK
		Model 118, 177, 247		AP00.20-P-0055I
		Model 164, 171, 172, 197.3/4, 203, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 231, 251		AP00.20-P-0055EW
		Model 166, 292		AP00.20-P-0055D
		Model 167		AP00.20-P-0055H
		Model 190		AP00.20-P-0055B
		Model 205		AP00.20-P-0055C
		Model 213, 238, 253 (except 253.99), 257, 290		AP00.20-P-0055E
		Model 217, 222		AP00.20-P-0055A
		Model 243		AP00.20-P-0055M
		Model 253.99		AP00.20-P-0055G
		Model 293		AP00.20-P-0055J
		Model 463 up to model year 2019		AP00.20-P-0055F
		Model 463 as of model year 2019		AP00.20-P-0055GA
□	Check engine oil level.	Engine 111, 112, 113, 133, 139, 152, 156, 157, 159, 176, 177, 178, 254, 256, 260, 264, 266, 270, 271, 272, 273, 274, 275, 276, 277, 278, 279, 282, 607, 608, 611, 612, 626, 628, 629, 640, 642, 646, 647, 648, 651, 654, 656	◦	AP18.00-P-1848U
□	Check main circuit coolant level in expansion reservoir.		◦	AP20.30-P-2049U
□	Brake system: Check fluid level.		◦	AP42.10-P-4247U
□	Windshield washer system: Check/correct fluid level.
		When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.		AP82.35-P-8249U
	Underside of vehicle
_□	Check condition of vehicle underside.		◦	AP60.00-P-6049U
	Tires
□	Correct tire pressure and enter set tire pressure in table.	Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of model year 2019	◦	AP40.15-P-4061A
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
		Model 243		AP40.15-P-4061EQ
		Model 463 up to model year 2019		AP40.15-P-4060G
	Trunk
□	Check/correct tire pressure spare wheel and enter set tire pressure into table.	Vehicle with spare wheel. Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of model year 2019	◦	AP40.15-P-4061A
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
		Model 243		AP40.15-P-4061EQ
		Model 463 up to model year 2019		AP40.15-P-4060G
	Check TIREFIT tire sealant.	Vehicle with TIREFIT. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 with code LQ0 (G650 Landaulet) Model 463 with code MUK2 (USA or Canada vehicle model designation) Model 463 with code ZQ0 (G 50 0 4x4² ) Enter expiration date here: Replace TIREFIT, invoice as additional operation.	◦	AP40.10-P-4054R

BRAKE VALUES

	Left	Right
Front
Rear
Parking brake

SET TIRE PRESSURE IN KPA OR PSI (100 KPA = 1 BAR)

	Front axle	Rear axle	Spare tire
kPa/psi
