Check Windshield For Damage - AP67.10-P-6750A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model All (4xWD)
Model All (CAR)
Model All (smart)

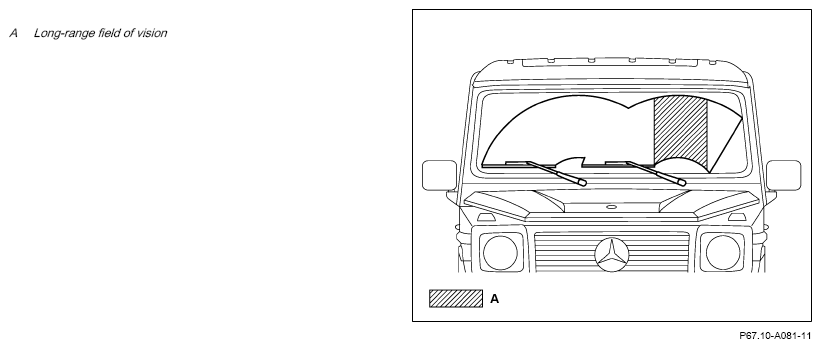

Field of view for single-arm wiper, example shown on model 210

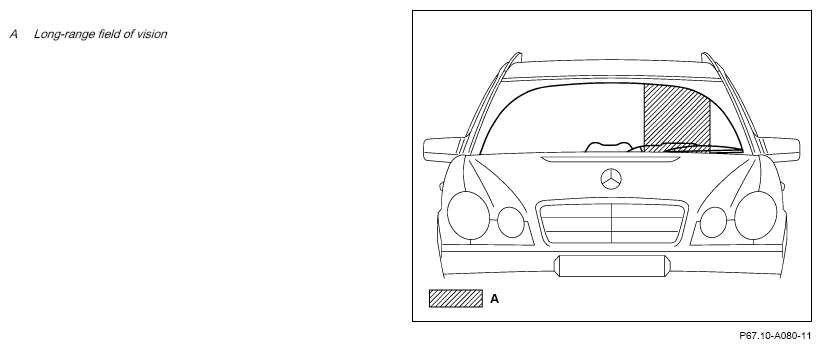

Field of view for two-arm wiper, example shown on model 463

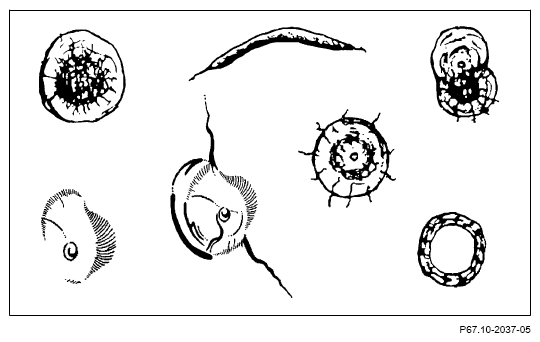

Examples of damages
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes Model all (4xWD) Model all (CAR) |
AS00.00-Z-0024-01A | |
| Notice | Notes on avoiding damage to windows installed in special high-security vehicles | Model 166 with code Z04 (Light armoring) Model 166 with code Z05 (B5 armoring on special protection version) Model 210 with code Z04 (Light armoring) with code Z06 (B6 armoring) Model 211 with code Z04 (Light armoring) Model 212 with code Z04 (Light armoring) Model 220 with code Z04 (Light armoring) with code Z07 (B7 armoring on special protection version) Model 221.1 with code Z07 (B7 armoring on special protection version) Model 222, 223 with code Z07 (B7 armoring on special protection version) Model 461 with code ZS4 (Special protection version FB4) with code ZS6 (Special protection version FB6) with code ZS7 (Special protection version FB7) Model 463 with code 979 (Special protection MB Guard) with code ZS4 (Special protection version FB4) Model 463 with code 979 (Special protection MB Guard) with code ZS6 (Special protection version FB6) Model 463 with code 979 (Special protection MB Guard) with code ZS7 (Special protection version FB7) Model 463 with code ZS8 (Protection class VR7/glass area VR9) |
AH67.00-P-0003-01FB |
| Notes on damage and stone chipping repairs on laminated glass windows | AH67.10-P-0003-01A | ||
| Check | |||
| 1 | Switch electronic ignition lock control unit to position "0". | ||
| 2 | Check inside of windshield for damage. | If problems are determined, ↓ Replace windshield. |
|
| 3 | Check film peels off glass panes in windshield. | If problems are determined, ↓ Replace windshield. |
|
| 4 | Check windshield outside long-range field of vision (A) for damage and visibility-impairing scratches. | If problems are determined, ↓ Replace windshield. |
|
| 5 | Check windshield outside long-range field of vision (A) for damage. | If damage is found with a diameter of < 26 mm (1.02 inches) and at a distance of > 100 mm (3.94 inches) from the edge of the windshield, ↓ repair windshield. If damage is found with a diameter of ≥ 26 mm (1.02 inches) or at a distance of ≤ 100 mm (3.94 inches) from the edge of the windshield, ↓ replace windshield. |
