Check Condition Of Battery - AR54.10-P-1129V

Model 171, 172

MODIFICATION NOTES

10.05.2019 Battery capacity 70 Ah VRLA/AGM   BE54.10-P-1010-01A

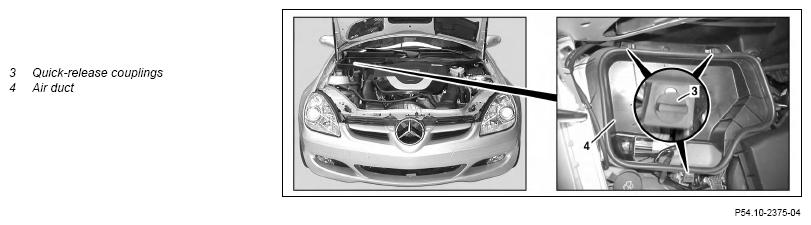

Shown on model 171

G13847682Courtesy of MERCEDES-BENZ USA
REMOVING Remove
  Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U gt= 30 V AC and U gt= 60 V DC. No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. AS54.10-Z-0001-01A
  Notes on battery   AH54.10-P-0001-01A
1 Open engine hood and move to vertical position   AR88.40-P-1000V
2 Open quick-release fasteners (3) and remove air duct (4)
INSPECT Check
3 Visual inspection of battery or on-board electrical system battery for external leakage IMPORTANT If leakage found Replace battery or onboard electrical system battery, see:
Remove/install battery
    Model 171.4 AR54.10-P-0005V
    Model 172 AR54.10-P-0005W
4.1 Check fluid level of battery or on-board electrical system battery, add distilled water, if necessary Battery or on-board electrical system battery without service fill level indicator.
4.2 Check fluid level of battery or on-board electrical system battery Battery or on-board electrical system battery with service fill level indicator.
IMPORTANT Fluid level indicator via service fill level indicator, if color is white, the acid level is too low: Replace battery or on-board electrical system battery, see:
Remove/install battery or on-board electrical system battery
    Model 171.4 AR54.10-P-0005V
    Model 172 AR54.10-P-0005W
5 Check battery or on-board electrical system battery IMPORTANT Use Midtronics battery tester/test equipment for the test.
IMPORTANT Cold cranking amps as per EN		 AR54.10-P-1129-01A
    IMPORTANTCommercially available devices/tools
Battery tester/test equipment Battery capacity 12 Ah		 *BE54.10-P-1001-01A
    Battery capacity 30 Ah *BE54.10-P-1002-01A
    Battery capacity 35 Ah *BE54.10-P-1003-01A
    Battery capacity 46 Ah *BE54.10-P-1005-01A
    Battery capacity 60 Ah VRLA/AGM *BE54.10-P-1006-01A
    Battery capacity 60 Ah *BE54.10-P-1007-01A
    Battery capacity 62 Ah *BE54.10-P-1009-01A
    Battery capacity 70 Ah VRLA/AGM *BE54.10-P-1010-01A
    Battery capacity 74 Ah *BE54.10-P-1011-01A
    Battery capacity 80 Ah VRLA/AGM *BE54.10-P-1012-01A
    Battery capacity 84 Ah *BE54.10-P-1013-01A
    Battery capacity 90 Ah VRLA *BE54.10-P-1014-01A
    Battery capacity 95 Ah VRLA *BE54.10-P-1015-01A
    Battery capacity 100 Ah *BE54.10-P-1016-01A
6 Reduce increased voltage after charging process On a battery or an on-board electrical system battery that is disconnected from the on-board electrical system and with a "Surface voltage" message in the display of the Midtronics battery tester/test equipment.
IMPORTANT After reducing increased voltage, check battery or on-board electrical system battery again.		 AR54.10-P-1129-03A
7 Charge battery or on-board electrical system battery With test code "Charge and check" of Midtronics battery tester/test equipment.
IMPORTANT Check the battery or on-board electrical system battery again after charging.		 AR54.10-P-1130V
INSTALLING Install
8 Install air duct (4) and close quick-release fasteners (3)
9 Close engine hood   AR88.40-P-1000V
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1001-01A Battery capacity 12 Ah Cold cranking amps As per EN A 170
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1002-01A Battery capacity 30 Ah Battery test at 20°C Acid density kg/dm3 ≥1, 24
Maximum permissible difference between individual battery cells kg/dm3 0, 04
Load current A 90
Load time s 10
Voltage V ≈10
Cold cranking amps As per EN A 540
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1003-01A Battery capacity 35 Ah Battery test at 20°C Acid density kg/dm3 ≥1, 24
Maximum permissible difference between individual battery cells kg/dm3 0, 04
Load current A 100
Load time s 10
Voltage V ≈10
Cold cranking amps As per EN A 520
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1005-01A Battery capacity 46 Ah Battery test at 20°C Acid density kg/dm3 ≥1, 24
Maximum permissible difference between individual battery cells kg/dm3 0, 04
Load current A 140
Load time s 10
Voltage V ≈10
Cold cranking amps As per EN A 420
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1006-01A Battery capacity 60 Ah VRLA/AGM Cold cranking amps As per EN A 660
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1007-01A Battery capacity 60 Ah Cold cranking amps As per EN A 510
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1009-01A Battery capacity 62 Ah Battery test at 20°C Acid density kg/dm3 ≥1, 24
Maximum permissible difference between individual battery cells kg/dm3 0, 04
Load current A 190
Load time s 10
Voltage V ≈10
Cold cranking amps As per EN A 480
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1010-01A Battery capacity 70 Ah VRLA/AGM Cold cranking amps As per EN A 720
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1011-01A Battery capacity 74 Ah Battery test at 20°C Acid density kg/dm3 ≥1, 24
Maximum permissible difference between individual battery cells kg/dm3 0, 04
Load current A 265
Load time s 10
Voltage V ≈10
Cold cranking amps As per EN A 680
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1012-01A Battery capacity 80 Ah VRLA/AGM Cold cranking amps As per EN A 800
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1013-01A Battery capacity 84 Ah Cold cranking amps As per EN A 700
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1014-01A Battery capacity 90 Ah VRLA Cold cranking amps As per EN A 950
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1015-01A Battery capacity 95 Ah VRLA Cold cranking amps As per EN A 850
TEST AND ADJUSTMENT VALUES FOR BATTERY

Number Designation Model all (4xWD, CAR, Smart)
BE54.10-P-1016-01A Battery capacity 100 Ah Battery test at 20°C Acid density kg/dm3 ≥ 1, 24
Maximum permissible difference between individual battery cells kg/dm3 0, 04
Load current A 300
Load time s 10
Voltage V ≈ 10
Cold cranking amps As per EN A 760
