Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997RDM
Model 172.4 as of model year 2017
with code 218 (Rear view camera)
Model 172.4 as of model year 2017
with code 230 (Advanced Parking Guidance)

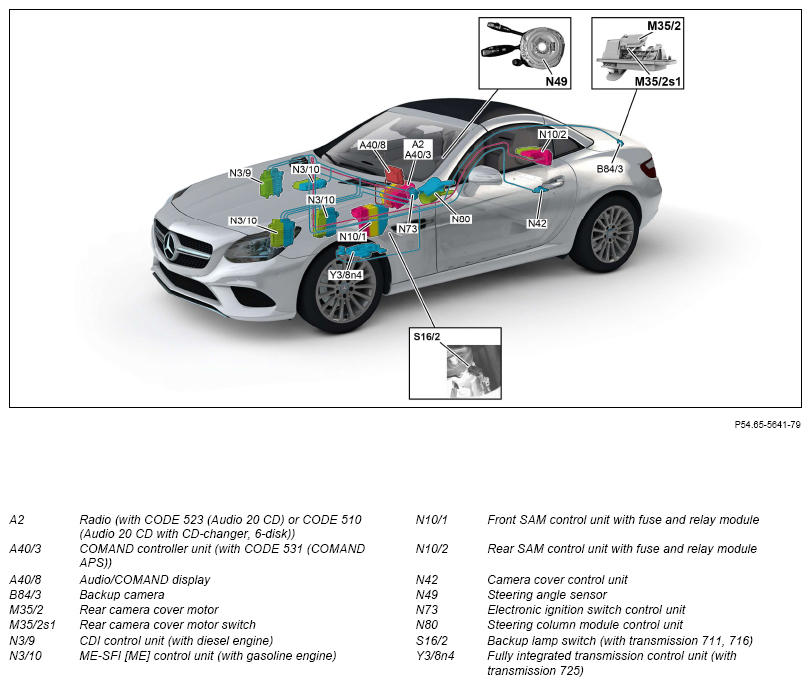

Reversing camera (with CODE 218 (Reversing camera))

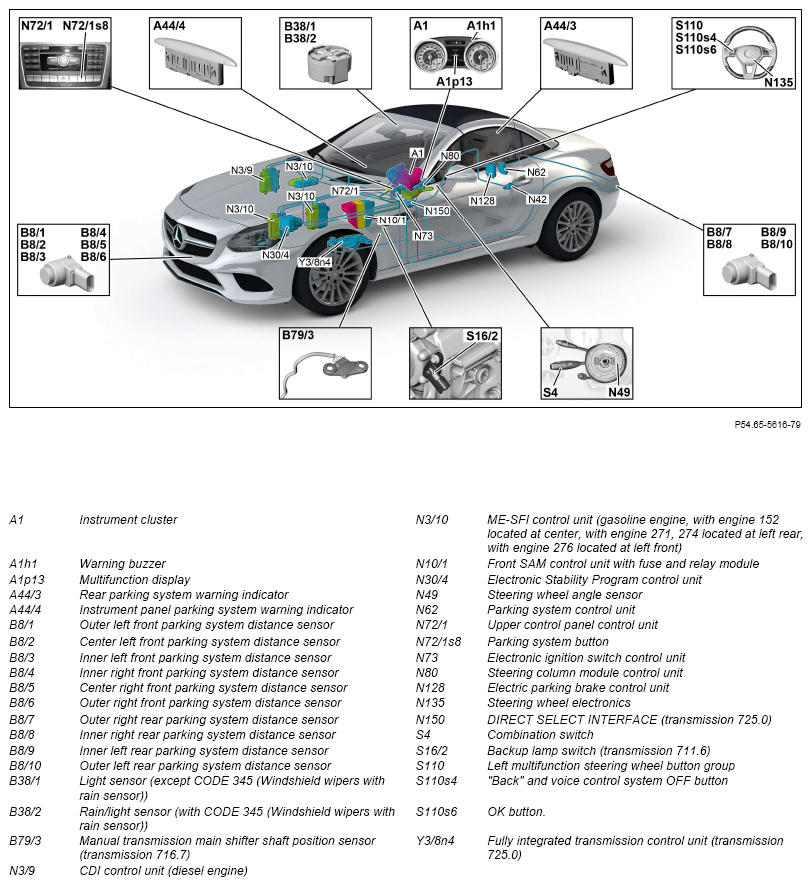

Parking system (with CODE 230 (Exclusive parking assist))
| Component description for instrument cluster | A1, A1h1, A1p13 | GF54.30-P-6000RD | |
| Component description for the radio | Model 172.4 as of model year 2017 with code 218 (Rear view camera) with code 505 (Radio 20 NTG5, not navigation-enabled) Model 172.4 as of model year 2017 with code 218 (Rear view camera) with code 522 (Audio 20 radio) A2 | GF82.60-P-3122RDM | |
| Component description for COMMAND controller unit | Model 172.4 as of model year 2017 with code 218 (Rear view camera) with code 531 (COMMAND APS) A40/3 | GF82.85-P-3136RDM | |
| Component description for Audio/COMMAND display | A40/8 | GF54.30-P-6150RD | |
| Reversing camera component description | Model 172.4 as of model year 2017 with code 218 (Rear view camera) B84/3 | GF54.65-P-5040RDM | |
| Component description for CDI control unit | Model 172.4 with engine 651.9 as of model year 2017 with code 218 (Rear view camera) Model 172.4 with engine 651.9 as of model year 2017 with code 230 (Advanced Parking Guidance) N3/9 | GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | Model 172.4 with engine 152.9 as of model year 2017 with code 218 (Rear view camera) Model 172.4 with engine 152.9 as of model year 2017 with code 230 (Advanced Parking Guidance) N3/10 | GF07.61-P-6000MMI | |
| Model 172.4 with engine 271.861 as of model year 2017 with code 218 (Rear view camera) Model 172.4 with engine 271.861 as of model year 2017 with code 230 (Advanced Parking Guidance) N3/10 | GF07.61-P-6000MGA | ||
| Model 172.4 with engine 276.8 as of model year 2017 with code 218 (Rear view camera) Model 172.4 with engine 276.8 as of model year 2017 with code 230 (Advanced Parking Guidance) N3/10 | GF07.61-P-6000MNC | ||
| Model 172.4 with engine 274.9 as of model year 2017 with code 218 (Rear view camera) Model 172.4 with engine 274.9 as of model year 2017 with code 230 (Advanced Parking Guidance) N3/10 | GF07.61-P-6000MRE | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RD | |
| Component description for Electronic Stability Program control unit | Model 172.4 as of model year 2017 with code 218 (Rear view camera) Model 172.4 as of model year 2017 with code 230 (Advanced Parking Guidance) N30/4 | GF42.45-P-5119RDA | |
| Camera cover control unit, component description | Model 172.4 as of model year 2017 with code 218 (Rear view camera) N42, M35/2, M35/2s1 | GF54.65-P-5005RDM | |
| Parking system control unit component description | Model 172.4 as of model year 2017 with code 230 (Advanced Parking Guidance) N62 | GF54.65-P-5002RDM | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005RDA | |
| DIRECT SELECT interface, component description | Model 172.4 with transmission 725.0 as of model year 2017 with code 218 (Rear view camera) Model 172.4 with transmission 725.0 as of model year 2017 with code 230 (Advanced Parking Guidance) N150 | GF27.19-P-1300ANH | |
| Component description for fully integrated transmission control unit | Model 172.4 with transmission 725.0 as of model year 2017 with code 218 (Rear view camera) Model 172.4 with transmission 725.0 as of model year 2017 with code 230 (Advanced Parking Guidance) Y38n4 | GF27.60-P-5165ANH | |
| Table of contents for function description of parking assistance systems | GF54.00-P-0997RDM |
