Remove/Install Seal On Crossmember Above Windshield - AR77.50-P-4050W

MODEL 172.4

Fig 1: Seal On Crossmember Above Windshield Components Location - Model 172.4
G13848000Courtesy of MERCEDES-BENZ USA
G13848001Courtesy of MERCEDES-BENZ USA
G13848002Courtesy of MERCEDES-BENZ USA
REMOVING Removing

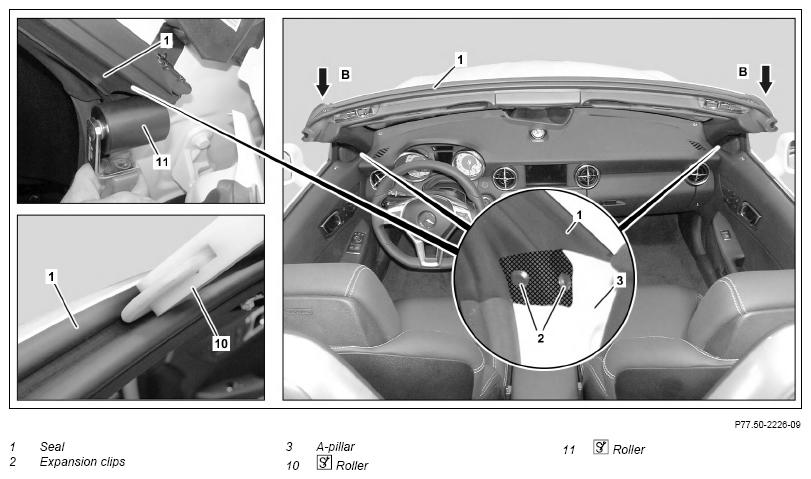

1 Remove outer paneling on left and right A-pillar (3)   AR88.80-P-8500W
2 Remove expansion clip (2) from left and right A-pillar (3) SPECIAL TOOL Clip remover Fig 4
3 Remove seal (1) from windshield crossmember (4) and A-pillars (3)
CLEANING Clean
4 Remove sealant residues and clean sealing surfaces on windshield crossmember (4) and A-pillars (3) NOTES The sealing surfaces must be free of oil and grease. Otherwise leakage is not possible
IMPORTANT Observe drying time for cleaning agent It is not necessary to clean the seal (1) because it is always replaced after removal
    Cleaner *BR00.45-Z-1025-04A
INSTALLING Install

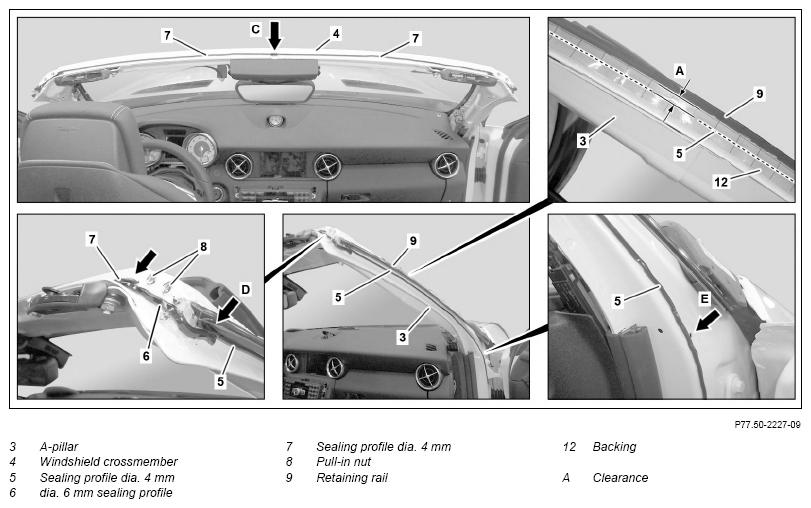

5 Lay Ø 4 mm sealing profiles (7) in center on windshield crossmember (4) IMPORTANT Do not touch Ø 4 mm sealing profile (7) with bare fingers.
Length of Ø 4 mm sealing profile (7) approx. 550 mm. The Ø 4 mm sealing profiles (7) should overlap clearly (arrow C) in the center of the windshield crossmember (4).
    Sealing profile *BR00.45-Z-1084-01A
6 Lay Ø 4 mm sealing profile (5) at both A pillars (3) and windshield crossmember (4) starting at the upper end of the retaining rail (9) IMPORTANT Do not touch Ø 4 mm sealing profile (5) with bare fingers.
Length of Ø 4 mm sealing profile (5) approx. 700 mm.
The distance (A) to the retaining rail (9) should be approx. 8 mm. For this purpose take backing (12) of Ø 4 mm sealing profile (5) as reference.
Route Ø 4 mm sealing profile (5) below hole (arrow E).
    Sealing profile *BR00.45-Z-1084-01A
7 Lay Ø 6 mm sealing profile (6) at upper corner on left and right A-pillar (3) NOTES Ø 6 mm sealing profile (6) should overlap clearly with Ø 4 mm sealing profile (7) and Ø 4 mm sealing profile (5). Otherwise leakage can occur later
IMPORTANT Do not touch dia. 6 mm sealing profile (6) with bare fingers
Length of dia. 6 mm sealing profile (6) approx. 50 mm.
Route Ø 6 mm sealing profile (6) below pin-in nuts (8).
    Butyl cord *BR00.45-Z-1085-01A
8 Position seal (1) on windshield crossmember (4) with both corner elements (arrows B), align corner elements (arrows B) on pull-in nuts (8) and press seal (1) to windshield crossmember (4) toward center. IMPORTANT Use new seal (1)
Helper is required for positioning and aligning seal (1) Two holes are present on the corner brackets (arrows B) for the bolts for mounting the outer paneling to the A-pillar (3).

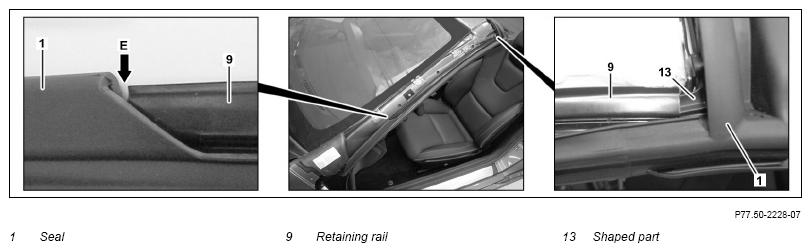

The corner elements (arrows B) are aligned to the pull-in nuts (8) with these holes Ensure that the shaped parts (13) on the seal (1) are seated correctly in the left and right retaining rail (9).
9 Align seal (1) on left and right retaining rail (9) and position IMPORTANT The seal (1) must be positioned on the cutout (arrow) on the left and right retaining rail (9) as shown.
10 Press seal (1) to A-pillars (3) and windshield crossmember (4) over entire length with roller
(10)		 NOTES Carefully roll on seal (1). Otherwise, the seal can be damaged if pressed too firmly.
IMPORTANT Press seal (1) down in routing area of sealing cords (5, 6, 7).
    SPECIAL TOOL Roller Fig 3
11 Cut ends of Ø 4 mm sealing profile (5) extending beyond both A-pillars (3) flush with seal (1) using a clip remover and remove SPECIAL TOOL Clip remover Fig 4
12 Press seal (1) on with SPECIAL TOOL roller (11) in crosshatched areas. SPECIAL TOOL Roller Fig 2
13 Install expansion clips (2)
14 Install paneling on left and right outer A-pillar (3)   AR88.80-P-8500W
15 Clean seal (1) and adjacent body parts IMPORTANT While cleaning check whether seal (1) is seated correctly
    Cleaner *BR00.45-Z-1025-04A
INSPECT Checking
16 Visual check IMPORTANT Check contact on roof frame.
17 Perform rain test
Fig 2: Identifying Roller (168 589 05 63 00)
G11129171Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Roller (171 589 06 63 00)
G11129229Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Clip Remover (452 589 01 63 00)
G11129172Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1084-01A Rear window sealing profile A 004 989 60 20
BR00.45-Z-1085-01A Butyl cord Terostat 81 Ø 6 mm A 004 989 61 20
BR00.45-Z-1025-04A Cleaner A 005 989 19 71
