Remove/install |
|
|
| 1 |

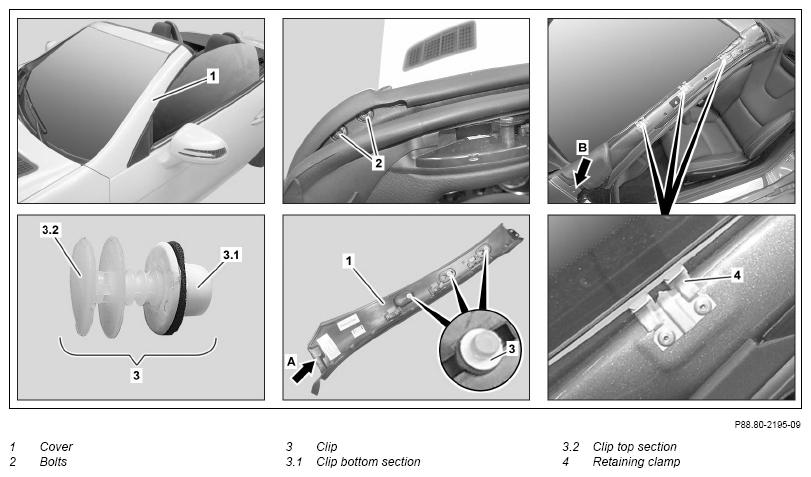

Completely open Vario roof |
|
|
| 2 |
Remove bolts (2) |
|
|
| 3 |
Carefully unclip paneling (1) from clips (3) and retaining clips (4) from A-pillar and remove |
Unclip paneling (1) carefully, danger of damaging paneling (1). |
|
| |
|
Mounting wedge
Carefully press paneling (1) to A-pillar. Danger of damaging paneling (1) |
Fig 2 |
| |
|
Install new clips (3). Install clip bottom section (3.1) in A-pillar and clip top sections (3.2) in paneling (1). Ensure that guide (arrow A) is seated correctly on lug (arrow B) on front fender |
|
| 4 |
Install in the reverse order |
|
|
