Align Side Flap For Vario Roof - AR77.30-P-6373W

MODEL 172.4

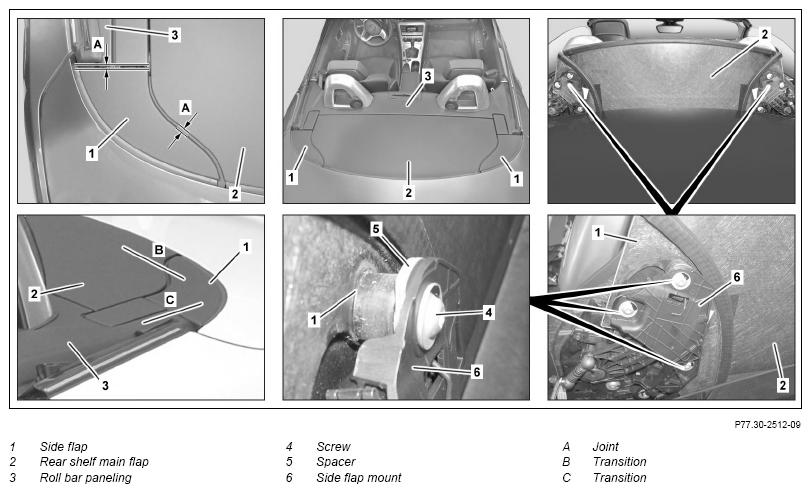

Fig 1: Vario Roof Components Location Side Flap- Model 172.4

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of injury  caused by moving parts that can pinch, crush  or, in extreme cases, even sever  extremities	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by body parts being trapped  or crushed  when working on a partially open Vario roof (in stop mode) or in its closing area as a result of the Vario roof suddenly collapsing	Secure Vario roof with a suitable special tool.	AS77.50-Z-0001-01A
1	Completely open Vario roof
2	Check adjustment of rear shelf main flap (2), correct if necessary	The side flaps (1) can only be adjusted when the rear shelf main flap (2) is correctly adjusted.	AR77.30-P-6341W
3	Check transition (B) from side flaps (1) to rear shelf main flap (2) with straight edge.	The side flaps (1) should be flush with the rear shelf main flap (2) or max. 1 mm deeper.
4	Check transition from side flaps (1) to roll bar paneling (3) with straight edge.	The side flaps (1) should be flush with the roll bar paneling (3) or max. 1 mm deeper.
5	Check alignment of side flaps (1) to roll bar paneling (3) and rear shelf main flap (2)	The joint gaps (A) should be parallel to one another and not deviate by more than 1 mm over the entire length	*BE77.30-P-1013-01A
		Feeler gauge	Fig 2
6	Switch on ignition and open trunk lid by actuating the Vario roof soft top switch. Leave ignition switched on.	The Vario roof should stop moving when the rear shelf main flap (2) is positioned vertically and before the Vario roof starts to close. The trunk lid opens toward rear.
	Adjust
7	Loosen bolts (4) until spacers (5) can be removed or inserted.
8	Adjust transitions (B, C) by removing or inserting spacers (5). Tighten bolts (4) until spacers (5) are fastened and the side flap (1) can still be moved
9	Adjust position side flap (1) on side flap mount (6) by moving side flap (1)	The joint gaps (A) should be parallel to one another and not deviate by more than 1 mm over the entire length	*BE77.30-P-1013-01A
		Feeler gauge	Fig 2
10	Tighten bolts (4)
11	Check adjustment, repeat if necessary

TEST VALUES FOR VARIO ROOF GAP DIMENSIONS

Number	Designation		Model 172
BE77.30-P-1013-01A	Gap dimension between side flap and roll bar paneling and rear shelf	mm	4.5 to 5.5

Fig 2: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
