Adjust Vario Roof Rear Shelf - AR77.30-P-6341W
Model 172.4
MODIFICATION NOTES
| 8.6.15 | Gap between rear shelf main flap and roll bar paneling | Model 172 | BE77.30-P-1007-01A |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Check | |||
| 1 | Open Vario roof fully | ||

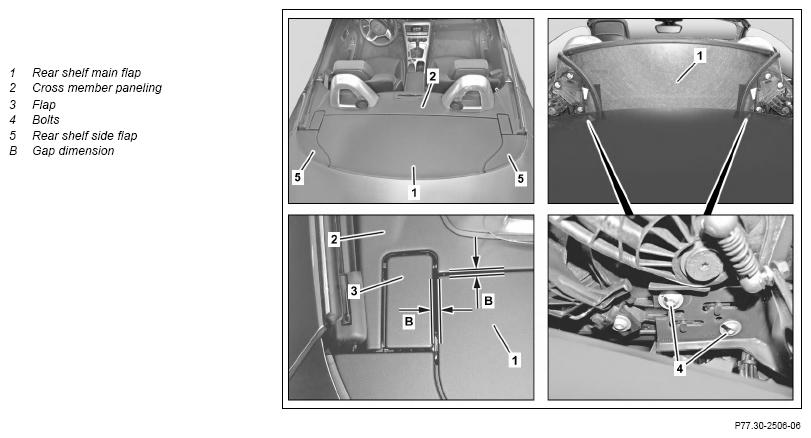

| 2 | Check alignment for rear shelf (1) in relation to crossmember panel (2) | Gap between rear shelf main flap and roll bar paneling |
*BE77.30-P-1007-01A |
| Fig 2 | |||
| Adjust | |||
| 3 | Switch on ignition | ||
| 4 | Open and close Vario roof with Vario roof actuation switch | ||
| 5 | Switch off ignition | ||
| 6 | Loosen bolts (4) so that the rear shelf main flap (1) can be moved at side | ||
| 7 | The rear shelf main flap (1) must centered between the left and right flap (3) on the crossmember paneling (2) | ||
| 8 | Adjust alignment of rear shelf main flap (1) in relation to crossmember paneling (2) by moving rear shelf main flap (1) | ||
| 9 | Adjust liftgate rear shelf (1) so that proper function is ensured, observe gap dimension (B) | *BE77.30-P-1007-01A | |
| Fig 2 | |||
| 10 | Tighten screws/bolts (4) | ||
| 11 | Completely close trunk lid with Vario roof actuation switch | ||
| 12 | Check rear shelf side flaps (5) | If adjusted incorrectly ↓ Adjust rear shelf side flap (5) |
AR77.30-P-6373W |
TEST VALUES FOR VARIO ROOF GAP DIMENSIONS
| Number | Designation | Model 172 | ||
|---|---|---|---|---|
| BE77.30-P-1007-01A | Gap between rear shelf main flap and roll bar paneling | Dimension "B" | mm | 5, 5...7, 5 |
