Remove/install side paneling in trunk - AR68.30-P-4800RK
MODEL 231
Shown on right side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Completely close Vario roof | ||
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| 2 | Positioning trunk lid to assembly position | AR88.50-P-5000-01RK | |
| 3 | Remove retractable trunk partition | AR68.50-P-3000RK | |
| 4 | Remove trim from rear end center assembly | AR68.30-P-4785RK | |

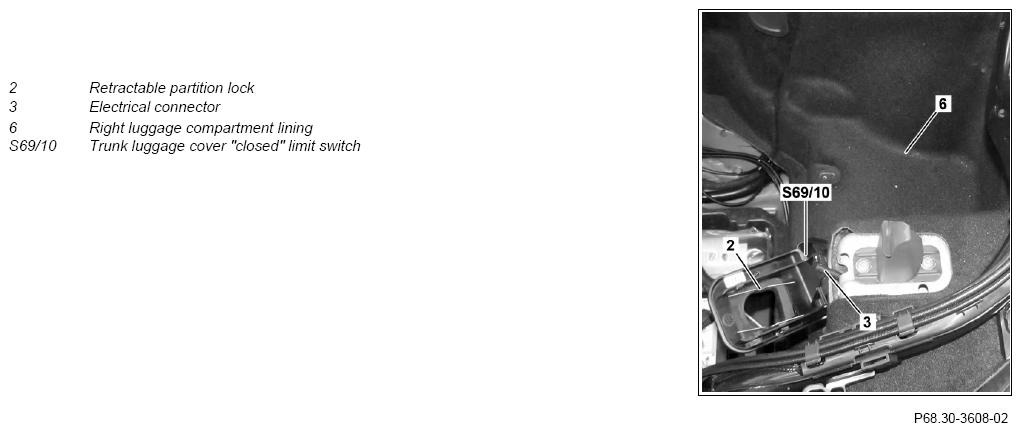

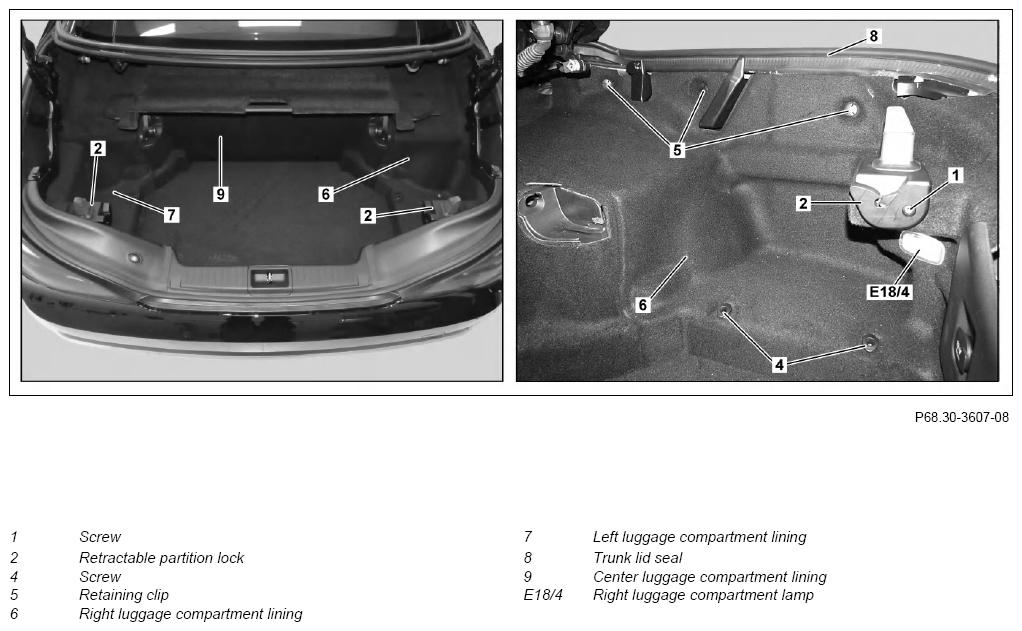

| 5 | Unscrew bolt (1) and remove retractable partition lock (2) | ||
| 6 | Disconnect electrical connector (3) from retractable trunk partition closed limit switch (S69/10) | ||
