Remove/install trunk retractable partition - AR68.50-P-3000RK

MODEL 231

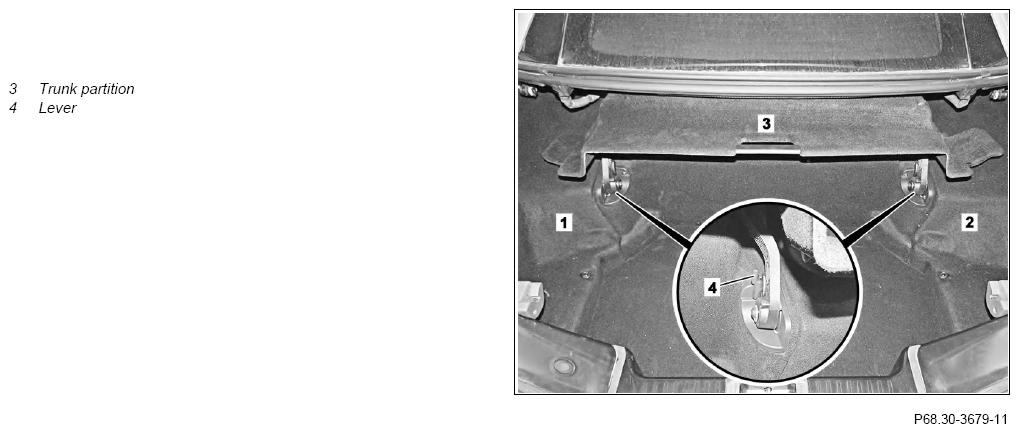

Fig 1: Trunk Retractable Partition Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

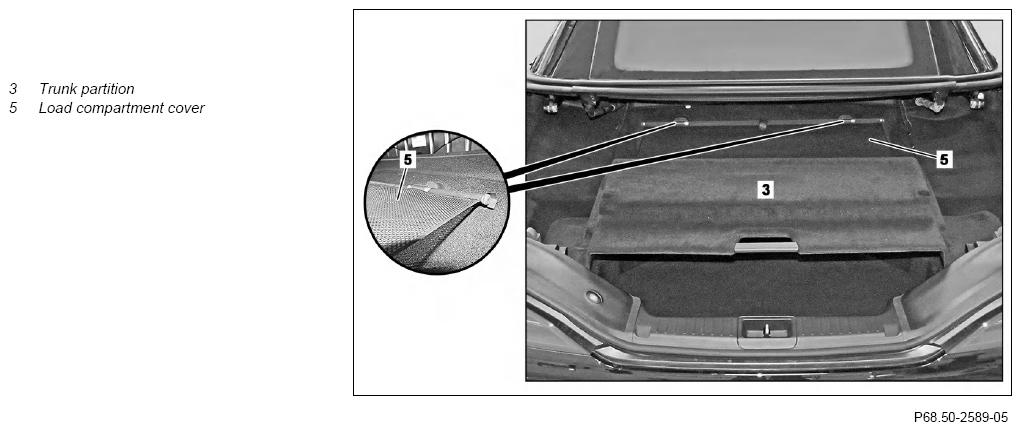

Fig 2: Trunk Retractable Partition Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Open luggage compartment lid
2.1	Pull trunk partition (3) toward rear and hook into suspension eyes	On vehicles without electrical trunk partition.
2.2	Close trunk partition (3) electrically	On vehicles with electric trunk partition.
3	Unhook load compartment cover (5) from brackets and allow to roll in
4	Unhook trunk partition (3) and push toward front
5	Remove trunk partition (3) with load compartment cover (5)	For this purpose pull down lever (4) to unlock and pull trunk partition (3) toward rear out mounts. Removal  : Observe electrical line.
6	Disconnect right electrical connector	On vehicles with electric trunk partition.
7	Install in the reverse order
