Retrofit Drive Kit Plus for smartphones - AZ82.60-P-0027RK

MODEL 231 (except 231.474/479) up to 2/29/16

up to model year 2017

with CODE 526 (COMAND with single DVD drive (without navigation))

except CODE 865 (TV tuner)

MODEL 231 (except 231.474/479) up to 2/29/16

up to model year 2017

with CODE 527 (COMAND APS with single DVD drive (with navigation))

except CODE 865 (TV tuner)

except CODE 867 (SPLITVIEW)

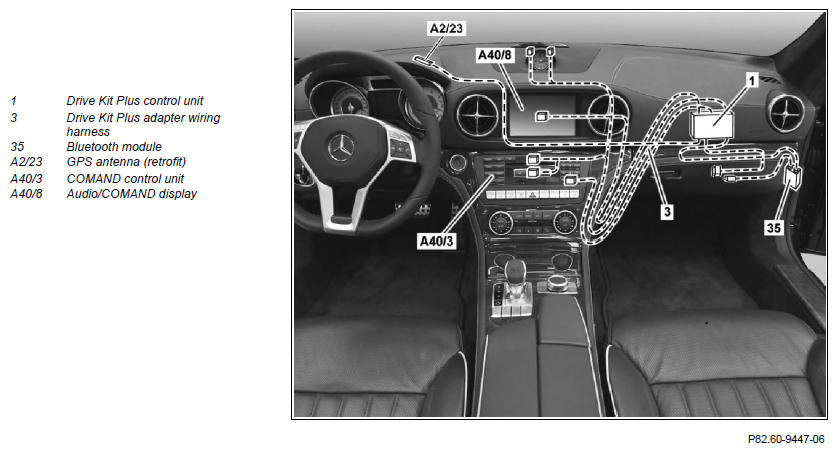

Routing diagram for Drive Kit Plus for smartphone, shown on left-hand drive vehicle

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Remove
1	Move front passenger seat toward rear
2	Fold back passenger-side floor covering
3	Remove glove compartment
			AR68.10-P-1400RK
4	Remove COMAND controller unit (A40/3)
			AR82.85-P-1100RK
5	Remove Audio/COMAND display (A408)
			AR82.60-P-7722RK
6	Release center console and remove armrest
		With CODE 518 (Media Interface)	AR68.20-P-2000RK
	Install
7	Retrofit Drive Kit Plus adapter wiring harness (3)		AZ82.60-P-0027-01RK
		Long wedge	Figure
8	Retrofit Drive Kit Plus low voltage differential signaling (LVDS) wiring harness		AZ82.60-P-0027-04RK
9	Retrofit GPS antenna (A2/23)	With CODE 526 (COMAND (without navigation))	AZ82.60-P-0027-06RK
10	Retrofit Drive Kit Plus Media Interface adapter line	With CODE 518 (Media Interface)	AZ82.60-P-0027-05RK
11	Retrofit Drive Kit Plus connecting wiring harness		AZ82.60-P-0027-02RK
12	Retrofit Bluetooth module (35)		AZ82.60-P-0027-07RK
13	Retrofit Drive Kit Plus control unit (1)		AZ82.60-P-0027-03RK
14	Install AV adapter	For other manufacturers of the AV adapter, see ODUS: Services and Downloads > Additional Information > Accessories > Telematics > Drive Kit Plus
15	Install remaining parts
16	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
17	Perform variant coding with XENTRY using the software calibration number (SCN)	Register Drive Kit Plus for the smartphone at the COMAND controller unit (A40/3) using SCN coding.
18	Disconnect Star Diagnosis
			AD00.00-P-2000-04A
	Update Vehicle Documentation (VeDoc)
19	Attach a note "Drive Kit Plus for smartphone retrofitted as per AZ82.60-P-0027RK" under field organization texts for DG 68 and DG 82
20	Enter special equipment via VeDoc in online vehicle data card - Code "89o"	Ensure here that the third digit is the letter "o" for Oscar.
	Check
21	Perform function check on Drive Kit Plus for smartphone	See Owner's Manual.

Part no.	Designation	Quantity
KG 98	Installation kit of Drive Kit Plus for smartphones	1
