Remove/install glove compartment - AR68.10-P-1400RK

MODEL 231

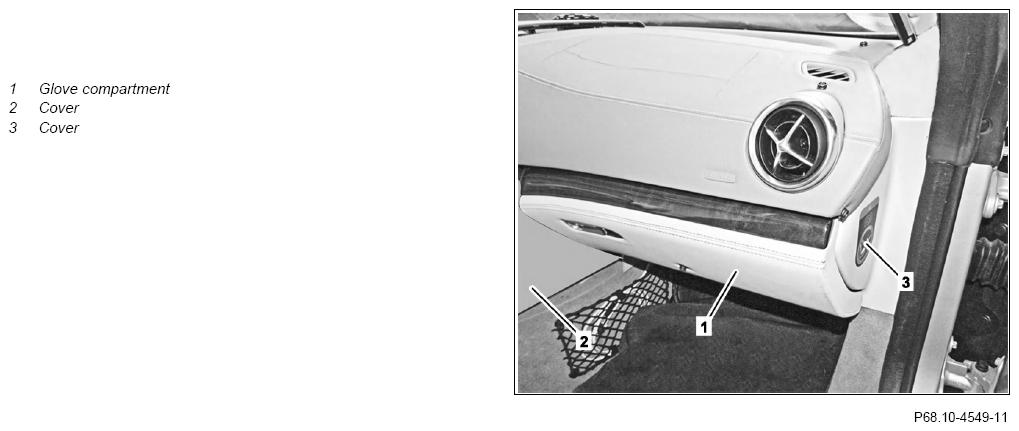

Fig 1: Glove Compartment Remove/Install Components (1 Of 4)

Courtesy of MERCEDES-BENZ USA

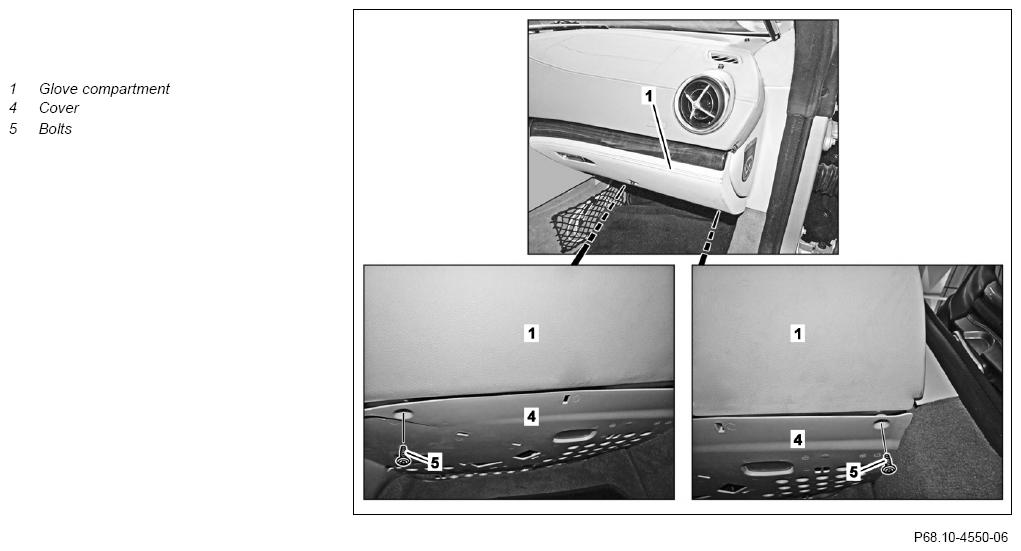

Fig 2: Glove Compartment Remove/Install Components (2 Of 4)

Courtesy of MERCEDES-BENZ USA

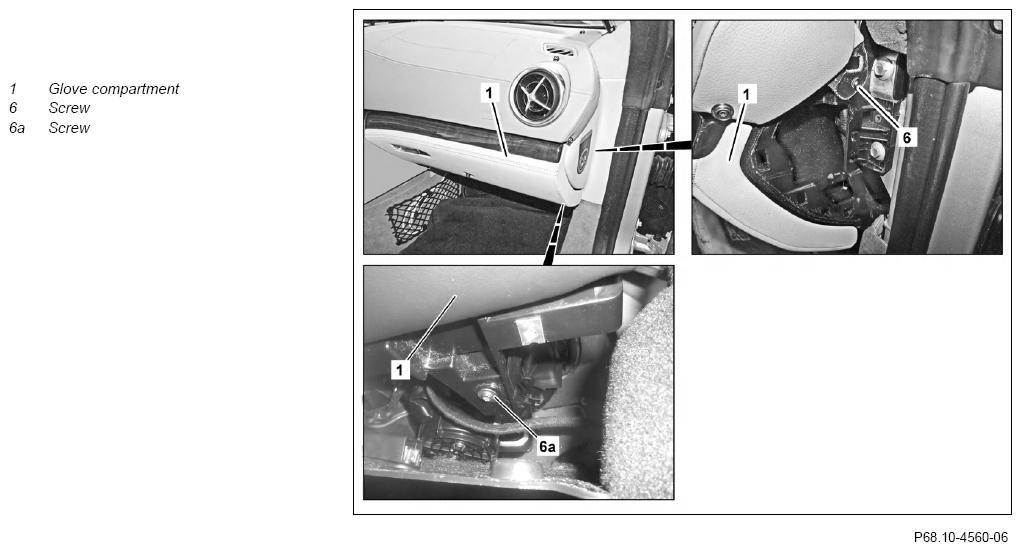

Fig 3: Glove Compartment Remove/Install Components (3 Of 4)

Courtesy of MERCEDES-BENZ USA

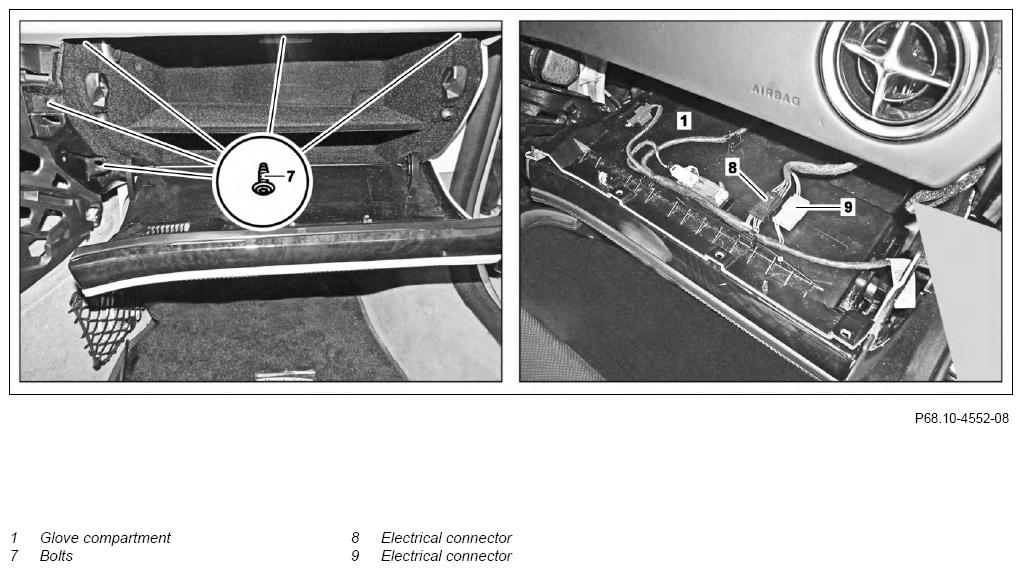

Fig 4: Glove Compartment Remove/Install Components (4 Of 4)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01M
	Legal requirements on handling and storing airbags and emergency tensioning retractor units		AH91.00-P-0004-01A
	Assessment of airbag and belt tensioner units in accident vehicles		AH91.00-P-0006-01B
1	Disconnect battery ground line	MODEL 231 with CODE 294 (Kneebag)	AR54.10-P-0003RK
2	Remove paneling (2)	Ensure that paneling (2) is seated correctly on instrument panel. Unclip paneling (2) starting at rear and pull out of instrument panel. Mounting wedge	Fig 5
3	Unscrew bolts (5) and remove paneling (4) below glove box (1)
4	Open glove compartment (1)
5	Unclip paneling (3) and remove	Mounting wedge	Fig 5
6	Remove screw/bolts (7)
7	Unscrew bolts (6, 6a) and lower glove box (1) downward	Lower glove box (1) only until electrical connectors (8, 9) are accessible.
8	Disconnect electrical connector (8)
9	Disconnect electrical connector (9)	MODEL 231 with CODE 294 (Kneebag)
10	Remove glove box (1)
11	Install in the reverse order

Fig 5: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
