Retrofit Drive Kit Plus for Apple iPhone - AZ82.60-P-0019RK

MODEL 231 (except 231.474/479)

without CODE 526 (COMAND (without navigation))

without CODE 865 (digital TV)

without CODE 867 (SPLITVIEW)

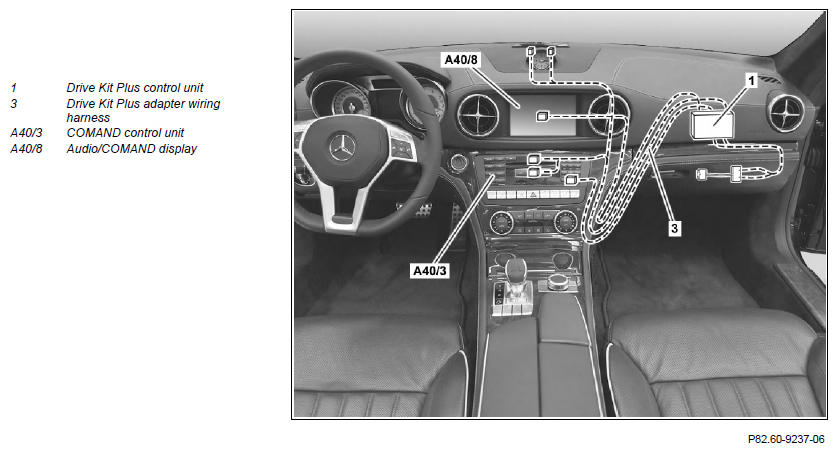

Routing diagram for Drive Kit Plus for Apple iPhone 4, shown on left-hand drive vehicle

Fig 1: Drive Kit Plus For Apple iPhone 4 Routing Diagram - Shown On Left-Hand Drive Vehicle

Courtesy of MERCEDES-BENZ USA

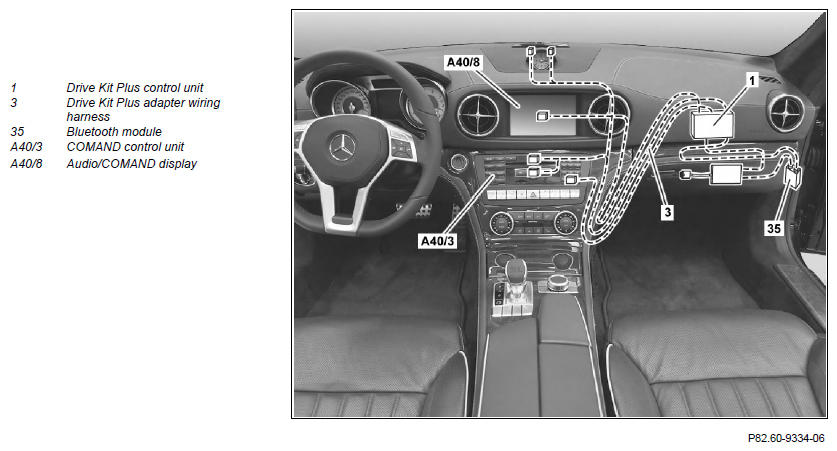

Routing diagram for Drive Kit Plus for Apple iPhone 5, shown on left-hand drive vehicle

Fig 2: Drive Kit Plus For Apple iPhone 5 Routing Diagram - Shown On Left-Hand Drive Vehicle

Courtesy of MERCEDES-BENZ USA

	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move front passenger seat toward rear
2	Fold back passenger-side floor covering
3	Remove glove compartment
			AR68.10-P-1400RK
4	Remove COMAND controller unit (A40/3)
			AR82.85-P-1100RK
5	Remove Audio/COMAND display (A408)
			AR82.60-P-7722RK
6	Release center console and remove armrest	With CODE 518 (Media Interface)
			AR68.20-P-2000RK
	Install
7	Retrofit Drive Kit Plus adapter wiring harness (3)		AZ82.60-P-0019-01RK
		Long wedge	Figure
8	Retrofit Drive Kit Plus low voltage differential signal (LVDS) wiring harness		AZ82.60-P-0019-04RK
9	Retrofit Media Interface Drive Kit Plus adapter line	With CODE 518 (Media Interface)	AZ82.60-P-0019-05RK
10	Retrofit Drive Kit Plus connection wiring harness		AZ82.60-P-0019-02RK
11	Retrofit Bluetooth module (35)	When retrofitting of the Drive Kit Plus for the Apple iPhone 5.	AZ82.60-P-0019-07RK
12	Retrofit Drive Kit Plus control unit (1)		AZ82.60-P-0019-03RK
13	Install remaining parts
	Update Vehicle Documentation (VeDoc)
14	Attach note "Drive Kit Plus for the Apple iPhone retrofitted as per AZ82.60-P-0019RK" under field organization texts
15	Enter special equipment into the vehicle data card online - CODE "89o"	Ensure here that the third digit is the letter "o" for Oscar.
16	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)	MODEL 231 as of 01.12.13 as of model year 2014
			AD00.00-P-2000-04A
17	Carry out adaptation and redocumentation of the "Drive Kit Plus" control unit	Only with "Car-to-X" XENTRY: "Drive Kit Plus" control unit > Adaptation > Initial startup
18	Perform variant coding with XENTRY using the software calibration number (SCN)	Register Drive Kit Plus for the Apple iPhone with the audio component using SCN coding.
19	Disconnect diagnostic system	MODEL 231 as of 01.12.13 as of model year 2014
			AD00.00-P-2000-04A
20	Install software onto USB stick and flash to Drive Kit Plus control unit via Apple iPhone® update adapter	For instructions see ODUS: Service and Downloads > Further Information > Accessories > Telematics > Drive Kit Plus.
	Check
21	Perform function check of Drive Kit Plus for the Apple iPhone	See Owner's Manual.

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
