Remove/Install Left Turbocharger - AR09.40-P-6026MNM

Engine 177 in model 217, 222

MODIFICATION NOTES

22.09.2020

Position clamp (7) between exhaust gas turbocharger and exhaust manifold and align.

Operation step 19.

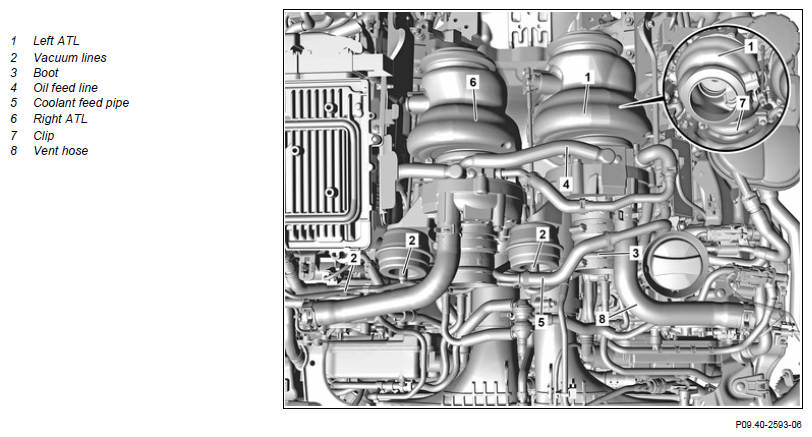

Fig 1: Left Turbocharger Components Location - Engine 177 In Model 222

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out o' the danger zone.	AS49.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove
1	Drain off coolant.		AR20.00-P-1142MNL
2	Remove left and right air filter housing.	Right air filter housing	AR09.10-P-1152MNM
		Left air filter housing	AR09.10-P-1151MNM
3	Remove catalytic converters and secure against falling down.	Right catalytic converter	AR49.20-P-0102MNM
		Left catalytic converter	AR49.20-P-0101MNM
4	Remove vacuum lines (2) from left exhaust gas turbocharger (1), right exhaust gas turbocharger (6), and from switchover valve.
5	Remove boot (3) from left exhaust gas turbocharger (1).
6	Remove charge air hose of charge air cooler from left exhaust gas turbocharger (1).
7	Remove oil feed line (4).		AR09.40-P-6040MNM
8	Remove coolant circuit return line.		AR20.20-P-1101MNM
9	Remove coolant feed pipe (5) from right exhaust gas turbocharger (6).
10	Remove coolant feed pipe (5) from cylinder head.
11	Open clamp (7).
12	Remove left exhaust gas turbocharger (1) with coolant feed pipe (5) and oil return feed line.
13	Remove coolant feed pipe (5) from left exhaust gas turbocharger (1).	Only when replacing the left ATL (1).
			AR20.20-P-1100MNM
14	Remove oil return feed line of the left exhaust gas turbocharger (1).		AR09.40-P-6041MNM
15	Remove vent hose (8).	Only when replacing the left ATL (1).
		Hose clamp pliers	Fig 3
	Install
16	Install vent hose (8).	Only when replacing the left ATL (1).
		Hose clamp pliers	Fig 3
17	Install new oil return feed line of the left exhaust gas turbocharger (1).		AR09.40-P-6041MNM
18	Attach coolant feed pipe (5) to left exhaust gas turbocharger (1).	Only when replacing the left ATL (1).
			AR20.20-P-1100MNM
19	Position clamp (7) between exhaust gas turbocharger and exhaust manifold and align		AR09.40-P-6017-01MNE
		Replace clamp (7).
20	Install assembly tool on left exhaust gas turbocharger (1) and on oil return feed line and tighten screw.	Assembly tool	Fig 4
21	Install left exhaust gas turbocharger (1) with coolant feed pipe (5) and oil return feed line.	Replace sealing ring on left exhaust manifold.
		Assembly tool	Fig 4
22	Install template on left exhaust gas turbocharger (1) and on right exhaust gas turbocharger (6) and tighten screws in the mount of the oil feed line (4).	Template	Fig 2
23	Tighten clamp (7).	Bolt, turbocharger clamp to exhaust manifold	*BA09.40-P-1001-01ZA
24	Remove template on left exhaust gas turbocharger (1) and right exhaust gas turbocharger (6).	Template	Fig 2
25	Remove assembly tool from left exhaust gas turbocharger (1) and oil return feed line.	Assembly tool	Fig 4
26	Attach coolant feed pipe (5) to cylinder head.		AR20.20-P-1100MNM
27	Attach coolant feed pipe (5) to right exhaust gas turbocharger (6).		AR20.20-P-1100MNM
28	Install coolant circuit return line.		AR20.20-P-1101MNM
29	Install oil feed line (4).		AR09.40-P-6040MNM
30	Attach charge air hose of the charge air cooler to the left exhaust gas turbocharger (1).	Bolt, clamp for charge air hose to charge-air distributor	*BA09.41-P-1002-01X
31	Install boot (3) on left exhaust gas turbocharger (1).	Clamp, boot to exhaust gas turbocharger/air filter	*BA01.20-P-1003-01J
32	Attach vacuum line (2) to left exhaust gas turbocharger (1), right exhaust gas turbocharger (6), and switchover valve.	Use new vacuum line (2).
33	Attach catalytic converters.	Right catalytic converter	AR49.20-P-0102MNM
		Left catalytic converter	AR49.20-P-0101MNM
		Do not install center and lower front engine compartment lining until after leak test.
34	Install left and right air filter housing.	Right air filter housing	AR09.10-P-1152MNM
		Left air filter housing	AR09.10-P-1151MNM
		Do not install upper engine cover until after the leak test.
35	Fill in coolant.		AR20.00-P-1142MNL
36	Check oil level of engine and correct.
			AP18.00-P-1812DKI
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
37	Perform engine test run and check engine for leak tightness.
38	Install the center and front lower engine compartment paneling.		AR61.20-P-1105LF
39	Install upper engine cover.
