Remove/Install Oil Circuit Feed Line Of Turbochargers - AR09.40-P-6040MNM
Engine 177 in model 217, 222
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury
to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil |
Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove cylinder 1+2 ignition coil (T4) | AR15.12-P-2009MNM | |
| 2 | Remove heat shield from right turbocharger (3) | AR09.40-P-6027-00MNM | |
| *BA86.10-P-1002-03G | |||
| *BA09.40-P-1007-01ZA | |||
| 3 | Loosen and move heat shield on feed line (1) to the side | ||
| 4 | Clean area of feed line (1) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 5 | Remove screws (5) | *BA09.40-P-1002-01ZA | |
| 6 | Remove feed line (1) and close off openings with suitable stop plugs | ||

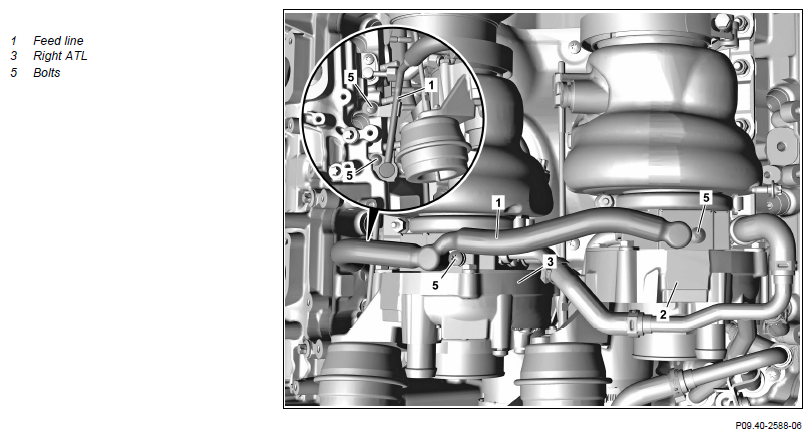

| Fig 1 | |||
| 7 | Install in the reverse order | ||
| 8 | Check engine oil level and correct | ||
| AP18.00-P-1812DKI | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform an engine test run and check engine for proper operation and leak tightness | ||
| 10 | Install upper engine cover |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1002-01ZA | Bolt, oil pressure line to turbocharger/cylinder head | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1007-01ZA | Bolt, side heat shield to cylinder head cover | Nm | 9 |
INERTING
| Number | Designation | Model 217 | Model 222 | ||||
|---|---|---|---|---|---|---|---|
| BA86.10-P-1002-03G | Pipe for inerting to engine | M6 | Screw | Nm | 8 | 8 | |
| Nut | Stage 1 | Nm | 8 | 8 | |||
| Stage 2 | ∠° | 30 | 30 | ||||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
