Remove/Install Desiccant Cartridge - AR83.30-P-6521GQ
Model 166, 292
MODIFICATION NOTES
| 06.10.2016 | Safety note added | AS83.00-Z-0006-01A | |
| 12.09.2016 | General note added | AH83.30-P-0003-02A | |
| 12.09.2016 | Safety note added | AS83.00-Z-0007-01A |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an Air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed Air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out rep Air work on the Air conditioning system circuit only after the system has been evacuated. Model 166, 292 except code 2U8 (Alternative refrigerant) | AS83.00-Z-0006-01A | |
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/ Air mixtures | Never perform welding work on or near a closed Air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out rep Air work on the Air conditioning system circuit only after the system has been evacuated. Model 166, 292 with code 2U8 (Alternative refrigerant) | AS83.00-Z-0007-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Protect Air conditioning circuit and components from moisture when carrying out rep Air work | AH83.30-N-0005-01A | ||
| Procedure for a damaged or leaky Air conditioning system | AH83.30-N-0004-01A | ||
| Notes on handling refrigerant R1234yf | Model 166, 292 with code 2U8 (Alternative refrigerant) | AH83.30-P-0003-02A | |
| Notes on handling refrigerant R134a | Model 166, 292 except code 2U8 (Alternative refrigerant) | AH83.30-N-0003-01A | |
| Remove/install | |||
| 1 | Drain Air conditioning system | AR83.30-P-1760CW | |
| 2 | Remove Front bumper | Model 292 | AR88.20-P-2000GQC |
| Model 166 | AR88.20-P-2000GQ | ||

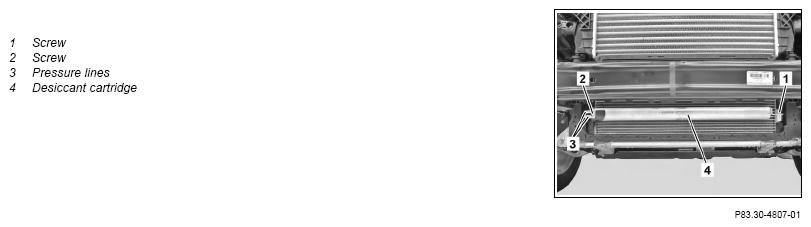

| 3 | Remove Screw (1) | *BA83.30-P-1002-01J | |
| 4 | Remove Screw (2) | *BA83.30-P-1001-01J | |
| 5 | Pull out pressure lines (3) | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| 6 | Remove desiccant cartridge (4) | ||
| 7 | Seal opening at connection fitting using a suitable stop plug | Only if desiccant cartridge (4) is not immediately installed. Otherwise penetrating dirt and moisture will damage the components that are connected to the refrigerant circuit. |
|
| Fig 2 | |||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Evacuate Air conditioning system, refill it, and then check the system to make sure that it functions correctly and does not leak | AR83.30-P-1760CW |
AIR CONDITIONING
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA83.30-P-1001-01J | Nut/bolt, high-pressure line to fluid reservoir | Nm | 7 | 7 |
AIR CONDITIONING
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA83.30-P-1002-01J | Bolt, fluid reservoir to condenser | Nm | 7 | 7 |
