Drain, Evacuate And Recharge Air Conditioning, Check For Proper Operation And Check For Leaks - AR83.30-P-1760CW

Model 166, 204, 207, 212, 218, 292

MODIFICATION NOTES

05.10.2016	Safety note added	AS83.00-Z-0006-01A
12.09.2016	Specification of compressor oil changed	Operation step 8	BB00.40-P-0362-01A
12.09.2016	Validity of general information adapted	AH83.30-N-0003-01A
12.09.2016	General note added	AH83.30-P-0003-02A
12.09.2016	Safety note added	AS83.00-Z-0007-01A
12.09.2016	Air conditioning service unit added	Operation step 1, 2, 3, 6, 7, 8, 9, 10	WS83.00-P-0034B

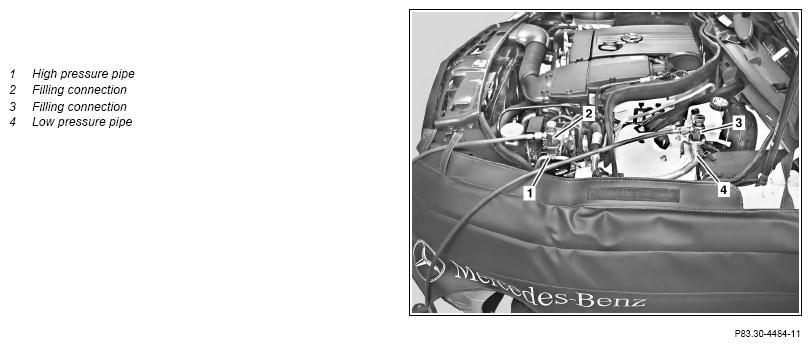

Shown on Model 204.0 with engine 271

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  caused by inhaling overheated refrigerant vapors from an Air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts	Never perform welding work on or near a closed Air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out rep Air work on the Air conditioning system circuit only after the system has been evacuated. Model 166, 292 except code 2U8 (Alternative refrigerant) Model 204, 207, 212, 218	AS83.00-Z-0006-01A
	Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/ Air mixtures	Never perform welding work on or near a closed Air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out rep Air work on the Air conditioning system circuit only after the system has been evacuated. Model 166, 292 with code 2U8 (Alternative refrigerant)	AS83.00-Z-0007-01A
	Protect Air conditioning circuit and components from moisture when carrying out rep Air work		AH83.30-N-0005-01A
	Procedure for a damaged or leaky Air conditioning system		AH83.30-N-0004-01A
	Notes on handling refrigerant R1234yf	Model 166, 292 with code 2U8 (Alternative refrigerant)	AH83.30-P-0003-02A
	Notes on handling refrigerant R134a	Model 166, 292 except code 2U8 (Alternative refrigerant) Model 204, 207, 212, 218	AH83.30-N-0003-01A
	Connect
1	Connect filler connection (2) of Air conditioning service unit to connection of high pressure line (1)
	000 588 10 82 00 R1234yf Air conditioning service unit	Model 166, 292 with code 2U8 (Alternative refrigerant)	WS83.00-P-0034B
	000 588 04 82 00 Air conditioning service unit R134a	Model 166, 292 except code 2U8 (Alternative refrigerant) Model 204, 207, 212, 218	WS83.00-P-0031B
2	Connect filler connection (3) of Air conditioning service unit to connection of low-pressure line (4)
	000 588 10 82 00 R1234yf Air conditioning service unit	Model 166, 292 with code 2U8 (Alternative refrigerant)	WS83.00-P-0034B
	000 588 04 82 00 Air conditioning service unit R134a	Model 166, 292 except code 2U8 (Alternative refrigerant) Model 204, 207, 212, 218	WS83.00-P-0031B
	Analyze
3	Analyze refrigerant in A/C system	Model 166, 292 with code 2U8 (Alternative refrigerant)
	000 588 10 82 00 R1234yf Air conditioning service unit		WS83.00-P-0034B
		The refrigerant analysis must be performed using an analysis device integrated into the Air conditioning service unit or an external analysis device with data transfer to the Air conditioning service unit. A positive gas analysis is when the greenhouse gas exhibits a degree of purity of 92 %. For a positive gas analysis ↓ The refrigerant must be extracted from the Air conditioning system into the internal Air conditioning service unit container. For a negative gas analysis ↓ The gas analysis must be performed up to three times. After a third negative gas analysis, the analysis device must be verified in accordance with the operator's manual. If the analysis device is functional and the gas analysis negative, the refrigerant must be extracted from the A/C system and then be stored in a recycling vessel.
	Draining
4	Suction off refrigerant
	000 588 10 82 00 R1234yf Air conditioning service unit	Model 166, 292 with code 2U8 (Alternative refrigerant)	WS83.00-P-0034B
	000 588 04 82 00 Air conditioning service unit R134a	Model 166, 292 except code 2U8 (Alternative refrigerant) Model 204, 207, 212, 218 The quantity of refrigerant oil extracted from the refrigerant circuit must be documented. When operating the Air conditioning service unit, proceed in accordance with the operator's manual from the manufacturer.	WS83.00-P-0031B
	Check
5	Check desiccant cartridge for re-usability	if necessary ↓ Install new receiver drier
		Model 166, 292	AR83.30-P-6521GQ
		Model 204	AR83.30-P-6521CW
		Model 207 Model 212 (except 212.074/075/076/077/092/274/275/276/277/292)	AR83.30-P-6521EW
		Model 212.074/075/076/077/092/274/275/276/277/292	AR83.30-P-6521EX
		Model 218	AR83.30-P-6521EL
	Evacuate and check
6	Clean refrigerant, evacuate refrigerant circuit and run vacuum test
	000 588 10 82 00 R1234yf Air conditioning service unit	Model 166, 292 with code 2U8 (Alternative refrigerant)	WS83.00-P-0034B
	000 588 04 82 00 Air conditioning service unit R134a	Model 166, 292 except code 2U8 (Alternative refrigerant) Model 204, 207, 212, 218	WS83.00-P-0031B
	Filling
7	Add new compressor oil to the refrigerant circuit according to the quantity of refrigerant oil noted during extraction
	Compressor oils (specification 362.1)		BB00.40-P-0362-01A
	000 588 10 82 00 R1234yf Air conditioning service unit	Model 166, 292 with code 2U8 (Alternative refrigerant)	WS83.00-P-0034B
		Model 166, 292 except code 2U8 (Alternative refrigerant) Model 204, 207, 212, 218 Only the approved compressor oil may be used. If it is proven that a different compressor oil has been used, we will refuse to reimburse costs within the warranty and goodwill period. Daimler AG reserves the right to perform reexaminations. The correct oil Filling quantity in the refrigerant circuit must be ensured. In the event of an incorrectly measured oil Filling quantity, the refrigerant compressor may be damaged. Depending on the rep Air case, the oil Filling quantity may need to be adjusted accordingly.	WS83.00-P-0031B
		Model 204 Model 207 Model 212 (except 212.095/098/195/298) Model 212.095/098/195/298 Model 218 Filling capacity for A/C compressor	*BF83.55-P-1001-01J
		Model 204 Model 207 Model 212 (except 212.095/098/195/298) Model 212.095/098/195/298 Model 218 Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured)	*BF83.55-P-1002-01J
		Model 204 Model 207 Model 212 (except 212.095/098/195/298) Model 212.095/098/195/298 Model 218 Additional oil Filling quantity after replacement of condenser	*BF83.55-P-1003-01J
		Model 204 Model 207 Model 212 (except 212.095/098/195/298) Model 212.095/098/195/298 Model 218 Additional oil Filling quantity after replacement of evaporator	*BF83.55-P-1004-01J
		Model 204 Model 207 Model 212 (except 212.095/098/195/298) Model 212.095/098/195/298 Model 218 Additional oil Filling quantity after replacement of suction line	*BF83.55-P-1005-01J
		Model 204 Model 207 Model 212 (except 212.095/098/195/298) Model 212.095/098/195/298 Model 218 Additional oil Filling quantity after replacement of pressure line	*BF83.55-P-1006-01J
		Model 204 Model 207 Model 212 (except 212.095/098/195/298) Model 212.095/098/195/298 Model 218 Additional oil Filling quantity after replacement of refrigerant compressor	*BF83.55-P-1007-01J
		Model 204 Model 207 Model 212 (except 212.095/098/195/298) Model 212.095/098/195/298 Model 218 Additional oil Filling quantity with detectable leakage	*BF83.55-P-1008-01J
		Model 204 Model 207 Model 212 (except 212.095/098/195/298) Model 212.095/098/195/298 Model 218 Additional oil Filling quantity after replacement of desiccant cartridge	*BF83.55-P-1009-01J
		Model 212.095/098/195/298 Additional oil Filling capacity after replacing high-voltage battery	*BF83.55-P-1010-01J
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Filling capacity for A/C compressor	*BF83.55-P-1001-01I
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Additional quantity of oil to be added when system suddenly looses fluid (e.g line ruptured)	*BF83.55-P-1002-01I
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Additional oil Filling quantity after replacement of condenser	*BF83.55-P-1003-01I
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Additional oil Filling quantity after replacement of evaporator	*BF83.55-P-1004-01I
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Additional oil Filling quantity after replacement of fluid reservoir	*BF83.55-P-1005-01I
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Additional oil Filling quantity after replacement of low-pressure line	*BF83.55-P-1006-01I
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Additional oil Filling quantity after replacement of high-pressure line	*BF83.55-P-1007-01I
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Additional oil Filling quantity after replacement of refrigerant compressor	*BF83.55-P-1008-01I
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Additional oil Filling quantity with detectable leakage	*BF83.55-P-1009-01I
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Additional oil Filling quantity after replacement of rear Air conditioning evaporator	*BF83.55-P-1010-01I
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Additional oil Filling quantity after replacement of rear A/C lines	*BF83.55-P-1011-01I
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Additional oil Filling quantity after replacement of evaporator (rear)	*BF83.55-P-1012-01I
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Additional Filling quantity for refrigerant compressor with rear Air conditioning system	*BF83.55-P-1013-01I
8	Fill Air conditioning system
	000 588 10 82 00 R1234yf Air conditioning service unit	Model 166, 292 with code 2U8 (Alternative refrigerant)	WS83.00-P-0034B
	000 588 04 82 00 Air conditioning service unit R134a	Model 166, 292 except code 2U8 (Alternative refrigerant) Model 204, 207, 212, 218	WS83.00-P-0031B
		Model 166 except code 582 (Rear Air conditioner) Model 166 with code 582 (Rear Air conditioner) Model 292 Air conditioning/automatic Air conditioning	*BF83.00-P-1001-01F
		Model 204, 207 Model 212 with engine 156, 157 Model 212 with engine 271, 272, 273, 274, 276, 278, 642, 651 Model 218 with engine 157 Model 218 with engine 276, 278, 642, 651 Filling capacity of Air conditioning/automatic Air conditioning	*BF83.00-P-1001-01I
	Pressure test
9	Conduct pressure test using Air conditioning service unit
	000 588 10 82 00 R1234yf Air conditioning service unit	Model 166, 292 with code 2U8 (Alternative refrigerant)	WS83.00-P-0034B
	000 588 04 82 00 Air conditioning service unit R134a	Model 166, 292 except code 2U8 (Alternative refrigerant) Model 204, 207, 212, 218 In the event of a pressure drop during the pressure test ↓ Check Air conditioning system for leakage	WS83.00-P-0031B
		Model 204, 207, 212 (except 212.095/098/195/298), 218	AR83.30-P-1761UV
		Model 166.0/8, 292	AR83.30-P-1761GQ
		Model 212.095/098/195/298	AR83.30-P-1761PS
	Disconnect
10	Disconnect filler connection (2) of Air conditioning service unit from connection of high pressure line (1)
	000 588 10 82 00 R1234yf Air conditioning service unit	Model 166, 292 with code 2U8 (Alternative refrigerant)	WS83.00-P-0034B
	000 588 04 82 00 Air conditioning service unit R134a	Model 166, 292 except code 2U8 (Alternative refrigerant) Model 204, 207, 212, 218	WS83.00-P-0031B
11	Disconnect filler connection (3) of Air conditioning service unit from connection of low-pressure line (4)
	000 588 10 82 00 R1234yf Air conditioning service unit	Model 166, 292 with code 2U8 (Alternative refrigerant)	WS83.00-P-0034B
	000 588 04 82 00 Air conditioning service unit R134a	Model 166, 292 except code 2U8 (Alternative refrigerant) Model 204, 207, 212, 218	WS83.00-P-0031B
	Check
12	Check Air conditioning for proper operation

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			Model 166.0, 292 except code 2U8 (Alternative refrigerant) Model 166.8 except code 2U8 (Alternative refrigerant) except code 582 (Rear Air conditioner)	Model 166.0 (except 166.063), 292 with code 2U8 (Alternative refrigerant) Model 166.8 with code 2U8 (Alternative refrigerant) except code 582 (Rear Air conditioner)
BF83.00-P-1001-01F	Air conditioning/automatic Air conditioning	Filling capacity for refrigerant	g	1050	1000
		Specification R134a		BB00.40-P-0361-00A
		Specification R1234yf		-	BB00.40-P-0361-01A

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			Model 166.063 with code 2U8 (Alternative refrigerant)	Model 166.8 with code 582 (Rear Air conditioner) except code 2U8 (Alternative refrigerant)
BF83.00-P-1001-01F	Air conditioning/automatic Air conditioning	Filling capacity for refrigerant	g	1050	1300
		Specification R134a		-	BB00.40-P-0361-00A
		Specification R1234yf		BB00.40-P-0361-01A	-

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			Model 166.8 with code 2U8 (Alternative refrigerant) with code 582 (Rear Air conditioner)
BF83.00-P-1001-01F	Air conditioning/automatic Air conditioning	Filling capacity for refrigerant	g	1250
		Specification R134a		-
		Specification R1234yf		BB00.40-P-0361-01A

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			Model 204 (except 204.077/277/377)	Model 204.077/277/377
BF83.00-P-1001-01I	Filling capacity of Air conditioning/automatic Air conditioning	Refrigerant R134 a	g	590	640
		Refrigerant R1234yf	g	-	-
		See		BB00.40-P-0361-00A	BB00.40-P-0361-00A

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			Model 207	Model 212 (except 212.074/075/076/07 7/092/095/098/195/274/275/276/277/292/298)
BF83.00-P-1001-01I	Filling capacity of Air conditioning/automatic Air conditioning	Refrigerant R134 a	g	590	590
		Refrigerant R1234yf	g	-	-
		See		BB00.40-P-0361-00A	BB00.40-P-0361-00A

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			Model 212.074/075/076/077 /092/274/275/276/27 7/292	Model 212.095/098/195/29 8
BF83.00-P-1001-01I	Filling capacity of Air conditioning/automatic Air conditioning	Refrigerant R134 a	g	640	690
		Refrigerant R1234yf	g	-	-
		See		BB00.40-P-0361-00A	BB00.40-P-0361-00A

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			Model 218 except engine 157 except code 2U8 (Alternative refrigerant)	Model 218 with engine 157 except code 2U8 (Alternative refrigerant)
BF83.00-P-1001-01I	Filling capacity of Air conditioning/automatic Air conditioning	Refrigerant R134 a	g	590	640
		Refrigerant R1234yf	g	-	-
		See		BB00.40-P-0361-00A	BB00.40-P-0361-00A

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			Model 218 except engine 157 with code 2U8 (Alternative refrigerant)	Model 218 with engine 157 with code 2U8 (Alternative refrigerant)
BF83.00-P-1001-01I	Filling capacity of Air conditioning/automatic Air conditioning	Refrigerant R134 a	g	-	-
		Refrigerant R1234yf	g	590	550
		See		BB00.40-P-0361-01A	BB00.40-P-0361-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1001-01I	Filling capacity for A/C compressor	Compressor oil	cm3	120	160
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 292
BF83.55-P-1001-01I	Filling capacity for A/C compressor	Compressor oil	cm3	110
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 204	Model 207
BF83.55-P-1001-01J	Filling capacity for A/C compressor	Compressor oil	cm3	120	120
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 212 (except 212.095/098/195/298)	Model 212.095/098/195/298
BF83.55-P-1001-01J	Filling capacity for A/C compressor	Compressor oil	cm3	120	120
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 218
BF83.55-P-1001-01J	Filling capacity for A/C compressor	Compressor oil	cm3	120
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1002-01I	Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured)	Compressor oil	cm3	40	40
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 292
BF83.55-P-1002-01I	Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured	Compressor oil	cm3	40
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 204	Model 207
BF83.55-P-1002-01J	Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured)	Compressor oil	cm3	40	40
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 212 (except 212.095/098/195/298)	Model 212.095/098/195/29 8
BF83.55-P-1002-01J	Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured)	Compressor oil	cm3	40	40
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 218
BF83.55-P-1002-01J	Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured)	Compressor oil	cm3	40
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1003-01I	Additional oil Filling quantity after replacement of condenser	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 292
BF83.55-P-1003-01I	Additional oil Filling quantity after replacement of condenser	Compressor oil	cm3	20
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 204	Model 207
BF83.55-P-1003-01J	Additional oil Filling quantity after replacement o condenser	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 212 (except 212.095/098/195/298 )	Model 212.095/098/195/29 8
BF83.55-P-1003-01J	Additional oil Filling quantity after replacement of condenser	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 218
BF83.55-P-1003-01J	Additional oil Filling quantity after replacement of condenser	Compressor oil	cm3	20
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1004-01I	Additional oil Filling quantity after replacement of evaporator	Compressor oil	cm3	40	40
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 292
BF83.55-P-1004-01I	Additional oil Filling quantity after replacement of evaporator	Compressor oil	cm3	40
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 204	Model 207
BF83.55-P-1004-01J	Additional oil Filling quantity after replacement of evaporator	Compressor oil	cm3	40	40
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 212 (except 212.095/098/195/298)	Model 212.095/098/195/29 8
BF83.55-P-1004-01J	Additional oil Filling quantity after replacement of evaporator	Compressor oil	cm3	40	40
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 218
BF83.55-P-1004-01J	Additional oil Filling quantity after replacement of evaporator	Compressor oil	cm3	40
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1005-01I	Additional oil Filling quantity after replacement of fluid reservoir	Compressor oil	cm3	10	10
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 292
BF83.55-P-1005-01I	Additional oil Filling quantity after replacement of fluid reservoir	Compressor oil	cm3	10
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 204	Model 207
BF83.55-P-1005-01J	Additional oil Filling quantity after replacement of suction line	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 212 (except 212.095/098/195/298)	Model 212.095/098/195/29 8
BF83.55-P-1005-01J	Additional oil Filling quantity after replacement of suction line	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 218
BF83.55-P-1005-01J	Additional oil Filling quantity after replacement of suction line	Compressor oil	cm3	20
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1006-01I	Additional oil Filling quantity after replacement o low-pressure line	Compressor oil	cm3	10	10
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 292
BF83.55-P-1006-01I	Additional oil Filling quantity after replacement of low-pressure line	Compressor oil	cm3	10
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 204	Model 207
BF83.55-P-1006-01J	Additional oil Filling quantity after replacement of pressure line	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 212 (except 212.095/098/195/298)	Model 212.095/098/195/29 8
BF83.55-P-1006-01J	Additional oil Filling quantity after replacement of pressure line	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 218
BF83.55-P-1006-01J	Additional oil Filling quantity after replacement of pressure line	Compressor oil	cm3	20
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1007-01I	Additional oil Filling quantity after replacement o high-pressure line	Compressor oil	cm3	10	10
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 292
BF83.55-P-1007-01I	Additional oil Filling quantity after replacement of high-pressure line	Compressor oil	cm3	10
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 204	Model 207
BF83.55-P-1007-01J	Additional oil Filling quantity after replacement of refrigerant compressor	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 212 (except 212.095/098/195/298)	Model 212.095/098/195/29 8
BF83.55-P-1007-01J	Additional oil Filling quantity after replacement of refrigerant compressor	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 218
BF83.55-P-1007-01J	Additional oil Filling quantity after replacement of refrigerant compressor	Compressor oil	cm3	20
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1008-01I	Additional oil Filling quantity after replacement of refrigerant compressor	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 292
BF83.55-P-1008-01I	Additional oil Filling quantity after replacement of refrigerant compressor	Compressor oil	cm3	20
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 204	Model 207
BF83.55-P-1008-01J	Additional oil Filling quantity with detectable leakage	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 212 (except 212.095/098/195/298)	Model 212.095/098/195/29 8
BF83.55-P-1008-01J	Additional oil Filling quantity with detectable leakage	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 218
BF83.55-P-1008-01J	Additional oil Filling quantity with detectable leakage	Compressor oil	cm3	20
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1009-01I	Additional oil Filling quantity with detectable leakage	Compressor oil		20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 292
BF83.55-P-1009-01I	Additional oil Filling quantity with detectable leakage	Compressor oil	cm3	20
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 204	Model 207
BF83.55-P-1009-01J	Additional oil Filling quantity after replacement of desiccant cartridge	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 212 (except 212.095/098/195/298)	Model 212.095/098/195/29 8
BF83.55-P-1009-01J	Additional oil Filling quantity after replacement of desiccant cartridge	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 218
BF83.55-P-1009-01J	Additional oil Filling quantity after replacement of desiccant cartridge	Compressor oil	cm3	20
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1010-01I	Additional oil Filling quantity after replacement of rear Air conditioning evaporator	Compressor oil	cm3	30	30
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 292
BF83.55-P-1010-01I	Additional oil Filling quantity after replacement of rear Air conditioning evaporator	Compressor oil	cm3	30
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 212.095/098/195/298
BF83.55-P-1010-01J	Additional oil Filling capacity after replacing high-voltage battery	Compressor oil	cm3	10
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1011-01I	Additional oil Filling quantity after replacement of rear A/C lines	Compressor oil	cm3	20	20
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation Model 292
BF83.55-P-1011-01I	Additional oil Filling quantity after replacement of rear A/C lines	Compressor oil	cm3	20
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1012-01I	Additional oil Filling quantity after replacement o evaporator (rear)	Compressor oil	cm3	10	10
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 292
BF83.55-P-1012-01I	Additional oil Filling quantity after replacement of evaporator (rear)	Compressor oil	cm3	10
		Specification		BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 166 except code 582 (Rear Air conditioner)	Model 166 with code 582 (Rear Air conditioner)
BF83.55-P-1013-01I	Additional Filling quantity for refrigerant compressor with rear Air conditioning system	Compressor oil	cm3	30	30
		Specification		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 292
BF83.55-P-1013-01I	Additional Filling quantity for refrigerant compressor with rear Air conditioning system	Compressor oil	cm3	30
		Specification		BB00.40-P-0362-01A
