Remove/Install Front Seat Sidebag Unit - AR91.60-P-0695GQ
MODEL 166, 292

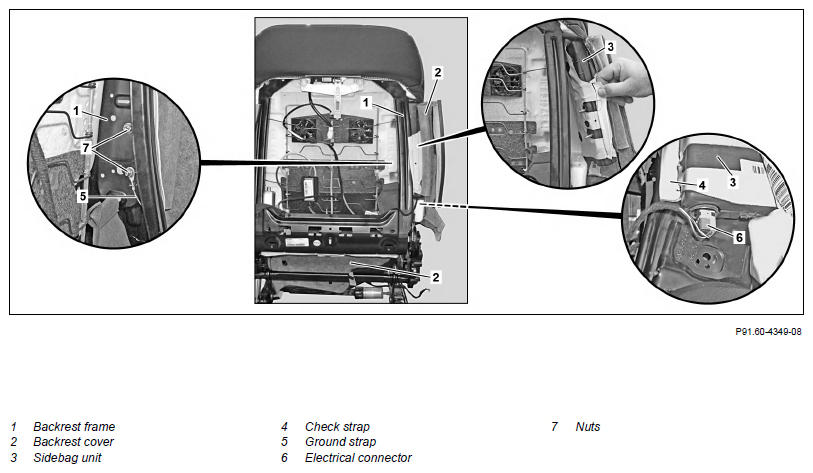

Shown on right front seat
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Move front seat and backrest forward | ||
| 3 | Detach ground line of on-board electrical system battery | AR54.10-P-0003GZ | |
| 4 | Remove seat-back lining from seat backrest | AR91.10-P-1910GQ | |
| 5 | Unhook tabs of backrest cover (2) at backrest frame (1) | ||
| 6 | Unscrew nuts (7) and remove ground strap (5) | *BA91.60-P-1019-01H | |
| 7 | Detach sidebag unit (3) from backrest frame (1) | ||
| 8 | Release and disconnect electrical connection (6) | ||
| 9 | Remove sidebag unit (3) from check strap (4) | ||
| 10 | Install in the reverse order | ||
| Check | |||
| 11 |
Check and erase vehicle fault memory using the diagnostic system | When replacing sidebag unit (3). | AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA91.60-P-1019-01H | Nut, sidebag to backrest frame | Nm | 7 | 7 |
