Remove/Install Filler Neck Of Fuel Tank - AR47.10-P-7541GQ
MODEL 166 with ENGINE 157, 276, 278, 642, 651
MODEL 292 with ENGINE 157, 276, 278, 642

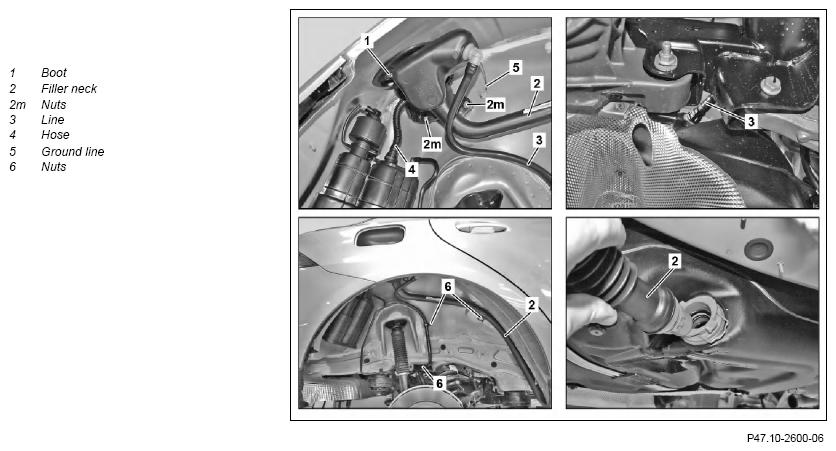

Shown on model 166.057

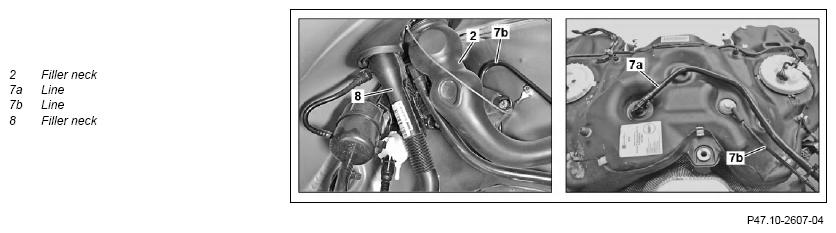

Illustration shows model 166.024
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Empty right chamber on the fuel tank | AR47.10-P-4001GQ | |
| 2 | Remove tank filling depression | AR88.60-P-2000GQ | |
| 3 | Push boot (1) out of body | ||
| 4 |
Detach right rear complete wheel | Model 166 with engine 157, 276, 278, 642, 651 Model 292 with engine 157, 276, 278, 642 Model 166 with engine 157, 276, 278, 642, 651 |
AP40.10-P-4050EW |
| 5 | Remove fender liner in right fender | AR88.10-P-1400GQ | |
| 6 | Remove underfloor paneling | AR61.30-P-1001GQ | |
| 7 | Unlock and detach filler neck (2) on fuel tank | ||
| 8 | Lower fuel tank | Model 166 with engine 642, 651 Model 292 with engine 642 |
AR47.10-P-4100GQ |
| 9.1 | Detach line (3) on fuel tank | Model 166, 292 with engine 157, 276, 278 | |
| 9.2 | Detach lines (7a, 7b) on fuel tank | Model 166 with engine 642, 651 Model 292 with engine 642 |
|
| 10 | Detach hose (4) on activated charcoal canister | Model 166, 292 with engine 157, 276, 278 | |
| 11 | Detach ground line (5) from vehicle body | ||
| 12 | Unscrew nuts (2m, 6) | ||
| 13 | Unlock filler neck (8) for AdBlue® tank and detach from filler neck (2) | Model 166 with engine 642, 651 Model 292 with engine 642 |
|
| 14 | Remove filler neck (2) | ||
| 15 | Install in the reverse order | ||
| Check | |||
| 16 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Carry out engine test run and check fuel system for leaktightness |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| 17 | Install underfloor paneling | AR61.30-P-1001GQ |
