Remove/Install Tank Recess - AR88.60-P-2000GQ
MODEL 166
MODEL 292

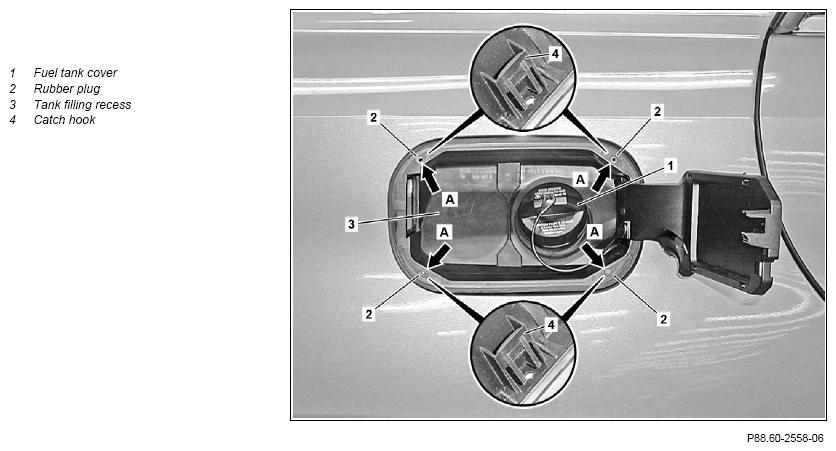

Shown on model 166
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Remove | |||
| 1 | Remove tank flap | AR88.60-P-6023GZ | |
| 2 | Remove fuel filler flap CL element | AR80.20-P-2300GQ | |
| 3.1 | Remove rubber plug (2) | If rubber plug (2) is installed. | |
| 3.2 | Drill tank filler recess (3) at defined cutouts (arrow A) with Ø3 mm drill bit | If rubber plug (2) is not installed. | |
| 4 | Unscrew fuel tank cover (1) | ||
| 5 | Unscrew AdBlue container | Model 166 with code U42 (BlueTEC diesel exhaust treatment (SCR)) Model 292 with code U77 (Diesel Emission control BLUETEC (SCR)) | |
| 6 | Coat sealing lip on tank recess (3) with liquid lubricant | Lubricant, rubber assembly 1l | *BR00.45-Z-1010-06A |
| 7 | Insert suitable tool max. 6 mm deep into release holes | ||
| 8 | Press catch hook (4) down and pull out of tank recess (3) | ||
| Install | |||
| 10 | Coat sealing lip on tank recess (3) with lubricant and clip tank recess (3) into rear fender | Lubricant, rubber assembly 1 l |
*BR00.45-Z-1010-06A |
| 11 | Carefully install sealing lip on tank recess (3) over fuel tank filler neck and AdBlue container filler neck | ||
| 12 | Install rubber plug (2) | If tank recess must not be replaced and cutouts (A) not plugged. | |
| 13 | Remove AdBlue container | Model 166 with code U42 (BlueTEC diesel exhaust treatment (SCR)) Model 292 with code U77 (Diesel Emission control BLUETEC (SCR)) | |
| 14 | Screw on fuel tank cover (1) | ||
| 15 | Install CL element for fuel filler flap | AR80.20-P-2300GQ | |
| 16 | Install fuel filler flap | AR88.60-P-6023GZ |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
