Remove/Install Fuel Filler Flap CL Element - AR80.20-P-2300GQ
MODEL 166
MODEL 292

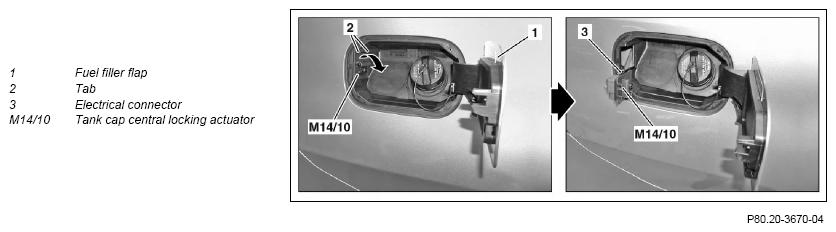

Shown on model 166
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Open fuel filler flap (1) | ||
| 3 | Release lug (2) and pivot tank cap central locking actuator (M14/10) toward front (arrow) | ||
| 4 | Disconnect electrical connector (3) | ||
| 5 | Remove tank cap central locking actuator (M14/10) | ||
| 6 | Install in the reverse order |
