Remove/Install Tank Flap - AR88.60-P-6023GZ
MODEL 164, 166, 292

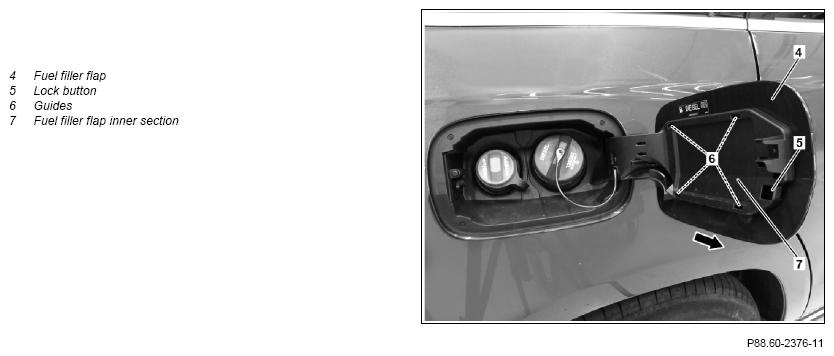

Shown on model 164.1

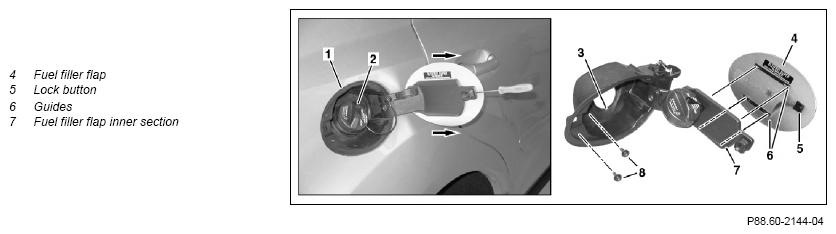

Shown on model 166.8
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Remove | |||
| 1 | Open fuel filler flap (4) | The vehicle must not be locked. | |
| 2 | Release locking catch (5) with suitable tool | ||
| 3 | Push fuel filler flap (4) in direction of arrow and remove fuel filler flap inner section (7) | ||
| Install | |||
| 4 | Position fuel filler flap (4) on fuel filler flap inner section (7) together with guides (6) | Check fuel filler flap ↓ Replace if damaged |
|
| 5 | Push fuel filler flap (4) in opposite direction until catch lock (5) arrests perceptively | ||
| 6 | Close fuel filler flap (4) |
