Remove/Install E-Net Compensator - AR82.70-P-0010GQ
MODEL 166 up to model year 2016
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
|---|---|---|---|
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove paneling from left C-pillar | Model 166 (except 166.8) up to model year 2016 with code Z05 (B5 armoring on special protection version) |
AR68.30-P-4490GQS |
| Model 166.8 up to model year 2016 |
AR68.30-P-4490GQX | ||
| Model 166 (except 166.8) up to model year 2016 except code Z05 (B5 armoring on special protection version) |
AR68.30-P-4490GQ | ||

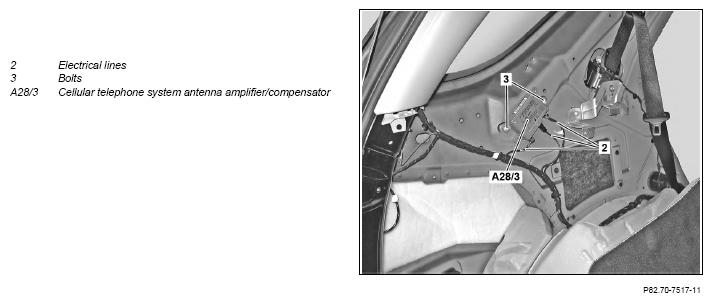

| 3 | Disconnect electrical lines (2) from cellular telephone system antenna amplifier/compensator (A28/3) | ||
| 4 | Remove bolts (3) | ||
| 5 | Remove cellular telephone system antenna amplifier/compensator (A28/3) | ||
| 6 | Install in the reverse order |
