Remove/Install Engine Hood Lifter - AR91.60-P-0900GQ
MODEL 166, 292
with CODE U60 (Active Bonnet (Pedestrian protection))
| Risk of injury caused by performing testing and repair work on engine hood lifter | Store pyrotechnical engine hood lifters with deployment side to one side, do not expose to any temperatures in excess of 100 °C. When working on this unit, disconnect the power supply. | AS91.00-Z-0007-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 2 | Check shear plates for hinge of engine hood for damage | In case of damage to the shear plates for hinge of engine hood ↓ replace shear plates for hinge of engine hood |
AR91.60-P-0910GQ |

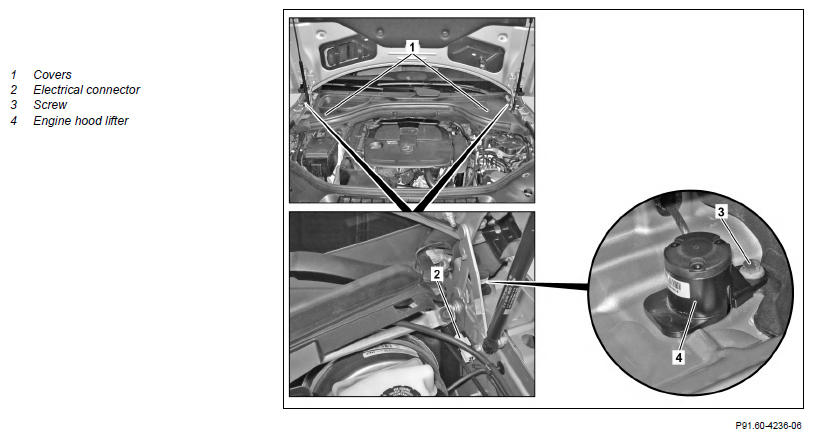

| 3 | Remove covers (1) | ||
| 4 | Disconnect electrical connector (2) | ||
| 5 | Unscrew bolt (3) | *BA91.60-P-1002-02A | |
| 6 | Pull out engine hood lifter (4) and remove | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check impact absorber at front bumper for damage | Model 166 as of model year 2016 with code U60 (Active Bonnet (Pedestrian protection)) Model 292 with code U60 (Active Bonnet (Pedestrian protection)) If the engine hood lifter has deployed |
|
| Model 292 with code U60 (Active Bonnet (Pedestrian protection)) |
AR88.20-P-2000GQC | ||
| Model 166 as of model year 2016 with code U60 (Active Bonnet (Pedestrian protection)) In case of damage to the impact absorber ↓ replace impact absorber |
AR88.20-P-2000GQ | ||
| Model 166.0 as of model year 2016 with code U60 (Active Bonnet (Pedestrian protection)) Model 292 with code U60 (Active Bonnet (Pedestrian protection)) except code 772 (AMG styling package - front spoiler, side skirts and rear apron) |
AR88.20-P-2050GQB | ||
| 9 |
Connect diagnostic system and check supplemental restraint system (SRS) | AD00.00-P-2000-04A | |
ENGINE HOOD LIFTER
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA91.60-P-1002-02A | Screw/nut, hood lifter to body | Nm | 10 | 10 |
