Remove/Install Rear Door Module - AR72.12-P-0103LW
Model 205.0/1/2
Model 213
Model 253
Model 293
Shown on model 205.0
Shown on model 205.0
Shown on model 205.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove door lining at rear door. | AR72.12-P-1010LW | |

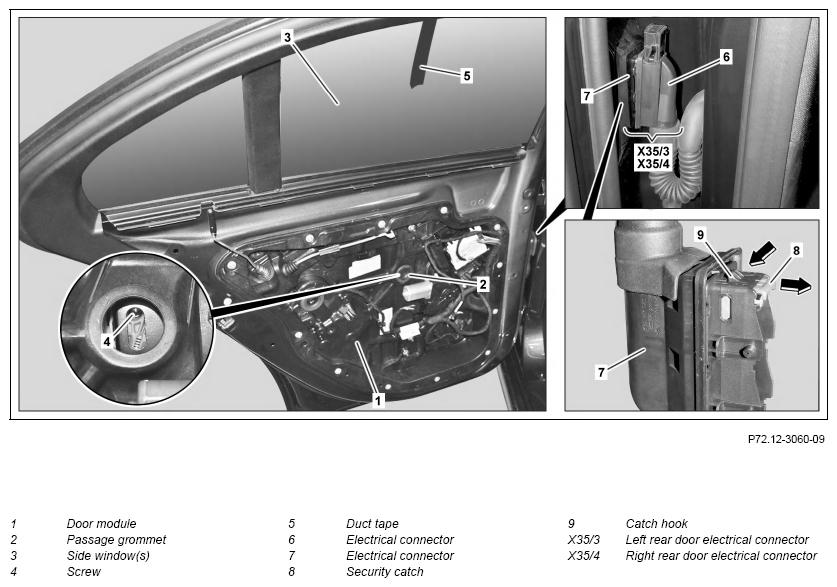

| 2 | Remove feed-through grommet (2) from door module (1). | ||
| 3 | Raise side window (3) via driver's side power window and outside mirror adjustment switch group until screw (4) can be accessed through access opening in door module (1). | ||
| 4 | Loosen screw (4). | ||
| *BA72.12-P-1006-01R | |||
| 5 | Release side window (3) from window lifter, fully slide upwards and secure using suitable fabric tape (5). | ||
| 6 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 7 | Release and disconnect left rear door electrical connector (X35/3) or right rear door electrical connector (X35/4) by pulling bracket at electric coupling (6). | ||
| 8 | Remove lock tab (8) until catch hook (9) can be actuated. | Fig 3 | |
| 9 | Press catch hook (9) with suitable screwdriver until electrical connector (7) can be released from inner door panel. | ||
| 10 | Insert electrical connector (7) into rear door. | ||

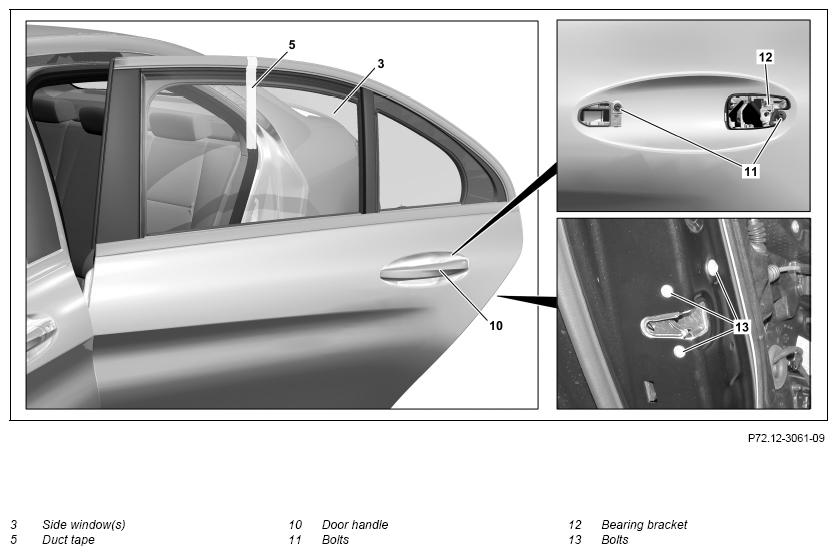

| 11 | Remove door handle (10). | AR72.12-P-2410LW | |
| 12 | Loosen screws (11). | ||
| 13 | Slide bearing bracket (12) forward and detach from door paneling. | ||
| 14 | Remove screws (13) at door lock. | *BA72.12-P-1005-01R | |

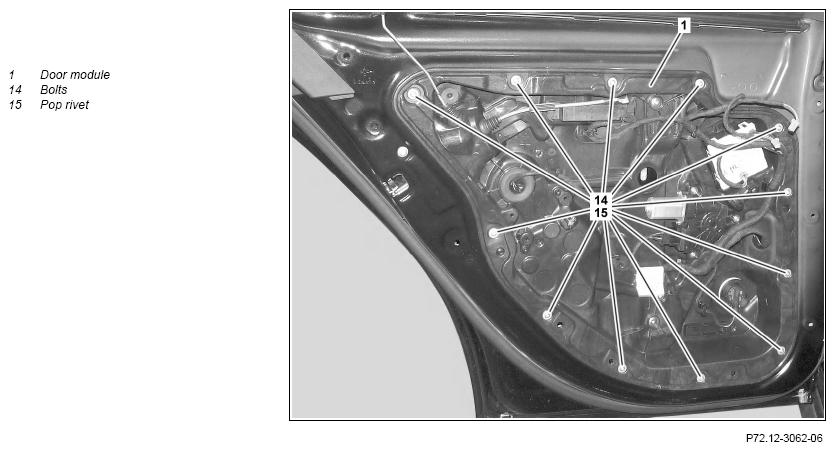

| 15.1 | Remove screws (14). | When securing door module (1) via screws (14) If bolts (14) are stripped, they are to be replaced with bolts with a larger diameter available from EPC. Repair stage 2: If larger bolts are stripped, they are to be replaced with blind rivets available from EPC for mounting the door module (1). |
|
| 15.2 | Drill off rivet heads of blind rivets (15). | When fastening door module (1) with blind rivets (15). Blind rivet tool Drill bit with 7 mm diameter |
|
| 16 | Remove door module (1) from rear door. | If door module (1) sticks to rear door. | |
| Fig 2 | |||
| 17 | Remove door module (1) from rear door. | Note bearing bracket (12) and door lock. Otherwise they may be damaged. |
|
| 18 | Push out rivet residues at inner door panel. | When fastening door module (1) with blind rivets (15). | |
| Fig 1 | |||
| 19 | Remove rivet residues and chipping fully from rear door. | When fastening door module (1) with blind rivets (15). Remove rivet residues and shaving completely. Otherwise remaining rivet residues can cause corrosion damage on rear door. |
|
| 20 | Install in the reverse order |
REAR DOOR
| Number | Designation | Model 205.0/1/2 | Model 213 | |
|---|---|---|---|---|
| BA72.12-P-1005-01R | Bolt, door lock to rear door | Nm | 6 | 7 |
REAR DOOR
| Number | Designation | Model 253 | Model 293 | |
|---|---|---|---|---|
| BA72.12-P-1005-01R | Bolt, door lock to rear door | Nm | 7 | 7 |
REAR DOOR
| Number | Designation | Model 205.0/1/2 | Model 213 | |
|---|---|---|---|---|
| BA72.12-P-1006-01R | Bolt, window to window lifter | Nm | 6 | 6 |
REAR DOOR
| Number | Designation | Model 253 | Model 293 | |
|---|---|---|---|---|
| BA72.12-P-1006-01R | Bolt, window to window lifter | Nm | 6 | 6 |
