Remove/Install Outer Rear Door Handle - AR72.12-P-2410LW

Model 205.0/1/2, 213, 253, 293

Courtesy of MERCEDES-BENZ USA

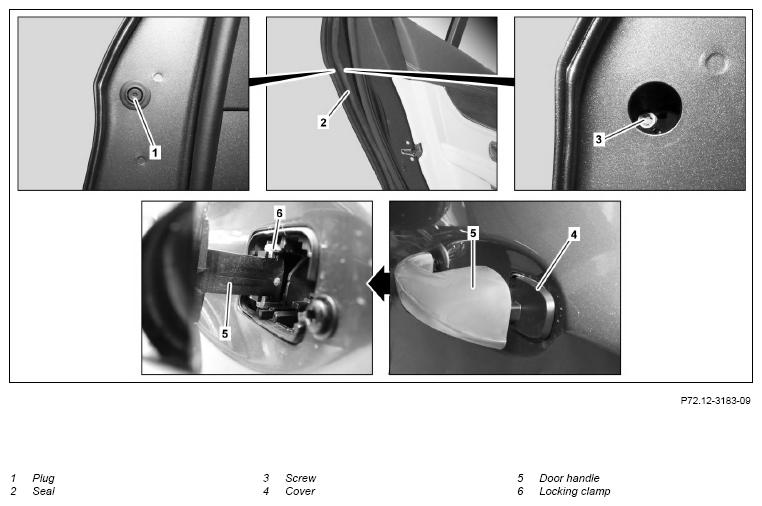

Shown on left rear door, model 205.0

	Remove/install
1.1	Remove stop plug (1).	Model 205.0/1/2, 253, 293
1.2	Unclip seal (2).	Model 213
2	Loosen screw/bolt (3).	Do not remove screw (3) completely.
3	Pull door handle (5) to end stop and remove cover (4).	When removing cover (4), the door handle (5) must engage in the pulled position. If door handle (5) does not arrest, ↓ insert cover (4) with pulled door handle (5) and release door handle (5). Then repeat operation step.
4	Move door handle (5) out of securing clip (6).	Ensure correct seat of door handle (5) in retainer (6).
5	Remove door handle (5).
6	Install in the reverse order
