Transfer Case - oil change - AP28.00-P-2801C
Model 213 with transmission 725.096
with code M005 (Vehicles with 4MATIC/all-wheel drive)
except code 800 (Model year 2020)
except code 807 (Model year 2017)
except code 808 (Model year 2018)
except code 809 (Model year 2019)
Model 213.061/261, 238.361/461, 257.361 with transmission 725.0
Model 253 with transmission 725.096
with code M005 (Vehicles with 4MATIC/all-wheel drive)
except code 807 (Model year 2017)
except code 808 (Model year 2018)
except code 809 (Model year 2019)
Model 290 with transmission 725.0
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Shown on model 290.659
Shown on adapter (4) with sealing ring (5) -special tool 213 589 00 90 00
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Remove | |||
| 1 | Remove the rear engine support. | ||
| Model 213 with engine 177 | AR22.10-P-4360MNE | ||
| Model 213, 238, 257, 290 with engine 256.9 | AR22.10-P-4360MSA | ||
| Model 253 with engine 177 | AR22.10-P-4360MNG | ||
| Model 290 with engine 177 | AR22.10-P-4360MNI | ||
| Clean | |||

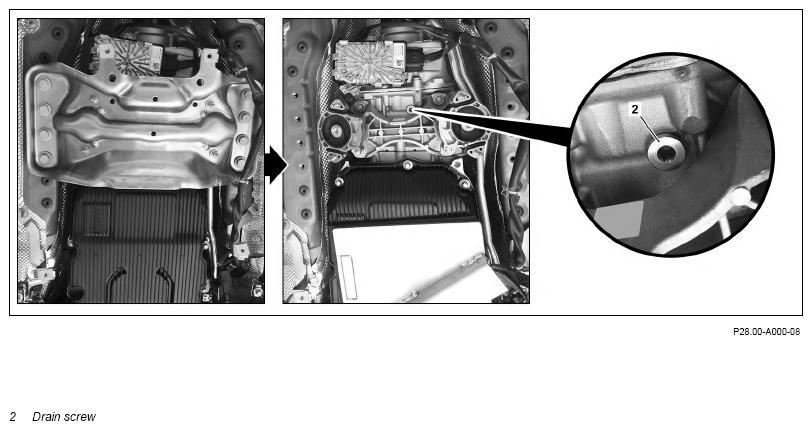

| 2 | Clean area surrounding drain screw (2). | ||
| Remove | |||
| 3 | Place absorbent shop towel in area between engine mount and drain screw (2). | ||
| 4 | Remove drain screw (2) from transfer case. | ||
| Drain off | |||
| 5 | Pull out overflow pipe using extraction hook and drain oil from transfer case. | Collect escaping oil in a suitable container. Damage can otherwise occur. |
Fig 3 |
| Clean | |||
| 6 | Clean threaded hole in transfer case. | ||
| Install | |||
| 7 | Insert overflow pipe into transfer case and screw in using old drain screw (2) until the overflow pipe latches audibly into place. | ||
| Remove | |||
| 8 | Remove old drain screw (2) from transfer case. | Dispose of old drain screw (2). Otherwise, this may lead to leakage and consequential damage. |
|
| Install | |||

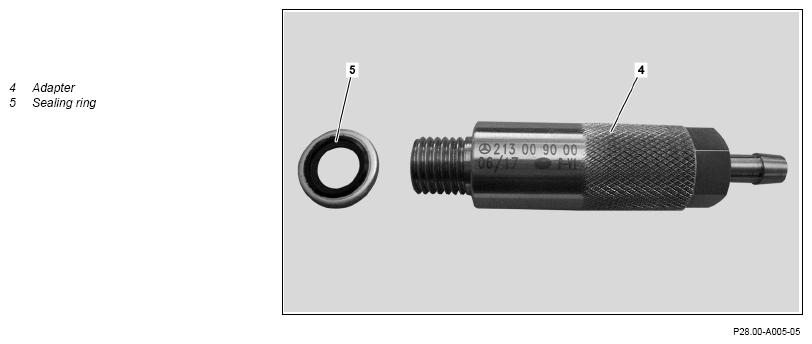

| 9 | Screw the adapter (4) with the sealing ring (5) into the threaded hole of the drain screw (2). | Fig 2 | |
| Pour in | |||
| 10 | Add specified oil filling capacity to hand pump. | *BF28.10-P-1001-01F | |
| Fig 1 | |||
| 11 | Connect hand pump to adapter (4). | Fig 1 | |
| Fig 2 | |||
| 12 | Fill transfer case. | *BF28.10-P-1001-01F | |
| Fig 1 | |||
| 13 | Disconnect hand pump from adapter (4). | Drain off excess oil. Damage can otherwise occur. |
Fig 1 |
If less than 50 ml of oil flow out of the transfer case, ↓ fill 100 ml into hand pump and repeat operation step 11. If more than 50 ml of oil flows out of the transfer case ↓ the transfer case is sufficiently filled, continue with operation step 14. |
Fig 2 | ||
| Remove | |||
| 14 | Remove adapter (4) with sealing ring (5) from threaded hole of drain screw (2). | Fig 2 | |
| Clean | |||
| 15 | Clean threaded hole of drain screw (2) in transfer case. | ||
| Install | |||
| 16 | Screw new drain screw (2) tightly into transfer case. | Replace drain screw (2) each time it is removed. Otherwise, this may lead to leakage and consequential damage. |
*BA28.10-P-1003-01G |
| 17 | Remove shop towel. | ||
| 18 |
Install rear engine carrier. | Model 213 with engine 177 | AR22.10-P-4360MNE |
| Model 213, 238, 257, 290 with engine 256.9 | AR22.10-P-4360MSA | ||
| Model 253 with engine 177 | AR22.10-P-4360MNG | ||
| Model 290 with engine 177 | AR22.10-P-4360MNI | ||
| Reset learned values | |||
| 19 |
Connect diagnostic unit. | Model 213.061/261 with transmission 725.0 | AD00.00-P-2000-04B |
| Model 238.361/461 with transmission 725.0 | AD00.00-P-2000-06LWO | ||
| Model 257.361 with transmission 725.0 Model 290 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) | AD00.00-P-2000-06FR | ||
| 20 | Reset learned values in transfer case control unit. | ||
| 21 |
Disconnect diagnostic unit. | Model 213.061/261 with transmission 725.0 | AD00.00-P-2000-04B |
| Model 238.361/461 with transmission 725.0 | AD00.00-P-2000-06LWO | ||
| Model 257.361 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code M016 (Uprated engine) Model 290 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AD00.00-P-2000-06FR |
COMPLETE TRANSFER CASE
| Number | Designation | Model 205, 213, 217, 218, 222, 223, 238, 253, 257, 290 with transmission 725.0/1 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
|---|---|---|---|
| BA28.10-P-1003-01G | Drain screw to transfer case | Nm | 25 |
COMPLETE TRANSFER CASE
| Number | Designation | Models 205, 213, 217, 218, 222, 238, 253, 257, 290 with transmission 725.0 | ||
|---|---|---|---|---|
| BF28.10-P-1001-01F | Transfer case oil | Filling capacity | Liter | 0, 65 |
| Specification Sheet | BB00.40-P-0236-15A | |||
