Home >> Mercedes Benz >> 2018 >> E300 Base >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Rear Axle - 213 Chassis 1 Of 2 >> Testing & Repair >> Remove/Install Thrust Arm >> Remove/Install Thrust Arm - AR35.20-P-0113LW

Remove/Install Thrust Arm - AR35.20-P-0113LW

Model 205

Model 213 (except 213.064/088/089/264/288/289)

Model 253 (except 253.388/389/988/989)

Model 293

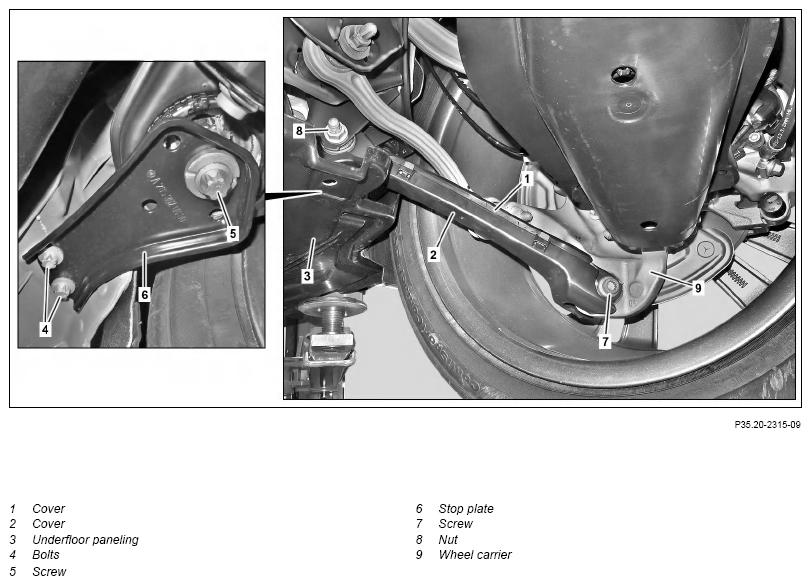

Shown on model 205.064 on right side of the vehicle

G13746159Courtesy of MERCEDES-BENZ USA

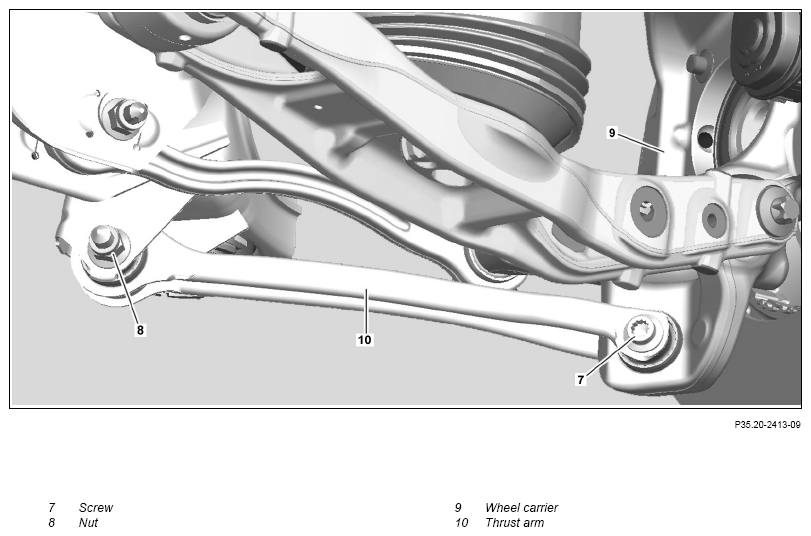

Shown on model 213 on right side of the vehicle

Fig 1: Thrust Arm Components Location - Model 213 (Except 213.064/088/089/264/288/289) (Shown On Right Side Of The Vehicle)
G13746160Courtesy of MERCEDES-BENZ USA
  Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on handling, transport and storage of ceramic brake disks   AH42.10-P-9406-13A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1.1 Detach left or right underfloor paneling (3) in area of stop plate (6). Model 205.0/1/2/3
Model 213.0 (except 213.064/088/089), 213.1
Model 253 (except 253.388/389/988/989/992/993)
Model 205.0/1/2/3
Model 253 (except 253.388/389/988/989/992/993) with engine 177, 264, 274, 276, 642, 651		 AR61.30-P-1001LW
    Model 213.0 (except 213.064/088/089), 213.1 AR61.30-P-1001LWE
1.2 Remove underfloor paneling (3) in area of thrust arm (10) to be removed. Model 253.992/993 AR61.30-P-1001RFW
1.3 Remove diagonal strut. Model 205.4
Model 213.2 (except 213.264/288/289)		 AR61.10-P-5142LWP
1.4 Remove front underfloor paneling. Model 293 AR61.30-P-1001EQ
2 Release left or right fender liner in rear fender until screws (4) are accessible. Model 293 AR88.10-P-1400LW
3 Remove screws (4) from stop plate (6). TORQUE SPECIFICATION Model 293Bolt, stop plate to body *BA35.10-P-1003-01T
    TORQUE SPECIFICATION Model 205, 213 (except 213.064/088/089/264/288/289), 253 (except 253.388/389/988/989) Bolt, stop plate to body *BA35.10-P-1003-01H
4 Support rear axle using an assembly mount and mounting plate.
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
5 Remove screw (5) and remove stop plate (6). IMPORTANT Do not use an impact wrench.
TORQUE SPECIFICATION Model 293Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly		 *BA35.10-P-1001-01T
    TORQUE SPECIFICATION Model 205, 213 (except 213.064/088/089/264/288/289), 253 (except 253.388/389/988/989) Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly *BA35.10-P-1001-01H
6 Clean thread of screw (5) in frame floor assembly using compressed air. IMPORTANT Make sure that the threaded insert is seated correctly.
7 Remove nut from screw (7) and pull out screw (7). IMPORTANTSPECIAL TOOL Use screwdriver bit if a screw (7) with a multi-point socket is installed.
    TORQUE SPECIFICATION Model 293Bolt, thrust arm to wheel carrier *BA35.20-P-1002-05L
    TORQUE SPECIFICATION Model 205, 213 (except 213.064/088/089/264/288/289), 253 (except 253.388/389/988/989) Bolt, thrust arm to wheel carrier *BA35.20-P-1002-05J
    SPECIAL TOOL Screwdriver bit Fig 2
8 Remove nut (8) and pull out screw. IMPORTANTSPECIAL TOOL Use screwdriver bit if a screw with a multi-point socket is installed.
    TORQUE SPECIFICATION Model 293Bolt, thrust arm to rear axle carrier *BA35.20-P-1001-05L
    TORQUE SPECIFICATION Model 205, 213 (except 213.064/088/089/264/288/289), 253 (except 253.388/389/988/989) Bolt, thrust arm to rear axle carrier *BA35.20-P-1001-05J
    SPECIAL TOOL Screwdriver bit Fig 2
9 Remove thrust arm (10).
10 Remove covers (1, 2) from thrust arm (10). Model 205 (except 205.386/387/486/487)
Model 213 (except 213.064/088/089/264/288/289)
Model 253 (except 253.388/389/988/989)
Model 293
INSPECT Check
11 Check elastomer bearing of thrust arm (10) in wheel carrier (9). In the event of a problem,
↓
Replace elastomer bearing of thrust arm (10) in wheel carrier (9).
    Model 205.386/387/486/487 AR35.20-P-3403LWI
    Model 205 (except 205.386/387/486/487)
Model 213 (except 213.064/088/089/264/288/289)
Model 253 (except 253.388/389/988/989)
Model 293		 AR35.20-P-0105-01LW
    SPECIAL TOOL Model 205 (except 205.386/387/486/487)
Model 213 (except 213.064/088/089/264/288/289)
Model 253 (except 253.388/389/988/989)
Model 293
Extraction and insertion tool		 Fig 3
12 Check thrust arm (10) for condition and damage. In the event of a problem,
↓
Replace thrust arm (10).
13 Check elastomer bearing in thrust arm. In the event of a problem,
↓
replace elastomer bearing.
14 Install in the reverse order.
MEASURING Measure
15 Perform chassis alignment. Model 205.386/387/486/487 AR40.20-P-0200LW
REAR AXLE CARRIER

Number Designation Model 205 Model 213
BA35.10-P-1001-01H Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly Stage 1 Nm 100 100
Stage 2: Loosen ∠° 180 180
Stage 3 Nm 100 100
Stage 4 ∠° 90 90
REAR AXLE CARRIER

Number Designation Model 253
BA35.10-P-1001-01H Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly Stage 1 Nm 100
Stage 2: Loosen ∠° 180
Stage 3 Nm 100
Stage 4 ∠° 90
REAR AXLE CARRIER

Number Designation Model 293
BA35.10-P-1001-01T Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly Stage 1 Nm 100
Stage 2: Loosen ∠° 180
Stage 3 Nm 100
Stage 4 ∠° 90
REAR AXLE CARRIER

Number Designation Model 205 Model 213
BA35.10-P-1003-01H Bolt, stop plate to body Nm 35 35
REAR AXLE CARRIER

Number Designation Model 253
BA35.10-P-1003-01H Bolt, stop plate to body Nm 35
REAR AXLE CARRIER

Number Designation Model 293
BA35.10-P-1003-01T Bolt, stop plate to body Nm 35
THRUST ARM

Number Designation Model 205 Model 213
BA35.20-P-1001-05J Bolt, thrust arm to rear axle carrier Rear axle carrier (aluminum) Stage 1 Nm 80 80
Stage 2 ∠° 90 90
Rear axle carrier (steel) Stage 1 Nm 50 50
Stage 2 ∠° 90 90
THRUST ARM

Number Designation Model 253
BA35.20-P-1001-05J Bolt, thrust arm to rear axle carrier Rear axle carrier (aluminum) Stage 1 Nm 80
Stage 2 ∠° 90
Rear axle carrier (steel) Stage 1 Nm 50
Stage 2 ∠° 90
THRUST ARM

Number Designation Model 293
BA35.20-P-1001-05L Bolt, thrust arm to rear axle carrier Stage 1 Nm 50
Stage 2 ∠° 90
THRUST ARM

Number Designation Model 205 Model 213
BA35.20-P-1002-05J Bolt, thrust arm to wheel carrier Stage 1 Nm 50 50
Stage 2 ∠° 90 90
THRUST ARM

Number Designation Model 253
BA35.20-P-1002-05J Bolt, thrust arm to wheel carrier Stage 1 Nm 50
Stage 2 ∠° 90
THRUST ARM

Number Designation Model 293
BA35.20-P-1002-05L Bolt, thrust arm to wheel carrier Stage 1 Nm 50
Stage 2 ∠° 90
Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)
G12819533Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Extraction And Insertion Tool (204 589 03 43 00)
G11128794Courtesy of MERCEDES-BENZ USA
