Remove/Install Rear Track Rod - AR35.20-P-0109MND

Model 213.064/264

Left tie rod shown

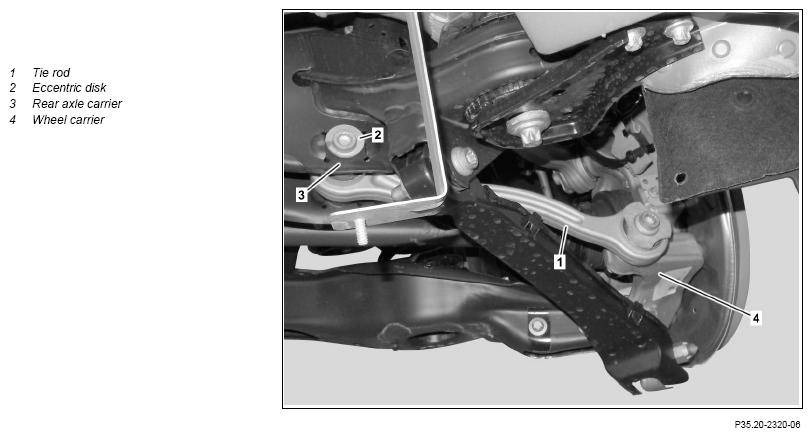

Fig 1: Rear Tie Rod Components Location - Model 213.064/264 (Left Tie Rod Shown)

Courtesy of MERCEDES-BENZ USA

	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove rear wheel		AR40.10-P-1102A
2	Detach underfloor paneling in area of tie rod (1)		AR61.30-P-1001LWE
3	Mark installation position of eccentric disk (2)	The toe-in is set at the factory using the eccentric disk (2).
4	Remove tie rod (1) from rear axle carrier (3)	Screwdriver bit	Fig 2
5	Detach tie rod (1) from wheel carrier (4) and remove	Screwdriver bit	Fig 2
	Install
6	Check tie rod (1) for condition and signs of damage	When reinstalling tie rod (1). If a problem arises ↓ Replace tie rod (1).
7	Mount tie rod (1) onto wheel carrier (4)	Bolt, tie rod to wheel carrier	*BA35.20-P-1001-04M
		Screwdriver bit	Fig 2
8	Mount tie rod (1) onto rear axle carrier (3)	Observe the marking on the eccentric disk (2). Self-locking nut, tie rod to rear axle carrier	*BA35.20-P-1002-04M
		Screwdriver bit	Fig 2
9	Fasten underfloor paneling in area of tie rod (1)		AR61.30-P-1001LWE
10	Remount the rear wheel		AR40.10-P-1102A
11	Perform wheel alignment check		AR40.20-P-0200LW

TIE ROD

Number	Designation			Model 213
BA35.20-P-1001-04M	Bolt, tie rod to wheel carrier	Stage 1	Nm	50
		Stage 2	∠°	90

TIE ROD

Number	Designation				Model 213
BA35.20-P-1002-04M	Self-locking nut, tie rod to rear axle carrier	When removing the tie rod	Stage 1	Nm	50
			Stage 2	∠°	90
		When adjusting the toe		Nm	110

Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
