Remove/Install Rear Track Rod - AR35.20-P-0109LW
Model 213 (except 213.064/088/089/264/288/289)
Shown on left side of vehicle

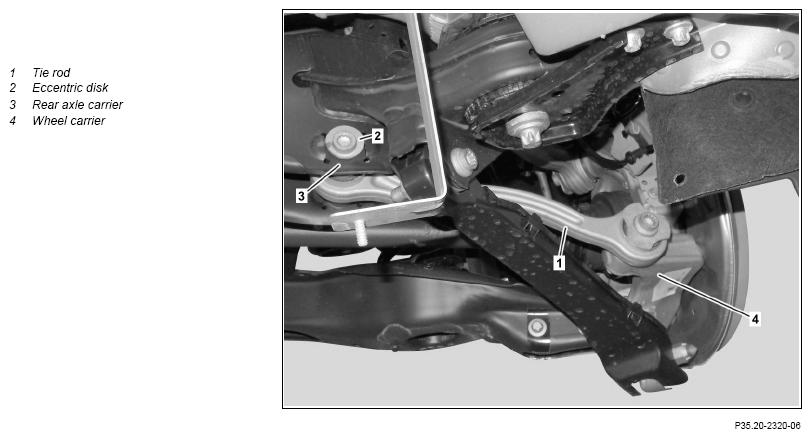

Fig 1: Tie Rod Components Location - Model 213 (Except 213.064/088/089/264/288/289) (Shown On Left Side Of Vehicle)
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove rear wheel | AR40.10-P-1102A | |
| 2 | Detach underfloor paneling in area of tie rod (1) | AR61.30-P-1001LWE | |
| 3 | Mark installation position of eccentric disk (2) | ||
| 4 | Remove tie rod (1) from rear axle carrier (3) | *BA35.20-P-1002-04M | |
| Fig 2 | |||
| 5 | Detach tie rod (1) from wheel carrier (4) and remove | *BA35.20-P-1001-04M | |
| Fig 2 | |||
| Check | |||
| 6 | Check tie rod (1) for condition and signs of damage | If a problem arises ↓ Replace tie rod (1). |
|
| 7 | Install in the reverse order | ||
| 8 | Perform wheel alignment check | AR40.20-P-0200LW |
TIE ROD
| Number | Designation | Model 213 | ||
|---|---|---|---|---|
| BA35.20-P-1001-04M | Bolt, tie rod to wheel carrier | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 90 | ||
TIE ROD
| Number | Designation | Model 213 | |||
|---|---|---|---|---|---|
| BA35.20-P-1002-04M | Self-locking nut, tie rod to rear axle carrier | When removing the tie rod | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 90 | |||
| When adjusting the toe | Nm | 110 | |||
