Remove/Install Rear Spring Control Arm - AR35.20-P-0119MNE

Model 213.088/089/288/289

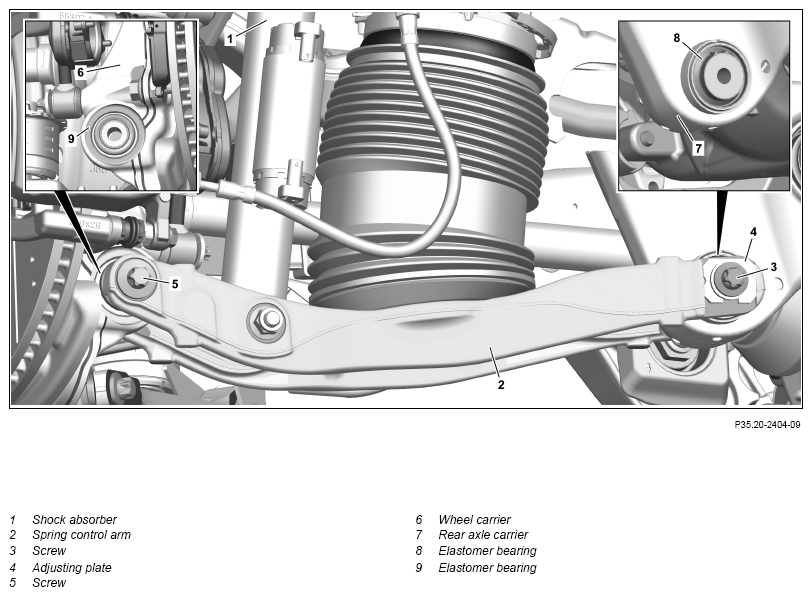

Shown on left spring link (2)

Fig 1: Rear Spring Control Arm Components Location - Model 213.088/089/288/289 (Shown On Left Side Of Vehicle)

Courtesy of MERCEDES-BENZ USA

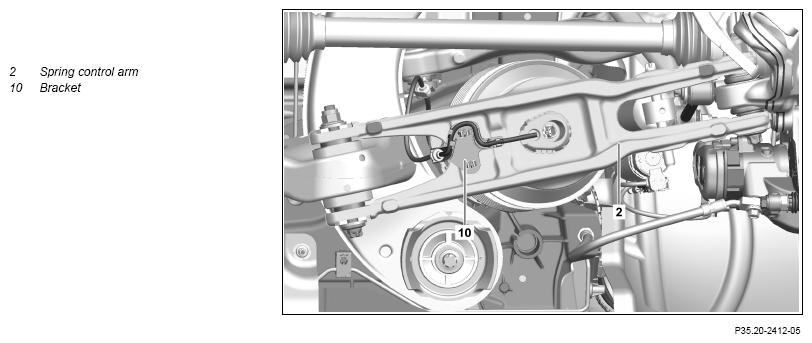

Shown on left spring link (2)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove air spring	Model 213.088/089/288/289 with code 489 (AIRMATIC)	AR32.22-P-1500MNE
2	Remove rear axle brake caliper, hook up to one side and detach lower sliding bolt from brake caliper support	Do not remove brake hoses.	AR42.10-P-0080LW
3	Detach shock absorber (1) from spring link (2)		AR32.25-P-0110LW
4	Unscrew nut and pull screw (3) out of spring link (2)	The screwdriver bit is to be used when a screw (3) with a multi-socket tooth profile is fitted.
		Screwdriver bit	Fig 2
5	Unscrew nut and pull screw (5) out of spring link (2)	The screwdriver bit is to be used when a bolt (5) with multi-point socket profile is installed.
		Screwdriver bit	Fig 2
6	Remove spring link (2) from wheel carrier (6) and from rear axle carrier (7)
7	Detach bracket (10) from spring link (2)	When replacing the spring control arm (2).
	Check
8	Check that elastomer bearing (8) in rear axle carrier (7) is in good condition and undamaged	If there are problems ↓ Replace elastomer bearing (8).	AR35.20-P-3405MNE
9	Check that elastomer bearing (9) in rear axle carrier (6) is in good condition and undamaged	If there are problems ↓ Replace elastomer bearing (9).	AR35.20-P-3401MNE
	Install
10	Mount bracket (10) onto spring link (2)	When replacing the spring control arm (2).
11	Position spring link (2) on rear axle carrier (7) and wheel carrier (6)
12	Position bolt (5) in spring link (2) and tighten nut	The screwdriver bit is to be used when a bolt (5) with multi-point socket profile is installed.
		Bolt, spring control arm to wheel carrier	*BA35.20-P-1002-01I
		Screwdriver bit	Fig 2
13	Position bolt (3) in spring link (2) and screw on nut up to contact surface	Fully tighten bolt (3) after wheel alignment measurement. The screwdriver bit is to be used when a screw (3) with a multi-socket tooth profile is fitted. Replace adjusting plate (4). Make sure that the adjusting plate (4) is seated correctly and in the correct installation position.
		Screwdriver bit	Fig 2
14	Mount shock absorber (1) onto spring link (2)		AR32.25-P-0110LW
15	Insert lower sliding bolt into brake caliper support and mount rear axle brake caliper		AR42.10-P-0080LW
16	Install air spring	Model 213.088/089/288/289 with code 489 (AIRMATIC)	AR32.22-P-1500MNE
17	Perform wheel alignment check		AR40.20-P-0200LW
18	Fully tighten bolt (3)	The screwdriver bit is to be used when a screw (3) with a multi-socket tooth profile is fitted.
		Bolt, spring control arm to rear axle carrier	*BA35.20-P-1001-01I

Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
