Remove/Install Rear Spring Control Arm - AR35.20-P-0119MND

Model 213.064/264

Shown on left spring link (4)

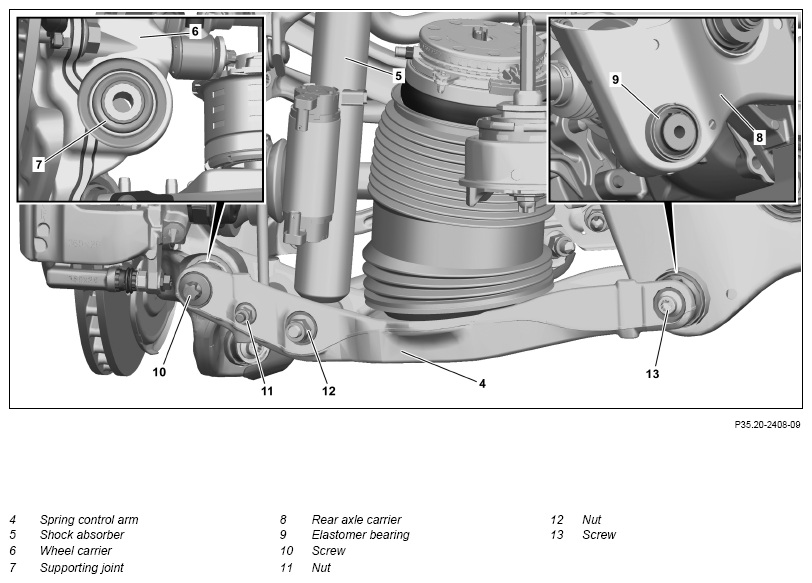

Fig 1: Rear Spring Control Arm Components Location - Model 213.064/264 (Shown On Left Side Of Vehicle)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove air spring	Model 213.064/264 with code 489 (AIRMATIC)	AR32.22-P-1500MNE
2	Unscrew nut (11) and pull bolt of stabilizer bar linkage out of spring control arm (4)
3	Unscrew nut (12) and pull bolt of shock absorber (5) out of spring control arm (4)		AR32.25-P-0110LW
4	Unscrew nut and remove screw (10) from spring link (4)	The screwdriver bit is to be used when a screw (10) with a multi-socket tooth profile is installed.
		Screwdriver bit	Fig 2
5	Unscrew nut, pull bolt (13) out of spring link (4) and remove spring link (4)	The screwdriver bit is to be used when a bolt (13) with a multi-socket tooth profile is fitted.
		Screwdriver bit	Fig 2
	Check
6	Check that elastomer bearing (9) in rear axle carrier (8) is in good condition and undamaged	If a problem arises ↓ Replace elastomer bearing (9).	AR35.20-P-3405MNE
7	Check that supporting ball joint (7) in wheel carrier (6) is in good condition and undamaged	If a problem arises ↓ Replace supporting joint (7).	AR35.20-P-0116LW
	Install
8	Position spring link (4)
9	Position screw (13) in spring link (4) and tighten nut	The screwdriver bit is to be used when a bolt (13) with a multi-socket tooth profile is fitted.
		Bolt, spring control arm to rear axle carrier	*BA35.20-P-1001-01I
		Screwdriver bit	Fig 2
10	Position bolt (10) in spring link (4) and tighten nut	The screwdriver bit is to be used when a screw (10) with a multi-socket tooth profile is installed.
		Bolt, spring control arm to wheel carrier	*BA35.20-P-1002-01I
		Screwdriver bit	Fig 2
11	Mount shock absorber (5) onto spring link (4), position bolt and tighten nut (12)		AR32.25-P-0110LW
12	Position torsion bar linkage on spring link (4) and tighten nut (11)	Nut, torsion bar linkage to spring control arm	*BA32.20-P-1003-04S
13	Install air spring	Model 213.064/264 with code 489 (AIRMATIC)	AR32.22-P-1500MNE
14	Perform wheel alignment check		AR40.20-P-0200LW

REAR AXLE TORSION BAR

Number	Designation			Model 213 (except 213.088/089/288/289) except code 489 (AIRMATIC)	Model 213 (except 213.088/089/288/289) with code 489 (AIRMATIC)
BA32.20-P-1003-04S	Nut, torsion bar linkage to spring control arm	Stage 1	Nm	20	35
		Stage 2	∠°	180	120

SPRING CONTROL ARM

Number	Designation			Model 213
BA35.20-P-1001-01I	Bolt, spring control arm to rear axle carrier	Stage 1	Nm	80
		Stage 2	∠°	90

SPRING CONTROL ARM

Number	Designation			Model 213
BA35.20-P-1002-01I	Bolt, spring control arm to wheel carrier	Stage 1	Nm	80
		Stage 2	∠°	90

Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
