Remove/Install Inserted Rear Axle Shaft - AR35.30-P-0621MNE

Model 213.088/089/288/289

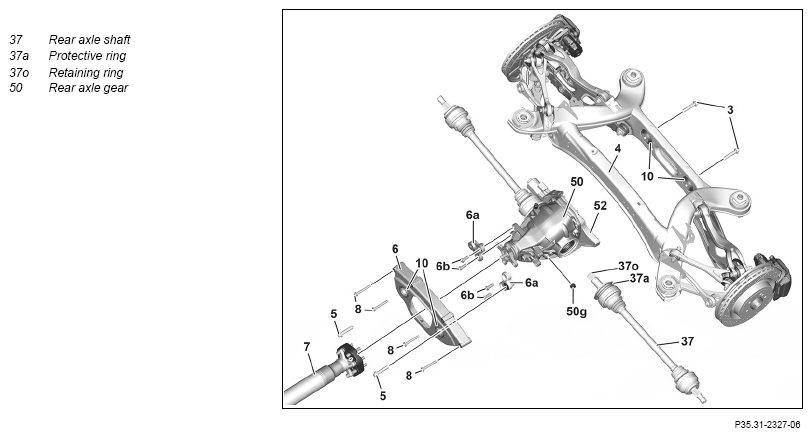

Fig 1: Rear Axle Shaft (Inserted) Components Location - Model 213.088/089/288/289

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Secure vehicle on vehicle lift	Only release vehicle after leak test.	AR00.60-P-0100CW
2	Remove corresponding rear wheel and tire assembly		AR40.10-P-1102A
3	Remove wheel carrier		AR35.20-P-0115MNE
4	Pry rear axle shaft (37) out of rear axle differential (50)	Do not position lever on protective ring (37a). Otherwise damage will occur. Support lever, e.g. using a socket wrench, on rear axle differential (50).
5	Take out rear axle shaft (37)	Replace locking ring (37o) on inner spline profile.
6	Replace radial shaft sealing ring in rear axle differential (50)		AR35.30-P-4651OLC
7	Check constant velocity joints for damage	If a problem arises ↓ Replace rear axle shaft (37).
8	Check boots for damage	If a problem arises ↓ Replace corresponding boot.	AR35.30-P-0662-01OLC
		Filling capacity for joint housing	*BF35.30-P-1001-01G
9	Install in the reverse order
10	Check oil level in rear axle differential (50) and correct, if necessary		AR35.31-P-0520-08MNE
		Filling capacity for rear axle differential with differential lock	*BF35.31-P-1003-02C
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Oil filler screw of rear axle differential	*BA35.31-P-1002-02H
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Perform engine test run; when doing so, check rear axle differential (50) for leak tightness
12	Disconnect vehicle from vehicle lift		AR00.60-P-0100CW
13	Perform wheel alignment check		AR40.20-P-0200LW

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 213
BA35.31-P-1002-02H	Oil filler screw of rear axle differential	Nm	50

REAR AXLE SHAFT, PLUGGED IN SHAFTS

Number	Designation			Model 213 Plugged in shafts
BF35.30-P-1001-01G	Filling capacity for joint housing	Ø82	g	80
		Ø95	g	100
		Ø102	g	120
		Ø106	g	130
		Ø112	g	140
		Ø116	g	150

REAR AXLE GEAR

Number	Designation		Model 213.088/089/288/28 9
BF35.31-P-1003-02C	Filling capacity for rear axle differential with differential lock	Liter	1, 2
BF35.31-P-1003-02C	Specification		BB00.40-P-0235-61A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
BR00.45-Z-1061-01A	Sealant, Omnifit 100H (50 g)	A 002 989 23 71
