Remove/Install Air Intake Pipe - AR09.10-P-8131MRD

Engine 274.9 in model 213

Engine 274.9 in model 238

Shown on ENGINE 274.910 in MODEL 213

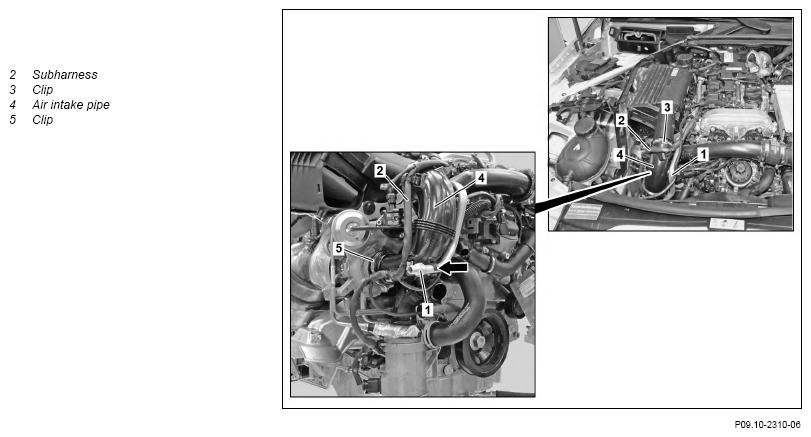

Fig 1: Air Intake Pipe Components Location - Engine 274.9 In Model 213 (Engine 274.910 Shown)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  due to fan starting unexpectedly	Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes.	AS20.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove
1	Remove upper engine cover
2	Remove engine air intake duct upstream of air filter
3	Detach partial load throttle bleed line from air intake pipe (4)
4	Release and disconnect electrical connection for wide open throttle vent line heater element
5.1	Detach wide open throttle vent line from wide open throttle vent line heater element	Engine 274.9 in model 213 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) Engine 274.9 in model 238 except code 945 (China Stage 6 exhaust treatment)	AR01.20-P-0020MRD
5.2	Remove wide open throttle bleed line with oil separator	Engine 274.9 in model 213 with code 494 (US version) Engine 274.9 in model 213 with code 945 (China Stage 6 exhaust treatment) The wide open throttle vent line, the oil separator and the air intake pipe (4) are firmly connected together and can only be removed together.	AR01.20-P-0002MRX
6	Unclip subharness (2) at air intake pipe (4)
7	Release clamps (3, 5) and detach air intake pipe (4)
8	Remove compensation ring between air intake pipe (4) and exhaust gas turbocharger from exhaust gas turbocharger
	Install
9	Install new compensating ring in the fitting of the air intake pipe (4) and wet with lubricant	Lubricant	*BR00.45-Z-1032-06A
10	Position air intake pipe (4)
11	Tighten clamps (3, 5)
12	Clip subharness (2) into air intake pipe (4)
13.1	Push wide open throttle vent line onto wide open throttle vent line heater element	Engine 274.9 in model 213 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) Engine 274.9 in model 238 except code 945 (China Stage 6 exhaust treatment)	AR01.20-P-0020MRD
13.2	Install wide open throttle bleed line with oil separator	Engine 274.9 in model 213 with code 494 (US version) Engine 274.9 in model 213 with code 945 (China Stage 6 exhaust treatment)	AR01.20-P-0002MRX
14	Connect electrical connector of wide-open-throttle bleed line heating element
15	Push partial load vent line onto air intake pipe (4)
16	Install engine air intake duct upstream of air filter
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
17	Perform an engine test run and check engine for proper operation and leaktightness
18	Install upper engine cover
