Replace Full-Load Crankcase Ventilation System - AR01.20-P-0002MRX
Engine 274 in model 172, 205, 213, 253
with code 494 (US version)
Engine 274 in model 172, 205, 213, 253
with code 945 (China Stage 6 exhaust treatment)

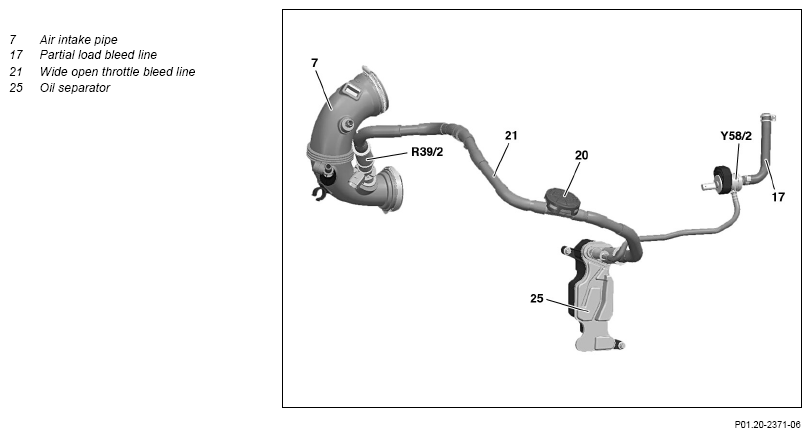

Fig 1: Crankcase Ventilation System Bleed Lines Components Location - Engine 274 In Model 213 (With Code 494 Or 945)
| Remove/install | |||
| 1 | Remove wide open throttle bleed line (21) | Engine 274 in model 172, 205, 213, 253 with code 494 (US version) Engine 274 in model 172, 205, 213, 253 with code 945 (China Stage 6 exhaust treatment) |
|
Do not disconnect wide open throttle bleed line (21), partial load throttle bleed line (17), oil separator (25) and air intake pipe (7). Leaks can occur otherwise. In the event of damage to the full load bleed line (21), the partial load bleed line (17), the oil separator (25), or the air intake pipe (7), ↓ Replace the wide open throttle bleed line (21), the partial load vent line (17), the oil separator (25) or the air intake pipe (7) completely. |
AR01.20-P-9692MRU | ||
| 2 | Install in the reverse order |
