Remove/Install Transmission Suspension - AR27.10-P-1000MNB

Transmission 700.4 In Model 190

Courtesy of MERCEDES-BENZ USA

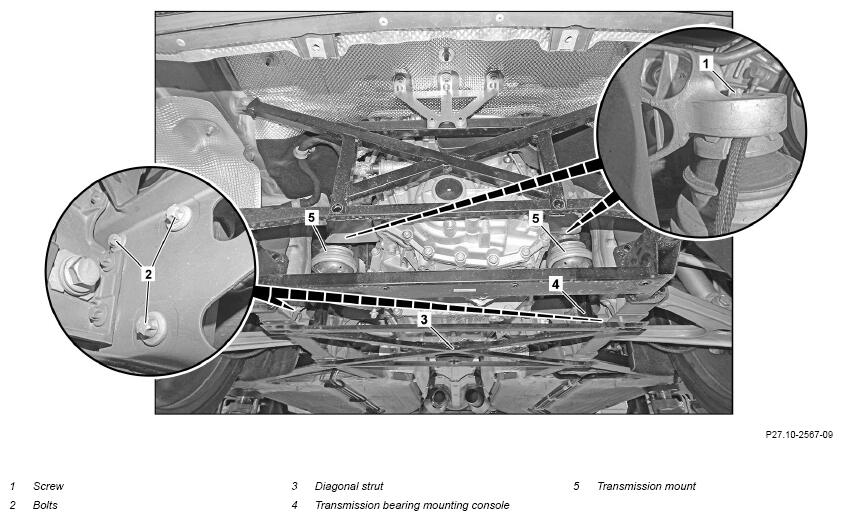

Shown on Model 190 except code P71 (AMG DYNAMIC PLUS package), right Transmission mount

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-0100RG
2	Remove underfloor paneling		AR61.30-P-1001RG
3	Remove diagonal strut (3)	Bolt/nut, rear reinforcement under exhaust system to longitudinal member	*BA61.10-P-1003-01I
4	Prop up transmission and secure against falling down
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
5	Separate electrical connection at transmission mounts (5)	Model 190 with transmission 700.4 with code P71 (AMG DYNAMIC PLUS package)
6	Unscrew bolt (1) from transmission mounts (5)	Model 190 with transmission 700.4 with code P71 (AMG DYNAMIC PLUS package)
		Two bolts (1) are installed.
		Replace bolt (1).
		Bolt, transmission mount to transmission carrier	*BA27.10-P-1001-04E
7	Unscrew bolts (2) of transmission mounting consoles (4) and remove transmission mounts (5) with transmission mounting consoles (4) towards the side	Bolt, transmission mounting console to body	*BA27.10-P-1007-04E
8	Detach transmission mounts (5) from transmission mounting consoles (4)	When replacing transmission mounts (5).
		Bolt, transmission mount to transmission bearing bracket	*BA27.10-P-1002-04E
9	Detach transmission carrier from transmission	When replacing the transmission.
		Bolt, transmission carrier to transmission	*BA27.10-P-1003-04E
10	Install in the reverse order.
