Remove/Install Front Stabilizer Bar Linkage - AR32.35-P-3330RG

Model 190

Shown on right side of vehicle except code M032 (Black Series version)

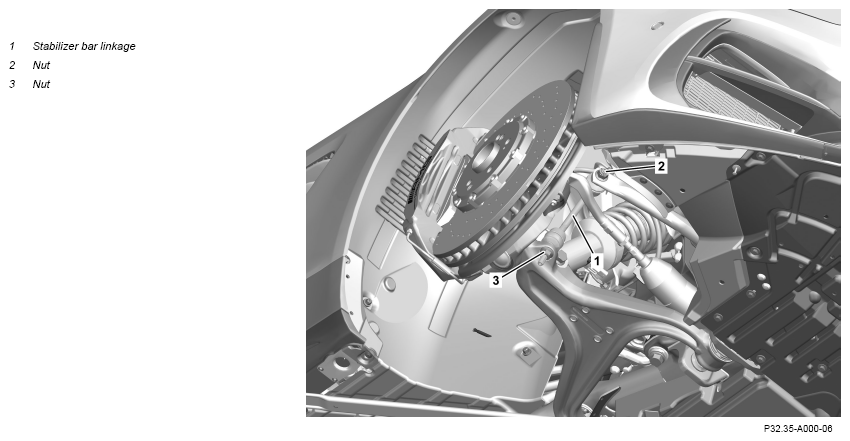

Fig 1: Front Stabilizer Bar Linkage Components Location - Model 190 (Shown On Right Side Of Vehicle Except Code M032)

Courtesy of MERCEDES-BENZ USA

Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1.1	Remove corresponding front wheel.	Model 190 except code M032 (Black Series version)
			AR40.10-P-1100RQ
1.2	Remove rear guide vane from front axle.	Model 190 with code M032 (Black Series version)
			AR42.10-P-0102RG
2	Remove nut (3) of torsion bar linkage (1) at lower transverse control arm.	Nut, torsion bar linkage to lower transverse control arm	*BA32.35-P-1002-02C
3	Remove nut (2) of torsion bar linkage (1) at stabilizer.	Nut, torsion bar linkage to stabilizer bar	*BA32.35-P-1001-02C
4	Remove torsion bar linkage (1).	Handle carbon stabilizer (1) carefully. It may be damaged otherwise.
		Model 190 with code 478 (AMG RIDE CONTROL)
		Installation  : Secure torsion bar linkage (1) in outer bore of stabilizer.
		Model 190 with code M032 (Black Series version)
		Installation  : Secure torsion bar linkage (1) in inner bore of stabilizer.
	Check
5	Check ball heads of torsion bar linkage (1) and their boots for condition and damage.	If there is a problem, ↓ replace torsion bar linkage (1).
6	Install in the reverse order.
