Remove/Install Rear Guide Vane On Front Axle - AR42.10-P-0102RG

Model 190

with code M030 (GT R version)

Model 190

with code M032 (Black Series version)

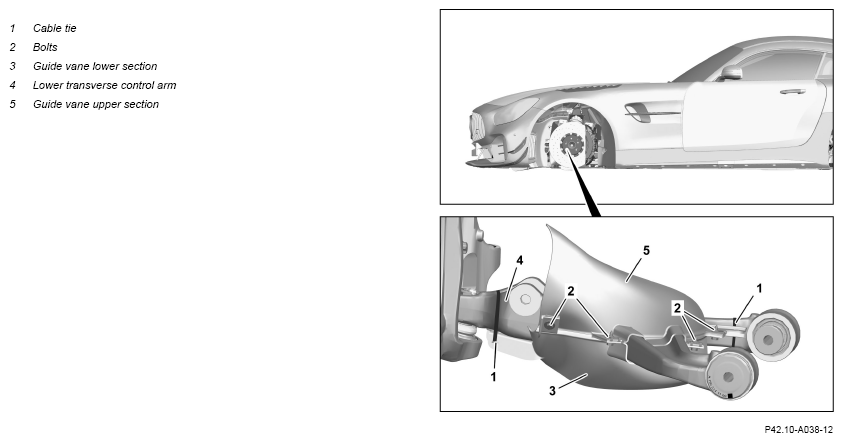

Shown on model 190 with code PAP (Mercedes-AMG GT R PRO)

Courtesy of MERCEDES-BENZ USA

Shown on model 190 with code M032 (Black Series version)

Courtesy of MERCEDES-BENZ USA

Topical note	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Topical note	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Lift vehicle with vehicle lift.		AR00.60-P-1006A
2	Turn front wheel all the way to the outside.
3	Disconnect and remove cable ties (1).
4	Remove bolts (2).
5	Remove guide vane upper section (5).
6	Disconnect and remove cable tie and remove guide vane lower section (3) from torsion bar linkage (6).	Model 190 with code M032 (Black Series version)
7	Remove guide vane lower section (3).
	Install
8	Position guide vane lower section (3) on lower control arm (4).
9	Attach guide vane lower section (3) to torsion bar linkage (6) and secure with new cable tie.	Model 190 with code M032 (Black Series version)
		Pliers	Fig 1
10	Position guide vane upper section (5) on guide vane lower section (3).
11	Screw in screw/bolts (2).
12	Install new cable ties (1).	Pliers	Fig 1
13	Lower vehicle.		AR00.60-P-1006A

Fig 1: Identifying Pliers (164 589 01 37 00)

Courtesy of MERCEDES-BENZ USA
