Remove/Install Steering System Expansion Reservoir - AR46.25-P-1000RG
Model 190
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure.Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Notes on working in engine compartment | AH60.00-P-0042-01RG | ||
| Remove/install | |||
| 1 | Open engine hood, move to upright position and close | AR88.40-P-1000RG | |
| 2 | Remove upper engine cover over expansion reservoir (2) | Do not tilt upper engine cover, but lift it off vertically toward top. Otherwise, the retaining lugs may break off. |
|
| 3 | Unscrew cover from expansion reservoir (1) and extract hydraulic fluid from expansion reservoir (2) | Before opening the hydraulic system the area around the separation point should be cleaned thoroughly. Otherwise, even the smallest particles, introduced into the hydraulic system may lead to component malfunctions and a total failure of the hydraulic system. |
|

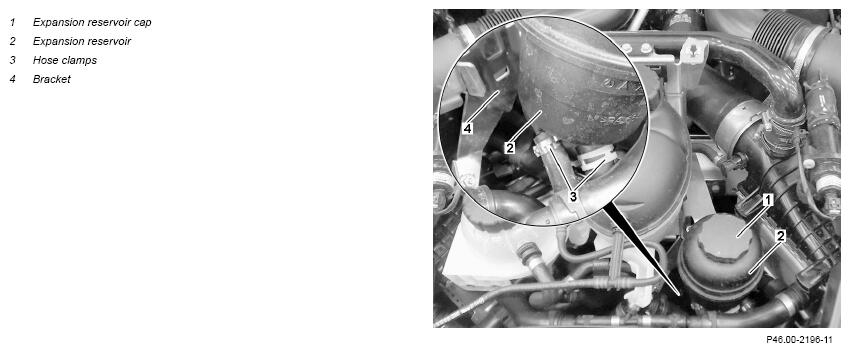

| Fig 2 | |||
| 4 | Pull expansion reservoir (2) upwards out of bracket (4) | ||
| 5 | Release hose clamps (3) and detach hydraulic hoses from expansion reservoir (2) | ||
| Fig 1 | |||
| 6 | Remove expansion reservoir (2) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Fill power steering pump and bleed | AR46.30-P-0010RG | |
| 9 | Visually inspect for leaks with engine running |
