Remove/Install Refrigerant Line Between Condenser And Front Connecting Point - AR83.30-P-7816RG

Model 190

MODIFICATION NOTES

08.07.2020	Special tool Inserted.	Operation step 3, 7
08.07.2020	Mode 190.381 included.

Courtesy of MERCEDES-BENZ USA

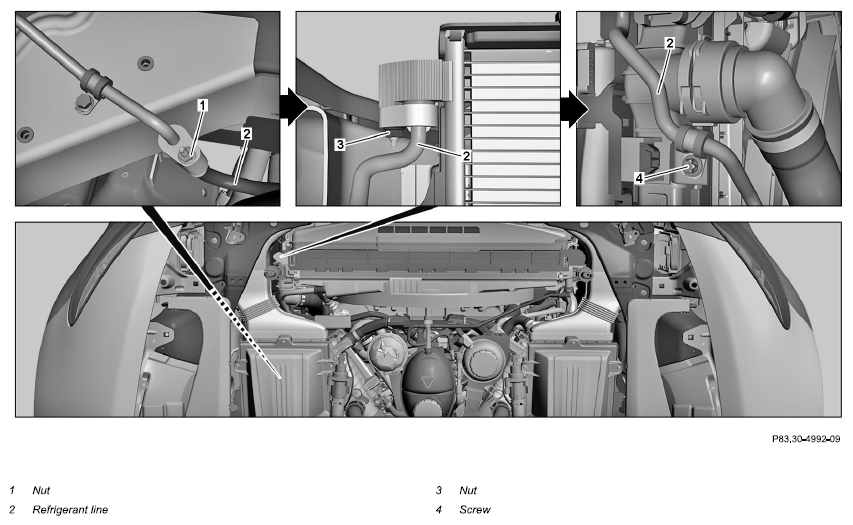

Shown on model 190 (except 190.381)

	Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 190 with code 2U8 (Alternative refrigerant)	AS83.00-Z-0007-01A
	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 190 except code 2U8 (Alternative refrigerant)	AS83.00-Z-0006-01A
Notice	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01KOA
Notice	Procedure for a damaged or leaky air conditioning system		AH83.30-P-0004-01KOA
Notice	Notes on working in engine compartment		AH60.00-P-0042-01RG
	Notes on handling refrigerant R1234yf	Model 190 with code 2U8 (Alternative refrigerant)	AH83.30-P-0003-02A
	Notes on handling refrigerant R134a	Model 190 except code 2U8 (Alternative refrigerant)	AH83.30-P-0003-01KOA
	Remove/install
1	Remove left air filter housing.		AR09.10-P-1151MNJ
		Model 190.381 with engine 178.9
		Model 190 (except 190.381) with engine 178	AR09.10-P-1150MNB
2	Discharge air conditioning system.		AR83.30-P-1760RQ
3	Remove nut (1) and remove refrigerant line (2) at connecting point.
	Compressor oils (specification 362.1)		BB00.40-P-0362-01A
		Replace sealing ring and moisten with compressor oil.
		Nut/bolt, refrigerant line to condenser/separating point	*BA83.30-P-1006-01M
		Assembly tool	Fig 1
4	Seal opening of refrigerant line (2) and opposite refrigerant line using suitable stop plugs.	The opening of the refrigerant line (2) and the connecting point must be sealed. Otherwise penetrating dirt and moisture will damage the components that are connected to the refrigerant circuit.
		Record plug	Fig 2
5.1	Remove screw (4) and remove holder.	Model 190 (except 190.381)
5.2	Remove refrigerant line (2) from longitudinal member.	Model 190.381
		Nut/bolt, refrigerant line to longitudinal member	*BA83.30-P-1008-01M
6	Remove the coolant expansion reservoir and place to one side with lines attached.	Model 190.381
			AR20.30-P-4950MNB
7	Remove nut (3) and remove refrigerant line (2).
	Compressor oils (specification 362.1)		BB00.40-P-0362-01A
		Replace sealing ring and moisten with compressor oil.
		Nut/bolt, refrigerant line to condenser/separating point	*BA83.30-P-1006-01M
		Assembly tool	Fig 1
8	Seal opening of refrigerant line (2) and condenser using suitable stop plugs.	The opening of the refrigerant line (2) and the condenser must be sealed. Otherwise penetrating dirt and moisture will damage the components that are connected to the refrigerant circuit.
		Record plug	Fig 2
9	Install in the reverse order
	Check
10	Evacuate air conditioning system, refill it, and check it for proper operation and leak tightness.		AR83.30-P-1760RQ
