Check All Visible Parts Of Vehicle Underside For Damage And Fluid Loss - AP00.20-P-0054D
Model 190

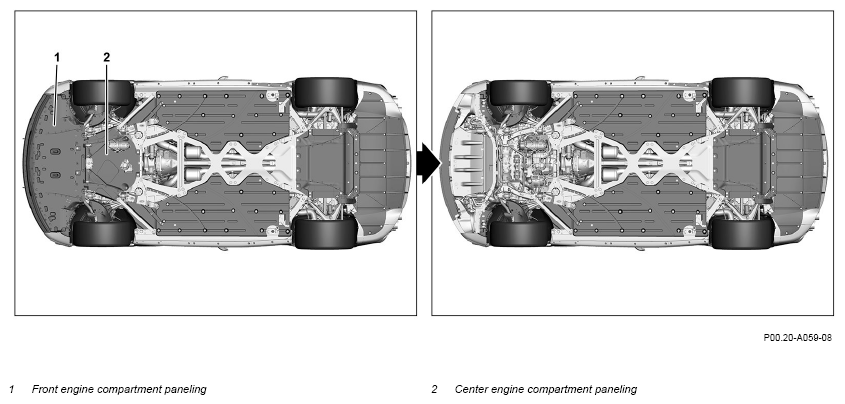

Shown on model 190.379

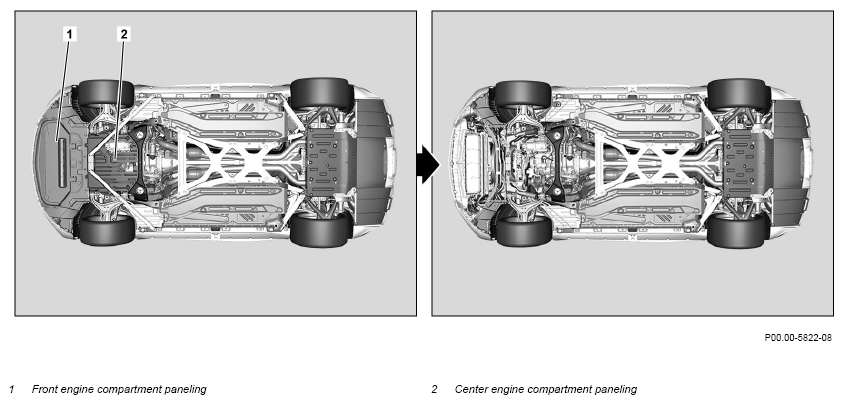

Shown on model 190.381
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on evaluating leakages | AH00.00-P-0011-01KOA | ||
| Remove | |||
| 1 | Remove front engine compartment lining (1) and center engine compartment lining (2). | ||
| Model 190 (except 190.381) | AR61.20-P-1105RG | ||
| Model 190.381 | AR61.20-P-1105RGB | ||
| Check | |||
| 2 | Check visible systems, powertrain components, lines, hoses on the underfloor for damage, correct routing, leaks, correct mounting and corrosion. | Spring elements, Shock absorber, Suspension lines and sensors, Steering, Front axle, Engine and mounted major assemblies, Cooling system, Heater and A/C system, Transmission, Exhaust system, Exhaust aftertreatment, Heat shields, Rear axle, Rear axle shafts with boots, Rear axle differential, Housing of drive shaft, Fuel system. If problems are determined, ↓ rectify the problems. |
|
| 3 | Check underfloor and visible component parts on underfloor for damage, routing, mounting and corrosion. | Underfloor paneling, Air ducting on underbody paneling, Positioning rails on underbody paneling, Underfloor. If problems are determined, ↓ rectify the problems. |
|
| 4 | Check visible body panels for corrosion and. deformation. | Front axle carrier, Rear axle carrier, Chassis steering arms, Underfloor body panels, Body reinforcements. If problems are determined, ↓ proceed in accordance with the country-specific regulations for mobility and body shell complaints. |
|
| 5 | Check underfloor paneling for damage from driving over obstacles or from bottoming damage. | If it is suspected that there is damage from driving over obstacles or bottoming, ↓ check steering for mechanical damages. If the steering is mechanically damaged, ↓ Replace steering for safety reasons. |
|
| Install | |||
| 6 | Install front engine compartment lining (1) and center engine compartment lining (2). | ||
| Model 190 (except 190.381) | AR61.20-P-1105RG | ||
| Model 190.381 | AR61.20-P-1105RGB |
