Check All Visible Parts In Engine Compartment For Damage And Fluid Loss - AP00.20-P-0055B
Model 190
Shown on model 190.3 without code M032 (Black Series version)
Shown on model 190.381
| Notes on evaluating leakages | AH00.00-P-0011-01KOA | ||
| Preparatory activity | |||
| 1 | Open hood. | ||
| AR88.40-P-1000RG | |||
| Remove | |||

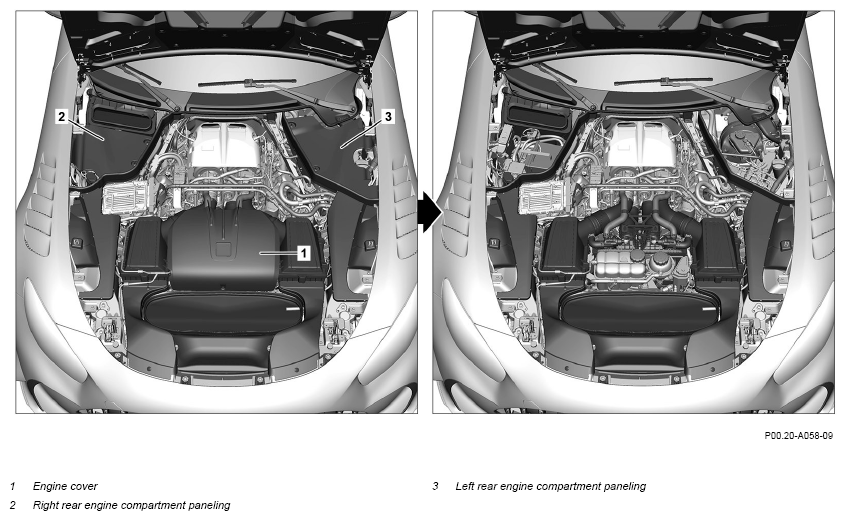

| 2 | Remove left rear engine compartment trim (3). | ||
| 3 | Remove right rear engine compartment trim (2). | ||

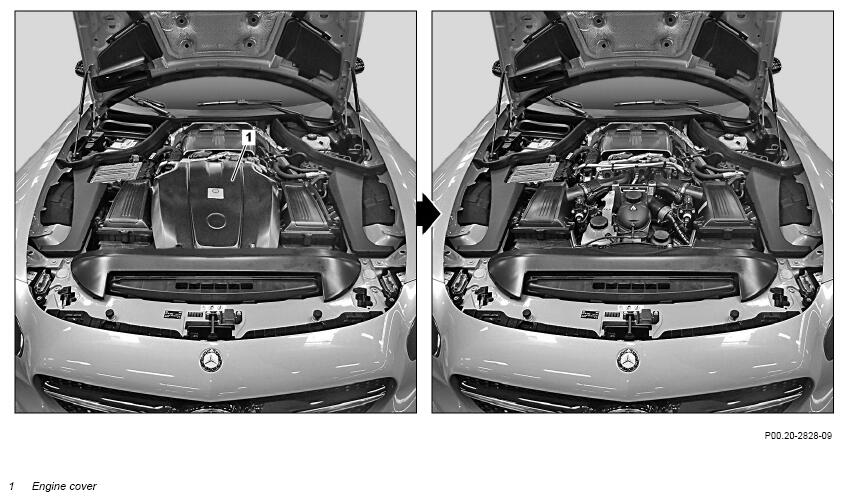

| 4 | Remove engine cover (1). | Model 190 Model 190 with engine 178 with code M032 (Black Series version) |
AP01.10-P-2405-01GT |
| Check | |||
| 5 | Check visible systems and component parts in the engine compartment for condition, fluid loss and mounting. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 Exhaust system, Cooling system, Heater and A/C system, Fuel system, Steering, Brake system, Electrical components. If problems are determined, ↓ rectify the problems. |
|
| 6 | Check visible lines and hoses in engine compartment for good condition, fluid loss, correct routing and secure attachment. | Swiveling inspection mirror with lighting, |
|
| comparable to inspection mirror Hazet 1977-1 Exhaust system, Cooling system, Heater and A/C system, Fuel system, Steering, Brake system, Electrical components. If problems are determined, ↓ rectify the problems. |
|||
| 7 | Check visible systems, component parts and body panels, lines and hoses in the engine compartment on vehicle underside for damage, routing, fluid loss, mounting and corrosion. | AP00.20-P-0054D | |
| Install | |||
| 8 | Install engine cover (1). | Model 190 Model 190 with engine 178 with code M032 (Black Series version) |
AP01.10-P-2405-01GT |
| 9 | Install left rear engine compartment trim (3). | ||
| 10 | Install right rear engine compartment trim (2). | ||
| Finishing activity | |||
| 11 | Close hood. | ||
| AR88.40-P-1000RG |
