Remove/Install Roof Lining In Soft Top - AR77.30-P-1013LWR
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4, 238.4
Shown on left side of vehicle
Shown on model 205.4 up to manufacturing date 01.05.2020
Shown on model 205.4 as of manufacturing date 01.05.2020
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| General information on riveting | AH60.00-P-0003-01N | ||
| Remove/install | |||
| 1 | Move soft top to repair position R3. | AR77.30-P-1030LWR | |
| 2 | Remove paneling from soft top at front. | AR77.31-P-1010LWR | |
| 3 | Remove dome lamp. | Model 238.4 | |

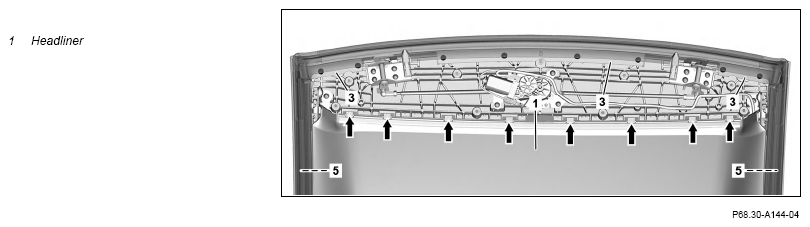

| 4 | Unhook roof lining (1) at front from hooks (arrows). | ||

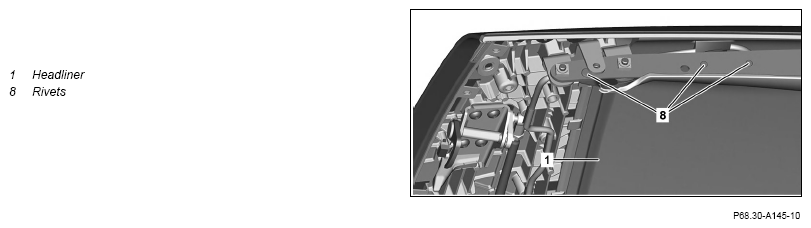

| 5 | Knock off rivets (8) on left and remove left tensioning cables of the roof lining (1) from soft top frame. | riveter |
AR77.33-P-2502-01LWR |

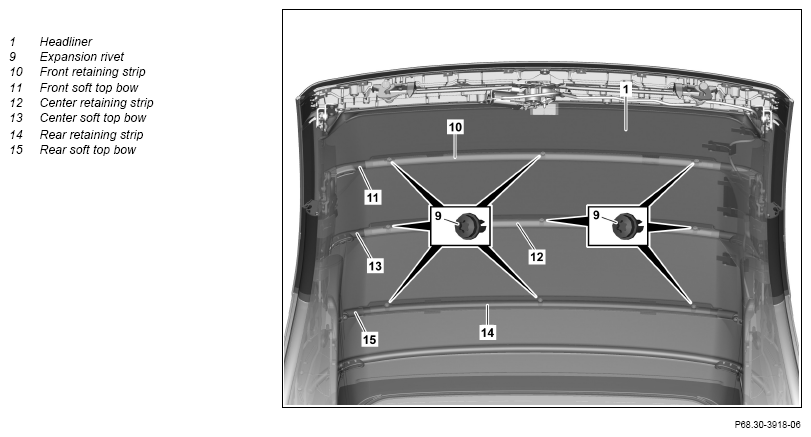

| 6 | Remove expansion rivets (9) on front retaining strip (10) and detach front retaining strip (10) from front soft top bow (11). | Fig 1 | |
| 7 | Remove expansion rivets (9) on center retaining strip (12) and detach center retaining strip (12) from center soft top bow (13). | Fig 1 | |
| 8 | Remove expansion rivets (9) on rear retaining strip (14) and detach rear retaining strip (14) from rear soft top bow (15). | Fig 1 | |
| 9 | Move soft top manually to repair position R5. | AR77.30-P-1030LWR | |

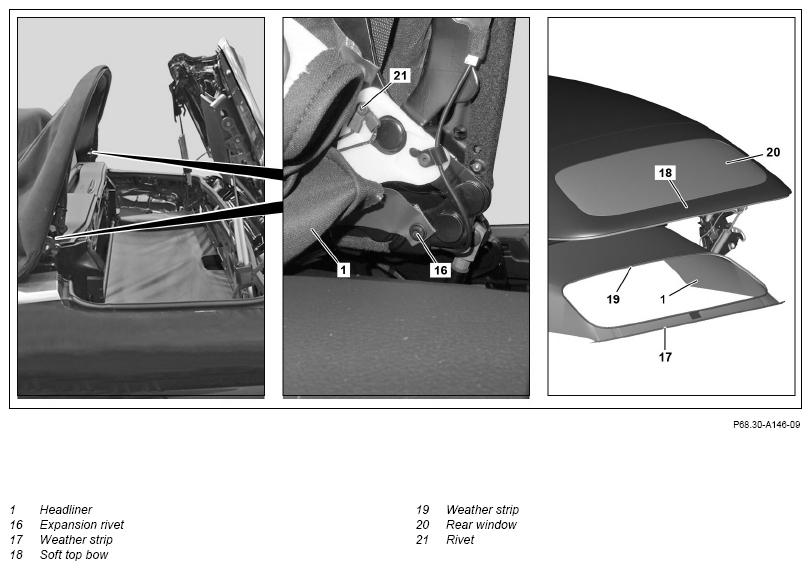

| 10 | Knock off rivet (21) on left and remove rest of rivet. | riveter |
|
| 11.1 | Remove expansion rivet (16) from rear roof lining (1). | Model 205.4 up to 5/1/20, 238.4 up to 5/1/20 |
Fig 1 |

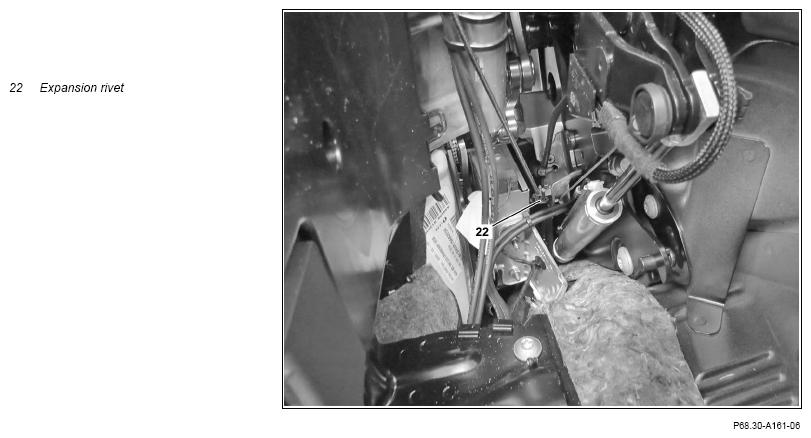

| 11.2 | Remove expansion rivet (22) from soft top frame. | Model 205.4 as of 5/1/20, 238.4 as of 5/1/20 |
Fig 1 |
| 12 | Pull off piping (17) from soft top bow (18). | ||
| 13 | Pull off piping (19) from rear window (20). | ||
| 14 | Move soft top to repair position R3. | AR77.30-P-1030LWR | |
| 15 | Place roof lining (1) on right side of vehicle and fix in place. | ||
| 16 | Install in the reverse order. |
