Remove Roof Lining Tensioning Cable From Soft Top Frame - AR77.33-P-2502-01LWR

WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 205.4, 238.4

		Move soft top to repair position	AR77.30-P-1030LWR
		Move soft top to repair position	AR77.30-P-1030LWR

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Removal described at left side of vehicle, assembled vehicle side thus serves as reference for installation.

Courtesy of MERCEDES-BENZ USA

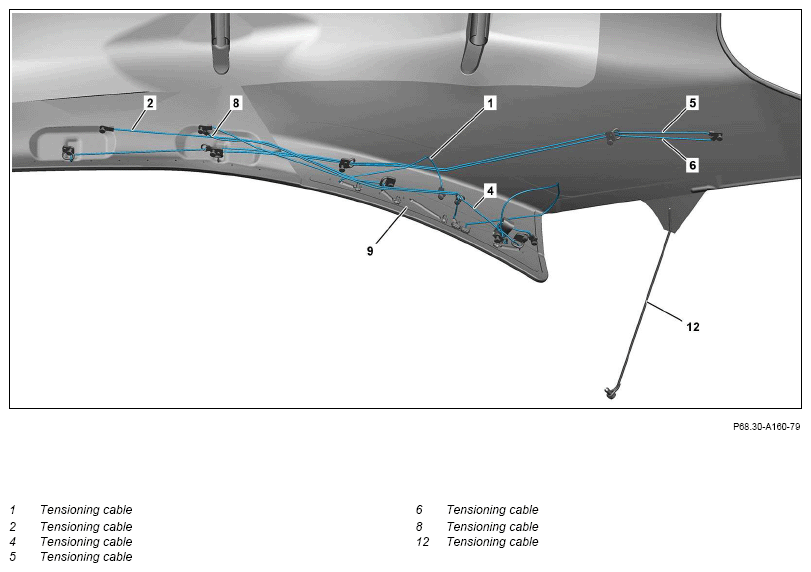

Overview, shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

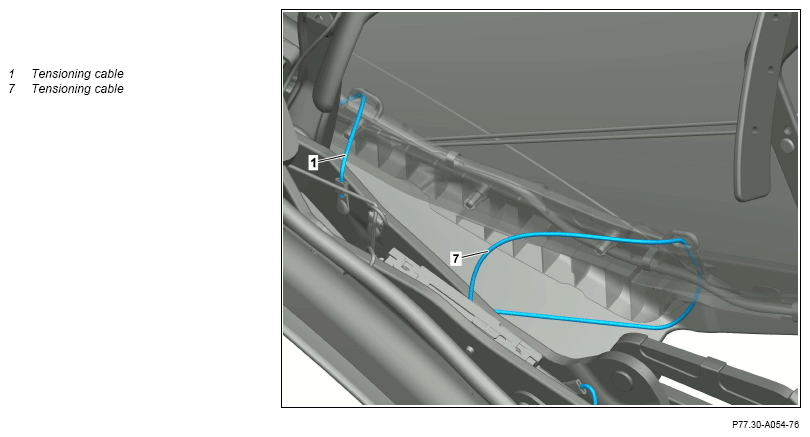

Overview, shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

Move soft top to repair position R3.
Knock off respective rivet (1b, 2b, 4b, 7b) and remove rest of rivet.
Guide respective tensioning cable (1, 2, 3, 4, 7, 8) out through eyelets and remove from soft top frame.

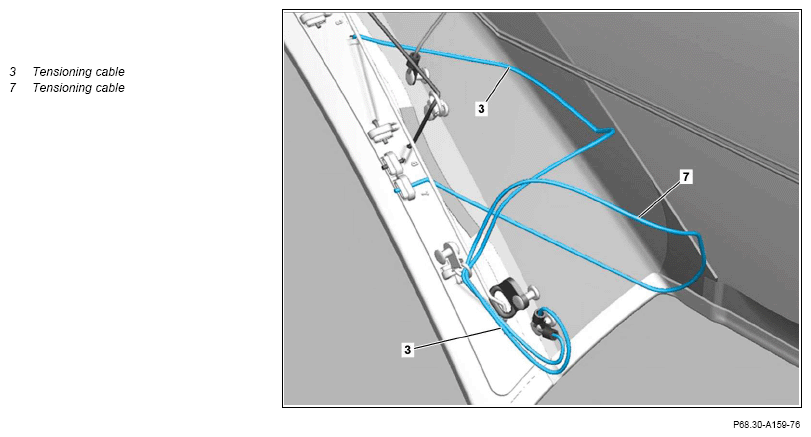

Tensioning cable (3) and tensioning cable (7) are fastened together at rivet (7b).

Tensioning cables (4, 8) are fastened together at rivet (4b).

If necessary, mark routing of tensioning cables (1, 2, 3, 4, 7, 8).

Courtesy of MERCEDES-BENZ USA
Move soft top to repair position R5.
Remove expansion rivet (13).
Knock off rivet (5b) and remove rivet residues.
Tensioning cables (5, 6) are fastened together at rivet (5b).
Guide tensioning cables (5, 6) out of eyelets and remove from soft top frame.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA
Remove expansion rivet (11).
Remove tensioning cable (12) from soft top frame.
