Remove/Install Headliner On Front Soft Top - AR77.31-P-1010LWR

WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 205.4, 238.4

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects.	AS91.00-Z-0003-01LCA
	Remove/install
1	Move soft top to repair position R3.	Completely close soft top.	AR77.30-P-1030LWR
2	Cover both rear fenders.

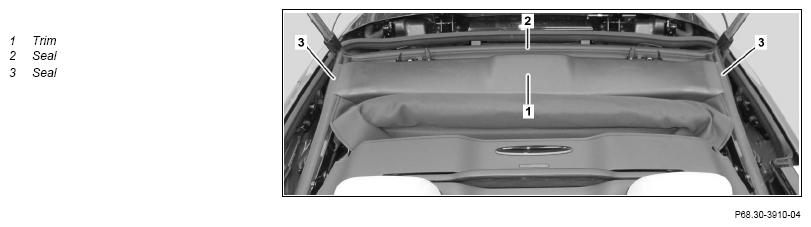

3	Unclip and remove trim (1).	Ensure that front seal (2) and outer seals (3) are seated properly on paneling (1).
4	Install in the reverse order.
