Remove/Install PARKTRONIC System (PTS) Sensors In Front Bumper - AR54.65-P-0001RG
Model 190
With Code 220 (PARKTRONIC system (PTS))

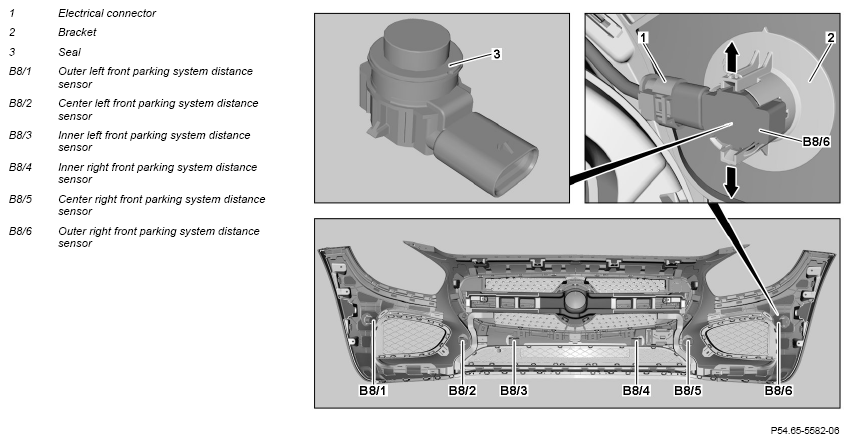

Fig 1: PARKTRONIC System (PTS) Sensors In Front Bumper Components Location - Model 190 With Code 220
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Raise vehicle | AR00.60-P-1000RG | |
| 2 | Remove front bumper | AR88.20-P-2000RG | |
| 3 | Unlock electrical connection (1) at front parking system distance sensors (B8/1-6) and pull off | ||
| 4 | Release retaining lugs (arrows) and remove front parking system distance sensors (B8/1-6) from corresponding brackets (2) | ||
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Perform function test |
