Check Condition Of Battery - AR54.10-P-1129RG

Model 190

Except Code U98 (LITHIUM-ION STARTER BATTERY (LISB))

Courtesy of MERCEDES-BENZ USA

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
Notice	Notes on battery		AH54.10-P-0001-01A
	Check
1	Perform visual inspection for external leakages	In the event of leaks: ↓ Replace on-board electrical system battery (G1).	AR54.10-P-0005RG
2.1	Check fluid level in on-board electrical system battery (G1) and top up with distilled water if necessary	Without service fill level indicator, not with absorbent glass mat battery.
2.2	Check fluid level in on-board electrical system battery (G1)	With service fill level indicator, not with absorbent glass mat battery Check fluid level using service fill level indicator, if color is white then the acid level is too low: ↓ Replace on-board electrical system battery (G1)	AR54.10-P-0005RG

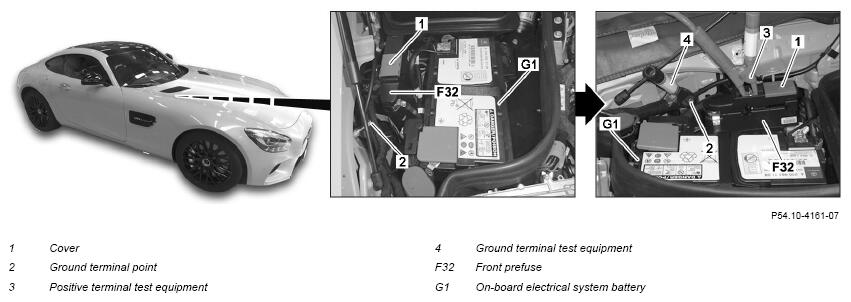

3	Check on-board electrical system battery (G1)
	000 588 27 19 00 Battery test device		WS54.00-P-0117B
		Battery capacity 80 Ah VRLA/AGM	*BE54.10-P-1012-01A
4	Reduce increased voltage after charging process	If the on-board electrical system battery (G1) is disconnected from the on-board electrical system and the message "Surface voltage detected" appears on the display of the battery tester/test equipment.	AR54.10-P-1129-03RG
	000 588 27 19 00 Battery test device	Check the on-board electrical system battery (G1) again after the increased voltage is reduced.	WS54.00-P-0117B
5	Charge on-board electrical system battery (G1)	With the test code "Charge and check" on the battery tester/test equipment.
		Check the on-board electrical system battery (G1) again after charging.	AR54.10-P-1130RG
