Remove/Install Battery - AR54.10-P-0005RG

Model 190

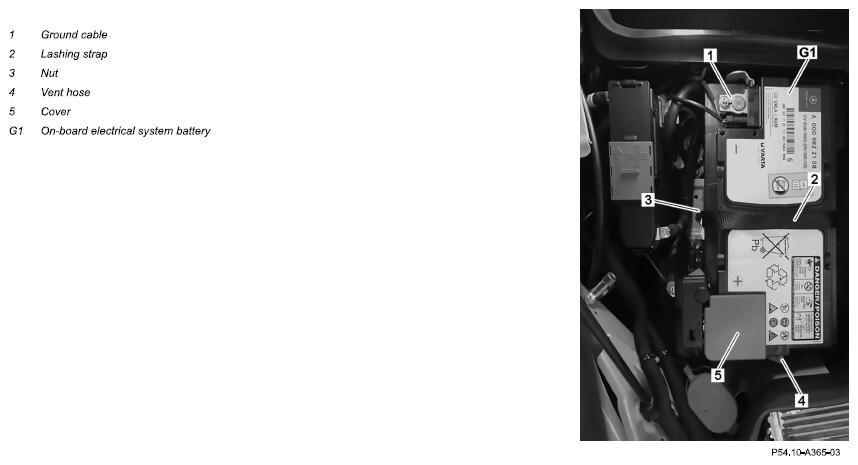

Shown on model 190 Except Code U98 {LITHIUM-ION BATTERY (LISB))

Courtesy of MERCEDES-BENZ USA

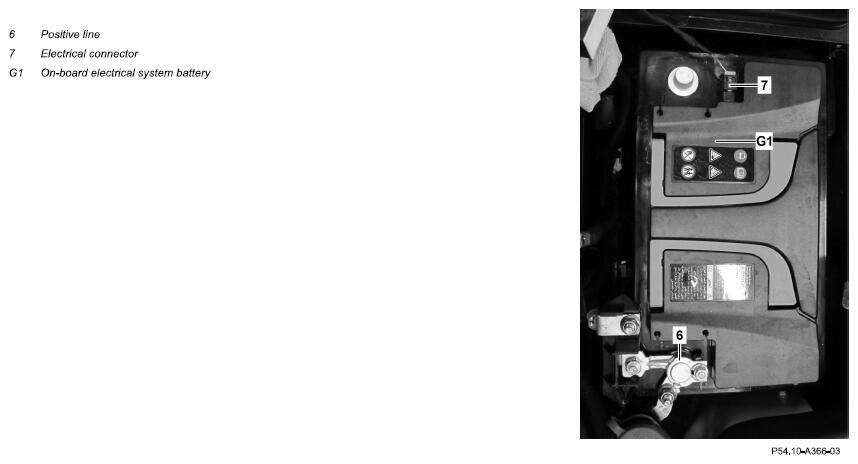

Shown on model 190 With Code U98 (LITHIUM-ION STARTER BATTERY (LISB))

Courtesy of MERCEDES-BENZ USA

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
Topical note	Notes on battery		AH54.10-P-0001-01A
	Notes on HANDS-FREE ACCESS		AHB0.61-P-0001-01A
	Remove/install
1	Print out checklist for transport safety of on-board electrical system battery (G1).	Model 190 with code U98 (LITHIUM-ION STARTER BATTERY (LISS)) When replacing the on-board electrical system battery (G1).
			OF54.10-P-3000-13A
2	Answer questions on checklist regarding transport safety of installed on-board electrical system battery (G1).	Model 190 with code U98 (LITHIUM-ION STARTER BATTERY (LISB)) When replacing the on-board electrical system battery (G1).
3	Release and disconnect electrical connector (7).	Model 190 with code U98 (LITHIUM-ION STARTER BATTERY (LISB))
4	Disconnect ground line (1) from on-board electrical system battery (G1).		AR54.10-P-0003RG
5	Remove nut (3).	Bolt, battery angle bracket to battery frame	*BA54.10-P-1006-01G
6	Place lashing strap (2) with angle bracket to one side.
7	Detach vent hose (4) from on-board electrical system battery (G1).	Model 190 except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) : Check that the vent hose (4) is correctly seated. Otherwise leaking battery vapor may damage the vehicle.
8	Remove cover (5).
9	Disconnect positive line (6) from on-board electrical system battery (G1).	Nut, charging cable to negative terminal/positive terminal of on-board electrical system battery	*BA54.10-P-1005-01G
10	Remove on-board electrical system battery (G1).
11	Install in the reverse order.
12	Answer the questions on the removed on-board electrical system battery (G1) based on the transport safety checklist.	Model 190 with code U98 (LITHIUM-ION STARTER BATTERY (LISB)) When replacing the on-board electrical system battery (G1).
